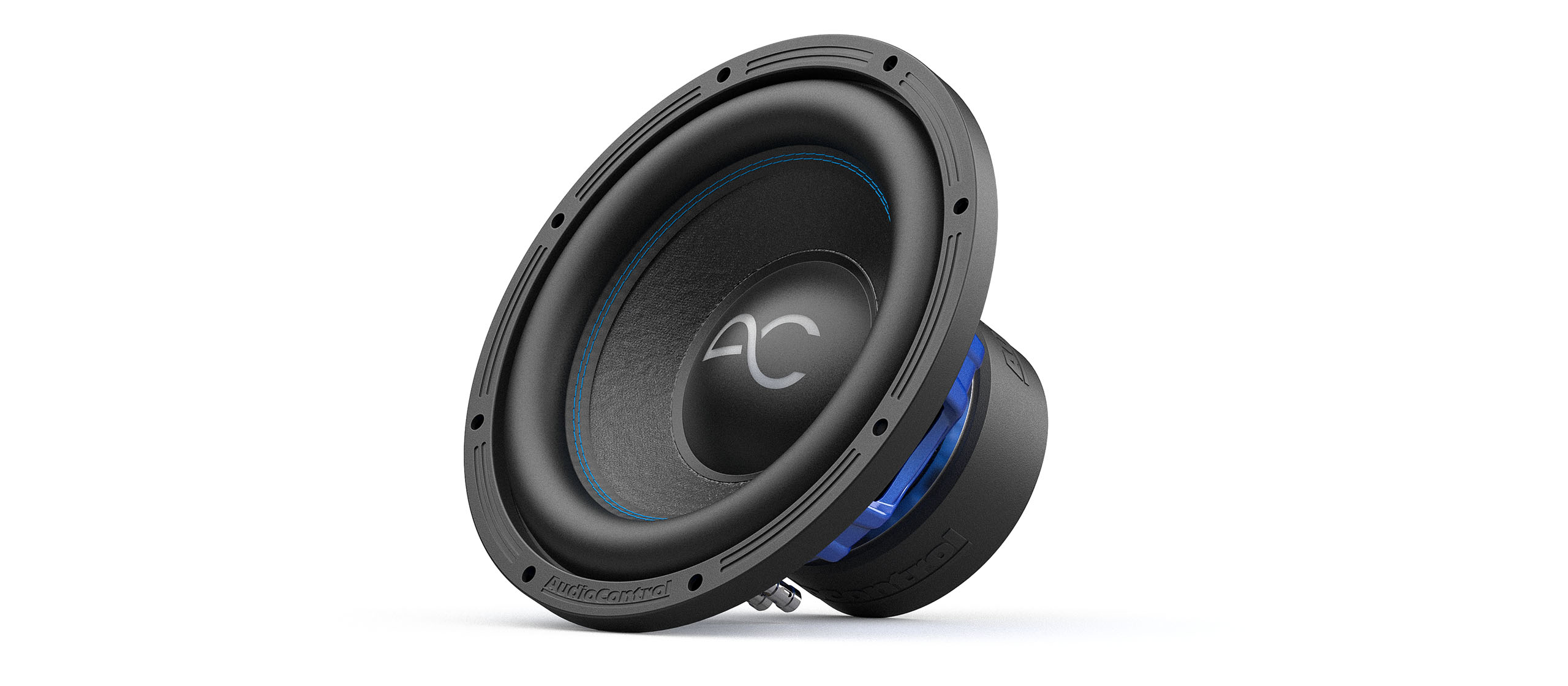

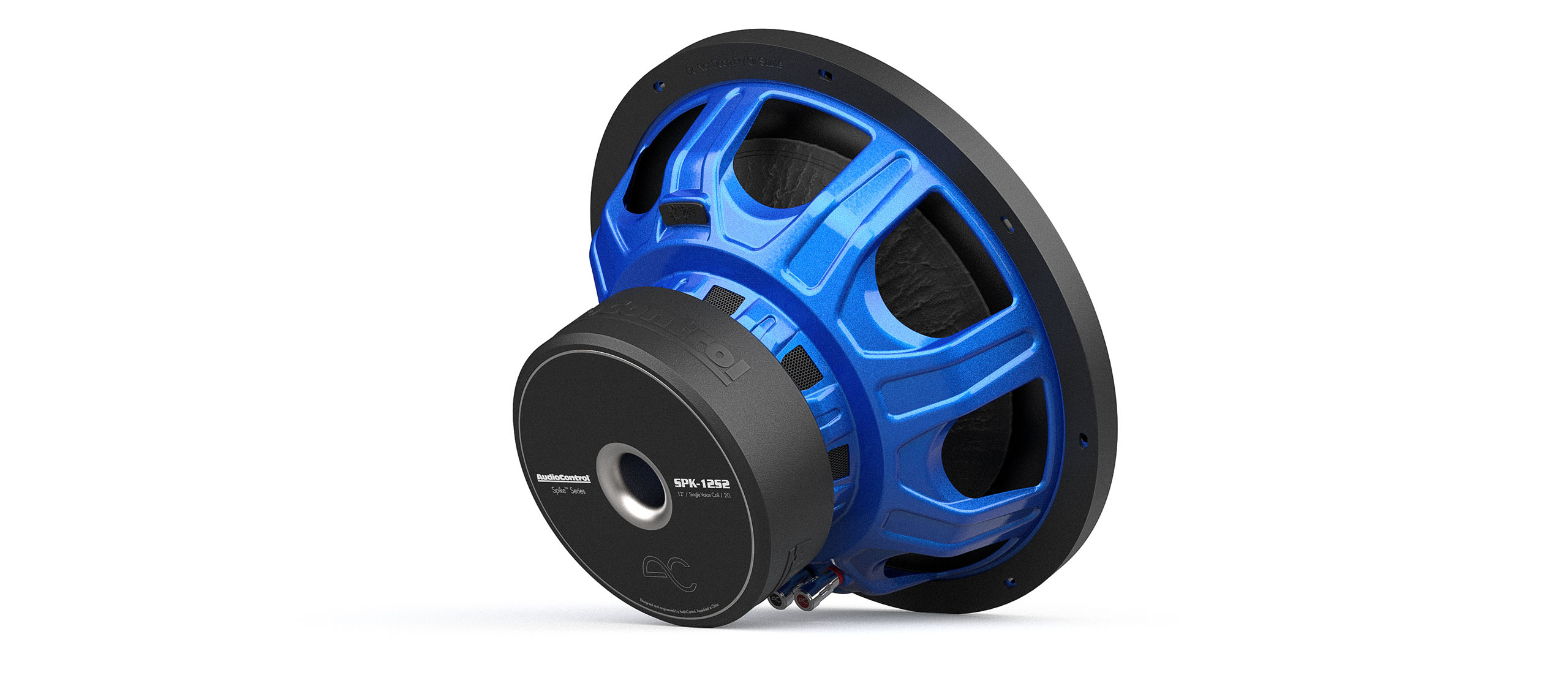

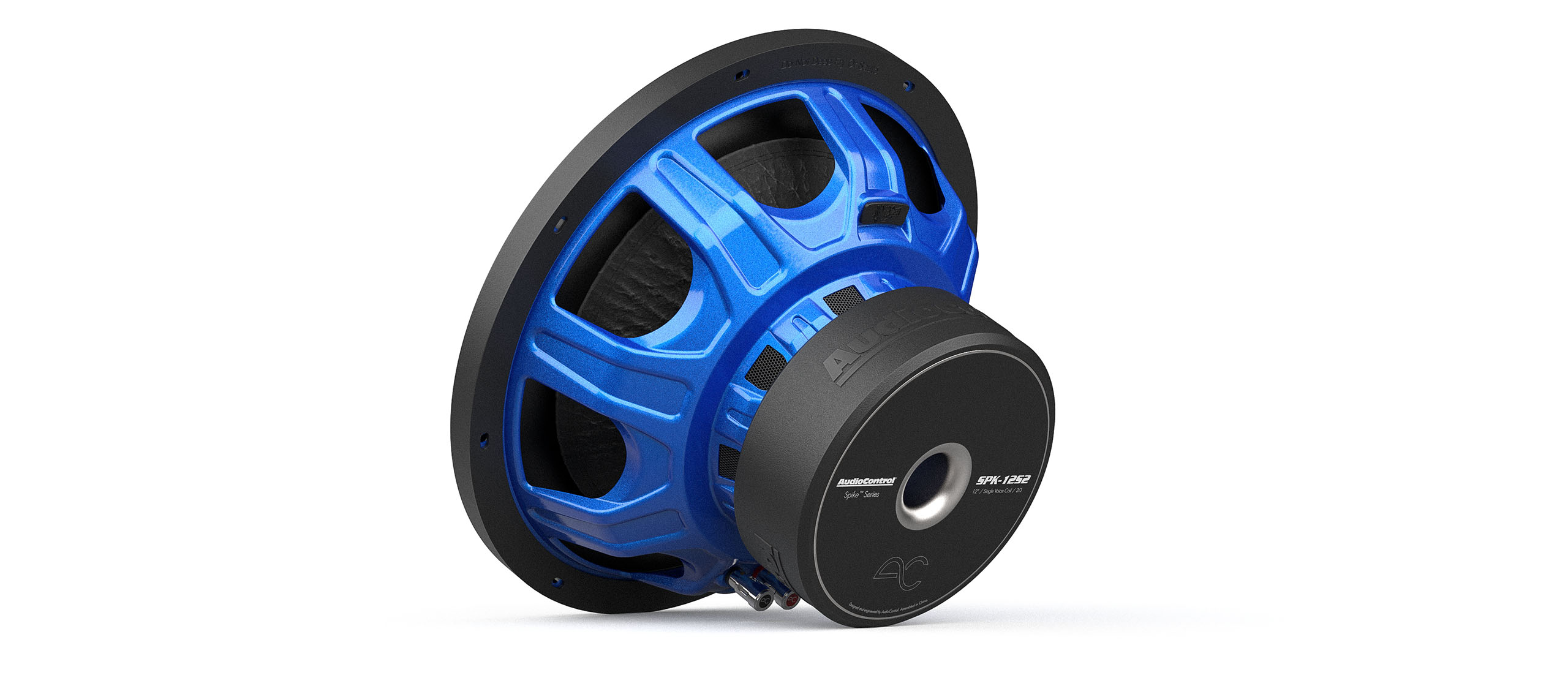

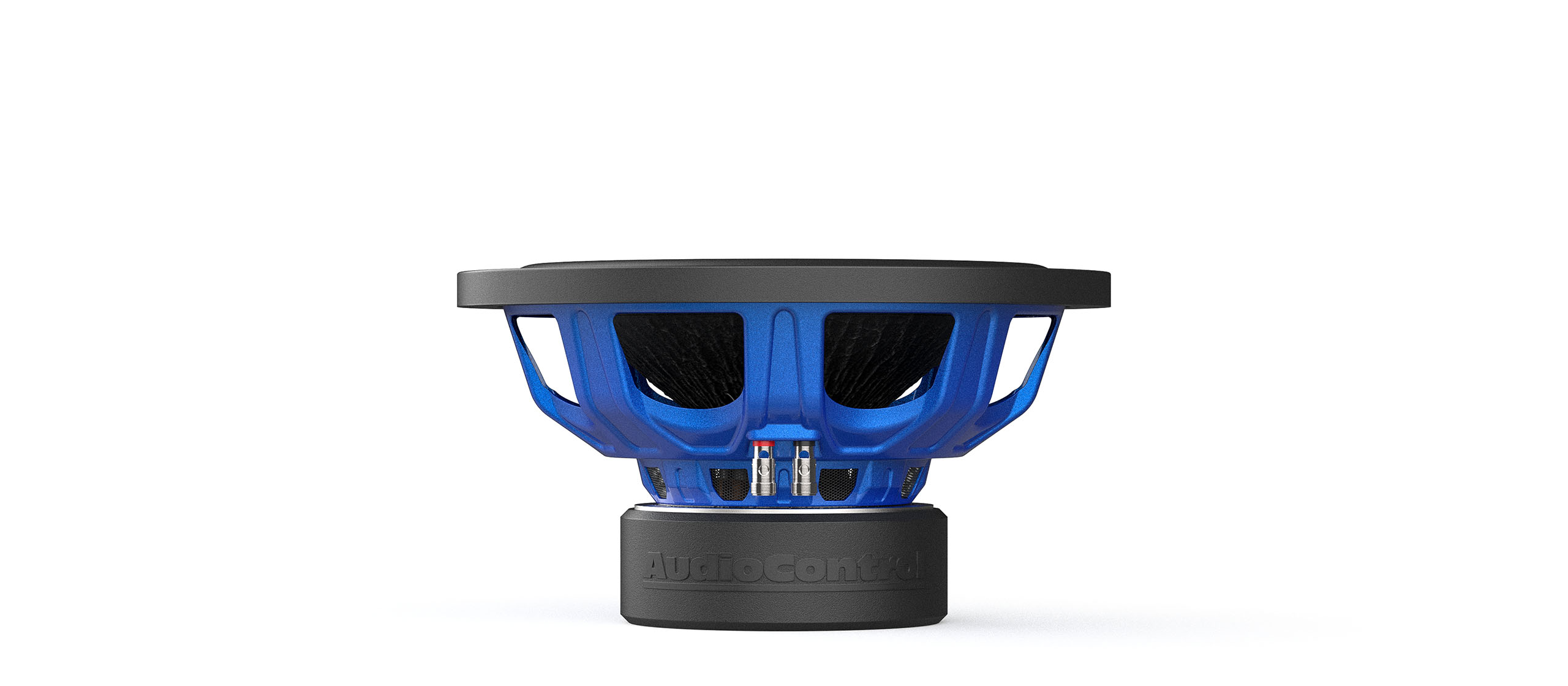

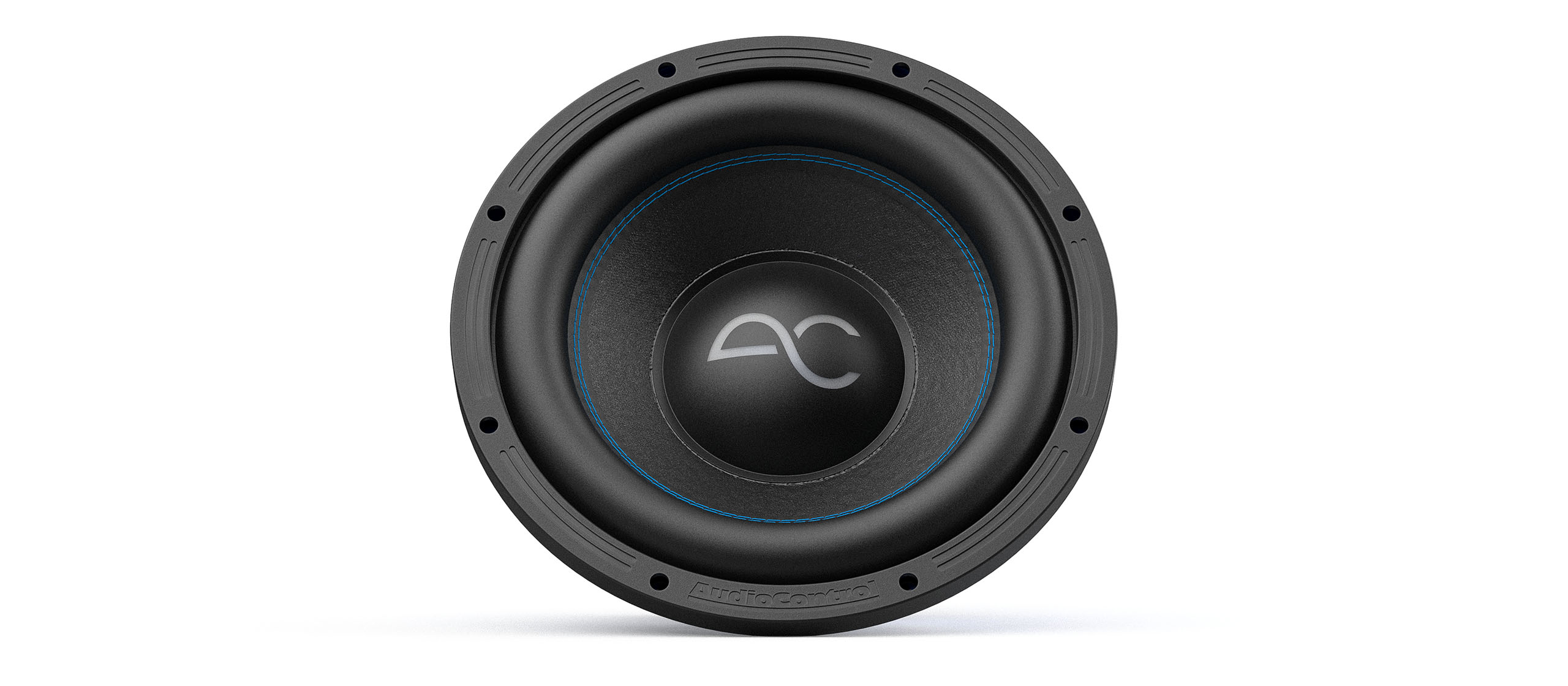

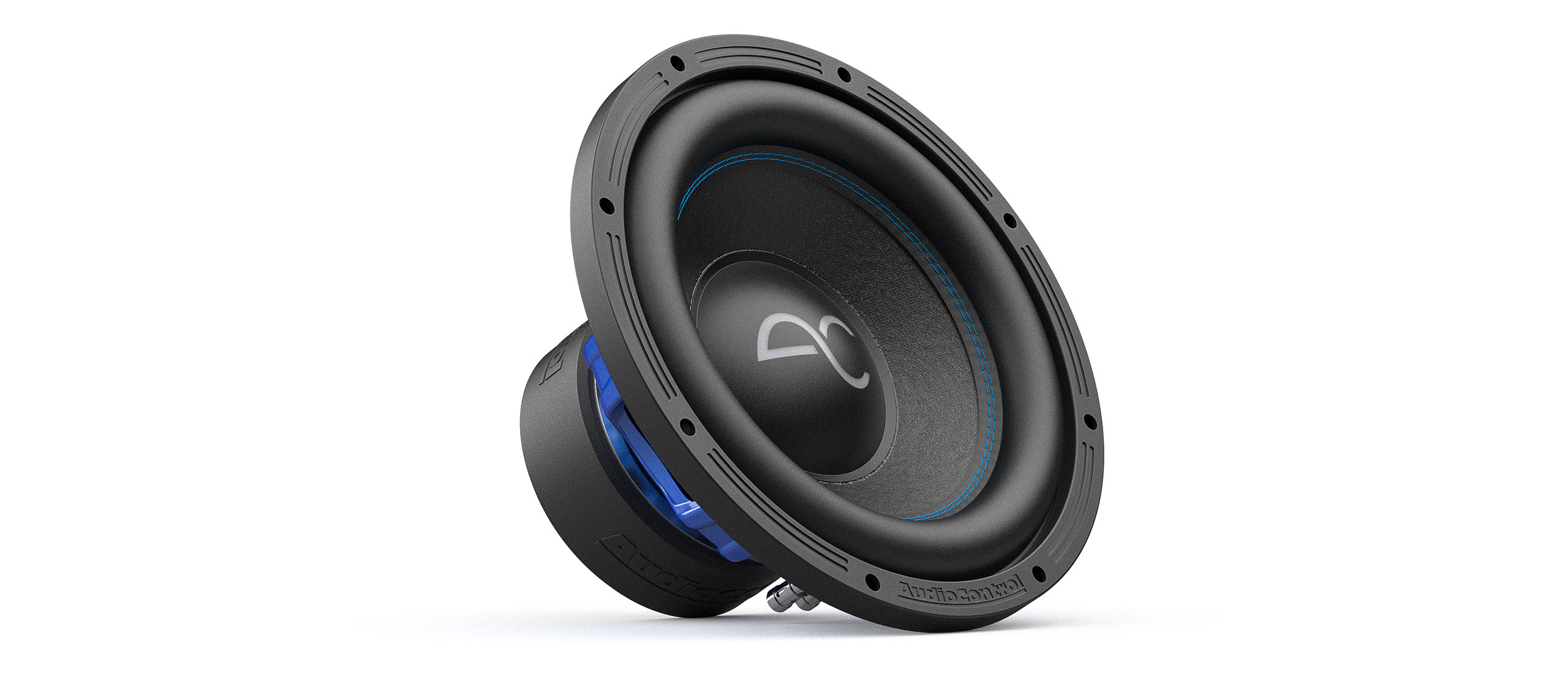

Are you a music fan who loves that low-end rumble? If so, look no further than the Spike Series Subwoofers! For over 45 years, we’ve been helping people take their car audio to the next level – and our latest product line is sure to enhance any vehicle’s sound system. We are proud to present the ultimate in versatility and durability with AudioControl’s Spike Series Subwoofers. These high-performance subwoofers come in a variety of sizes and power ratings to suit your audio needs. No matter what type of music you enjoy, Spike will take your listening experience to the next level. These subwoofers were designed to provide clear, precise bass for an immersive listening experience, so why wait? Load up your trunk with Spike Series Subwoofers today, and crank up your listening pleasure!
Spike Series Subwoofers feature a 3-layer voice coil former to handle some serious power. That means you can turn up the volume and still enjoy heart-pounding bass that’s free from distortion. You won’t believe the sound produced by the fiber matrix paper cone with mica coating – it’s like having a concert in your vehicle! Each Spike subwoofer comes with a protective grille to keep it safe from damage, so you can enjoy your journey with peace of mind.
Features:
- High Excursion Design for Ultra Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design

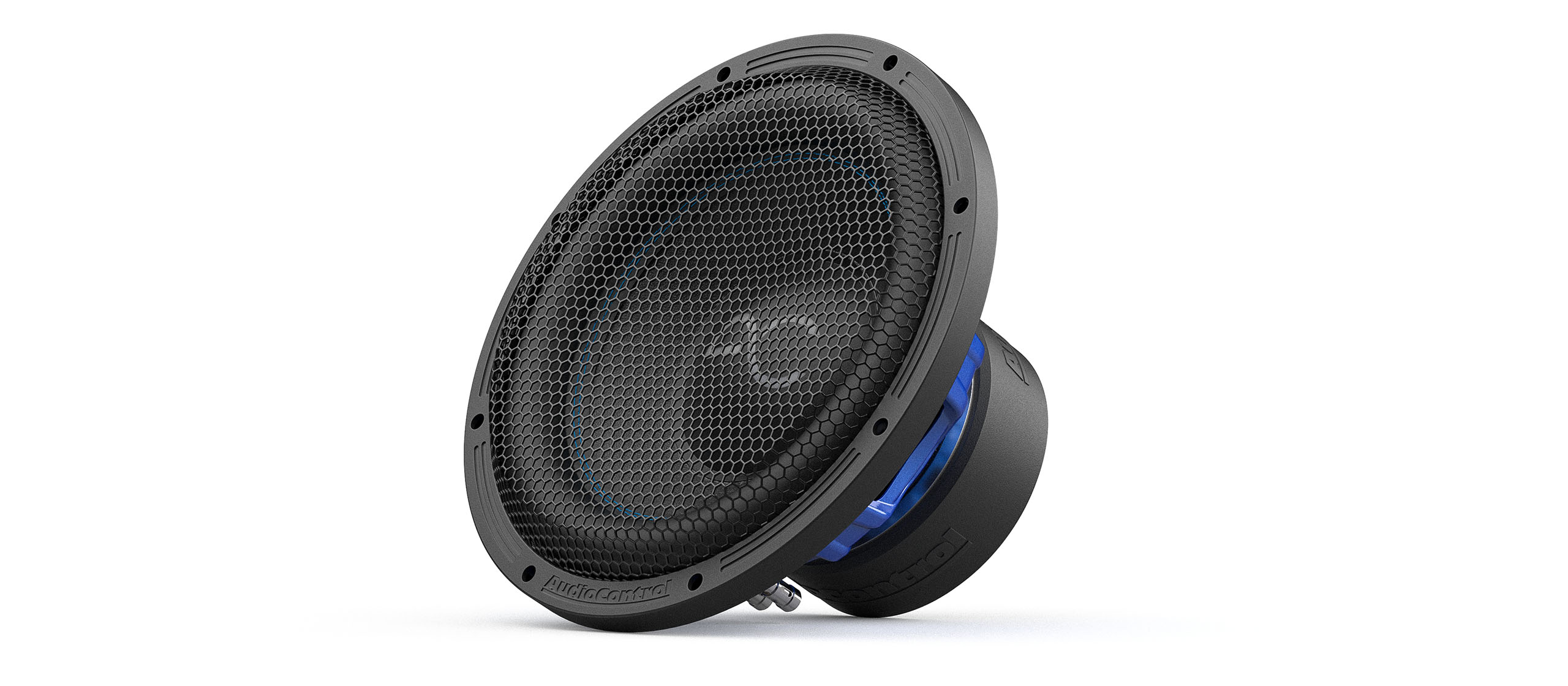

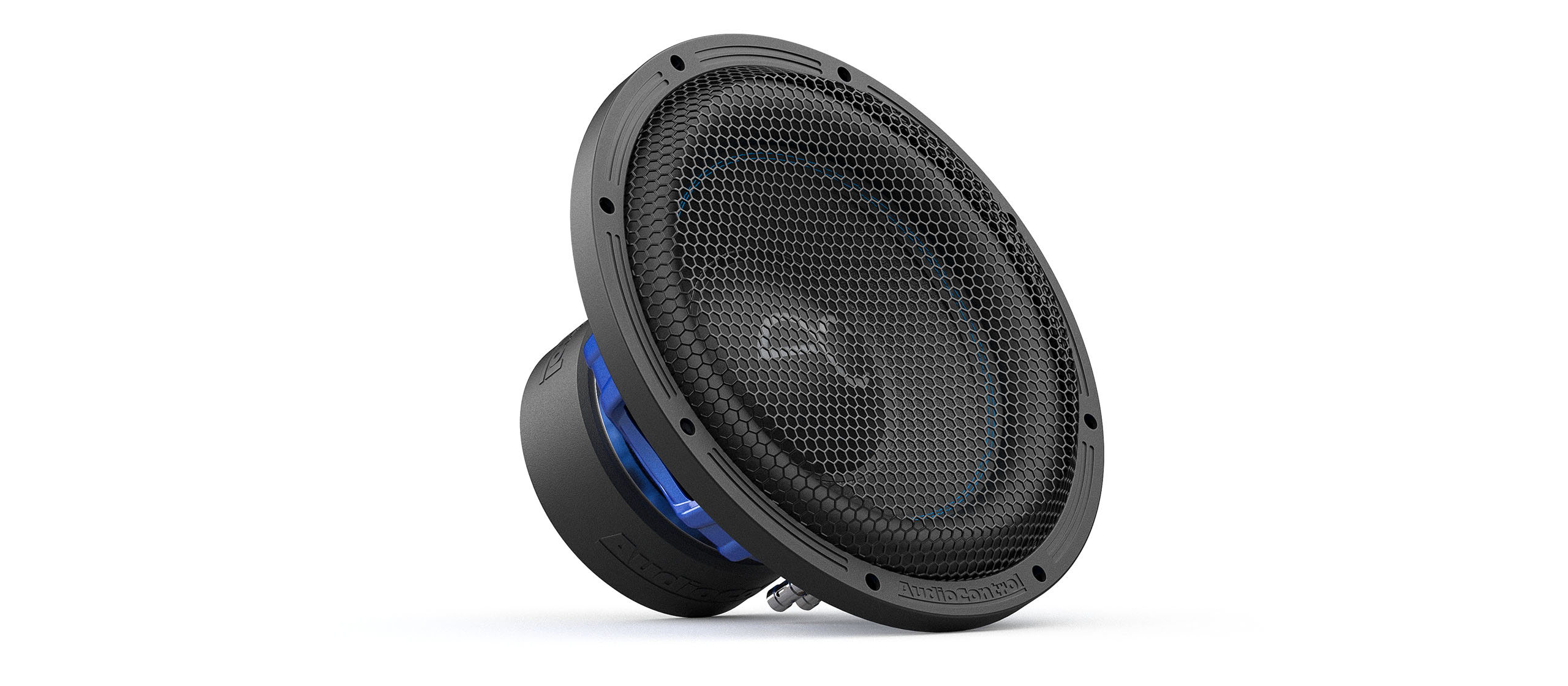

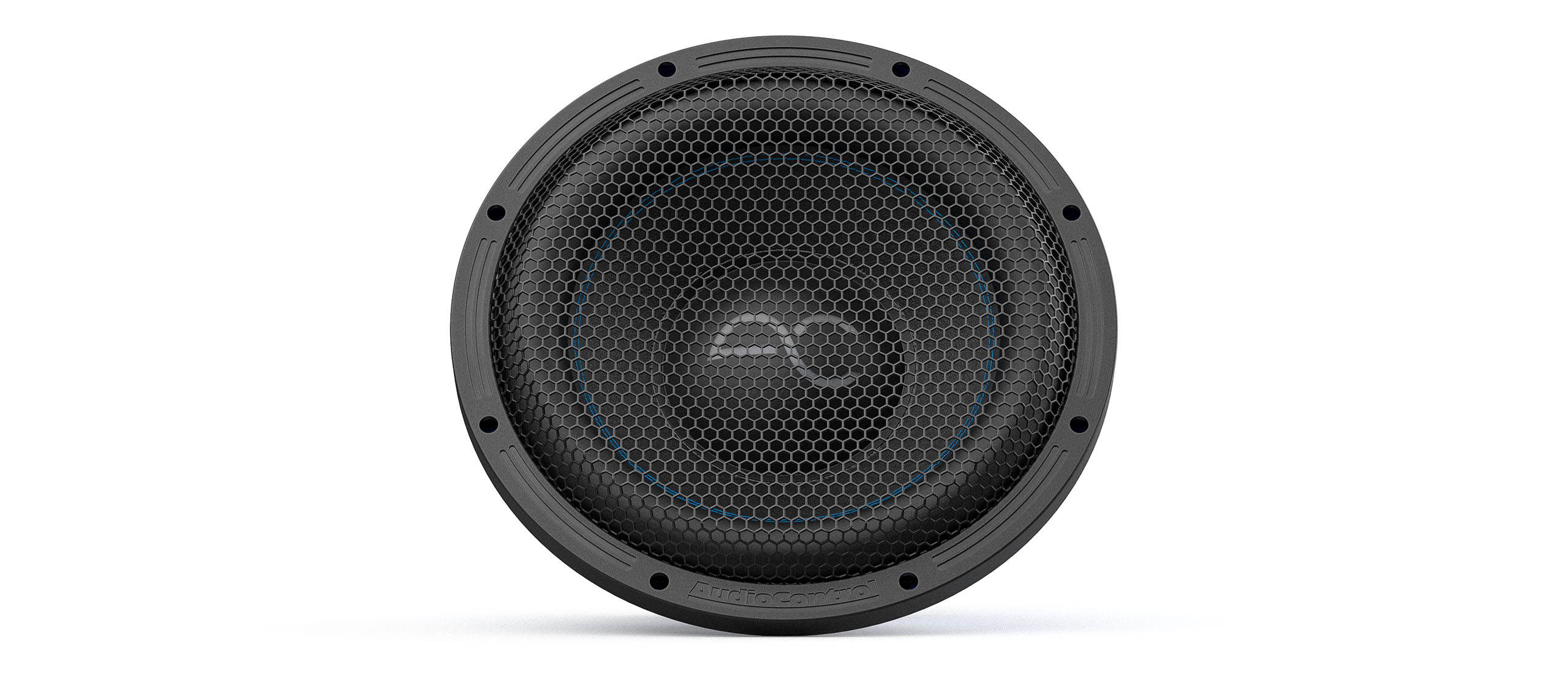

- Removable Subwoofer Grille Included
Our Sonic Sommeliers Recommend the Following: A single Spike Series 2 ohm subwoofer pairs nicely with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener. For more substantial sub bass, seek out the ACX-600.1.
Planning to revel in the plentiful power from our LC-5.1300 or D-5.1300 amplifier? The liberal output delivered by channel 5 is a fantastic fit! Bon appétit!
For system designs utilizing two Spike Series 2 ohm subwoofers, we recommend the LC-1.1500… Tasty!
Seeking even more plentiful punch? Planning to include three or more Spike Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit archive.audiocontrol.com for more system configurations that deliver supreme subsonic satisfaction.
Specs:
| Brand | AudioControl |

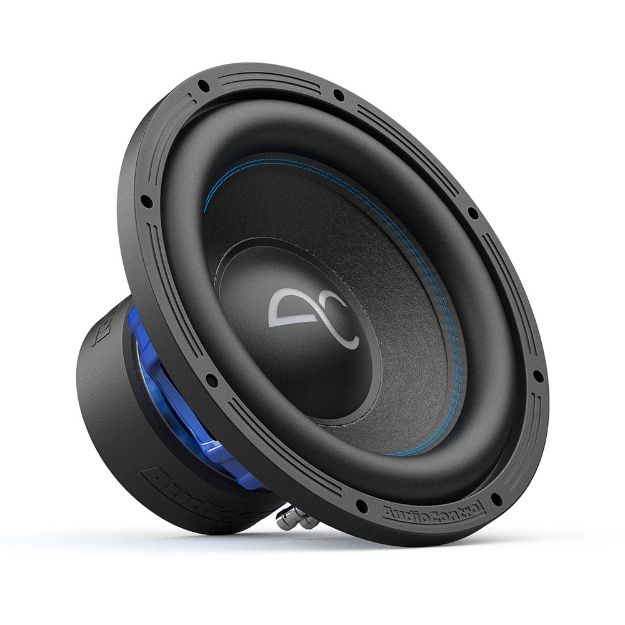

| Model | SPK-12S2 |
| Product Type | 12" Single Voice Coil Subwoofer |
| Nominal Impedance (Z) | 2 Ohms |
| Power Handling (RMS) | 500 Watts |
| Frequency Response | 20-200 Hz |
| Sensitivity (1W/1M) | 84.62 dB |
| Voice Coil Diameter | 2.5 in. (63.5 mm) |
| Linear Excursion (Xmax) | 14 mm |
| Resonance Frequency (Fs) | 37.346 Hz |
| DC Resistance (Re) | 1.6 Ohms |
| Total Q (Qts) | 0.6718 |
| Mechanical Q (Qms) | 7.6824 |
| Electrical Q (Qes) | 0.7362 |
| Piston Area (Sd) | 0.0491 m² |
| Force Factor (BL) | 11.0117 T·m |
| Moving Mass (Mms) | 237.7651 g |
| Mechanical Compliance (Cms) | 0.0764 mm/N |
| Equivalent Compliance Volume (Vas) | 25.7006 L / 0.9076 cu. ft. |
| Reference Efficiency (No) | 0.1011% |
| Displacement | 0.0885 cu. ft. / 2.506 L |
| Overall Diameter | 12.76 in. (324 mm) |
| Cutout Diameter | 11.125 in. (282 mm) |
| Mounting Depth | 6.14 in. (156 mm) |
| Mounting Height (Without Grille) | 0.68 in. (17.3 mm) |
| Mounting Height (With Grille) | 1.437 in. (36.5 mm) |
| Motor Diameter (With Cover) | 6.41 in. (163 mm) |
| Included Accessories | Removable Grille, Owner's Manual, Warranty |
| Recommended Sealed Enclosure | 1.0 cu. ft. |
| Recommended Ported Enclosure | 1.77 cu. ft. Net Volume |
