Manufacturer: Kenwood

DMX1058XR

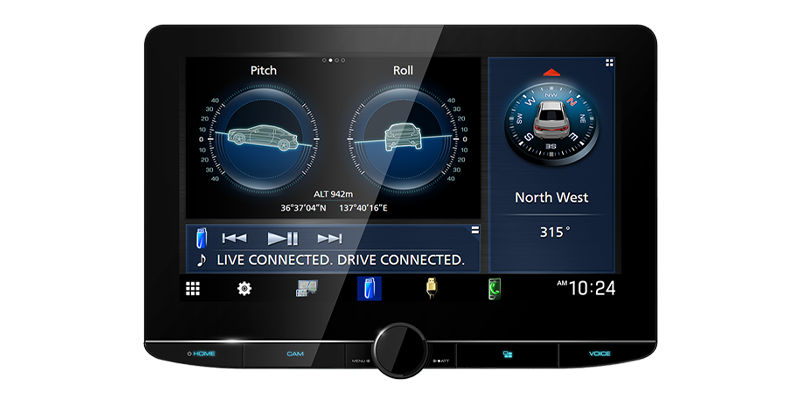

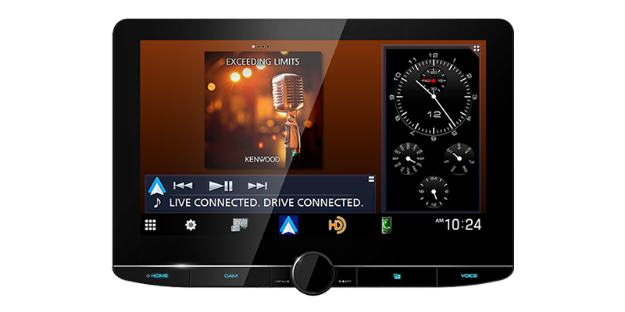

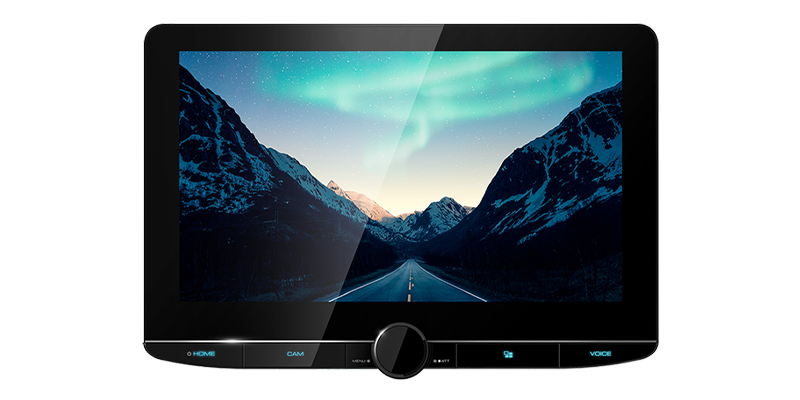

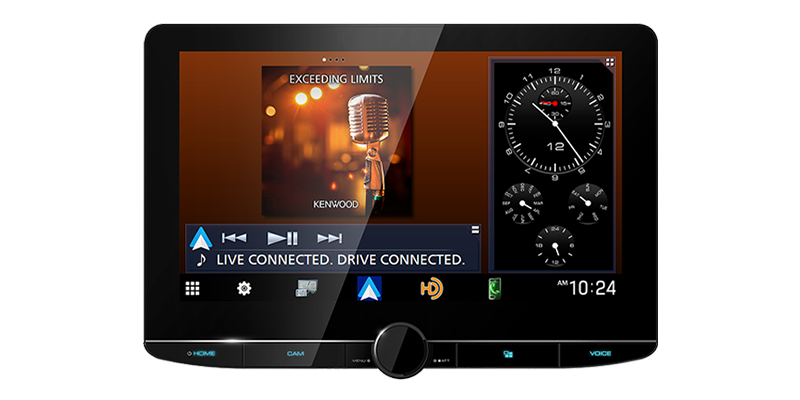

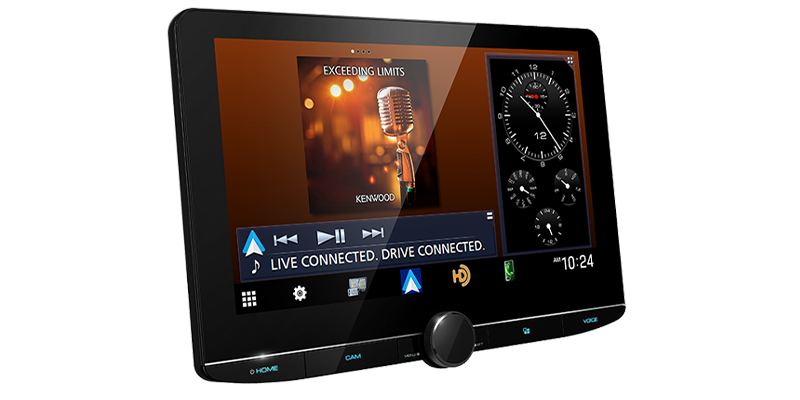

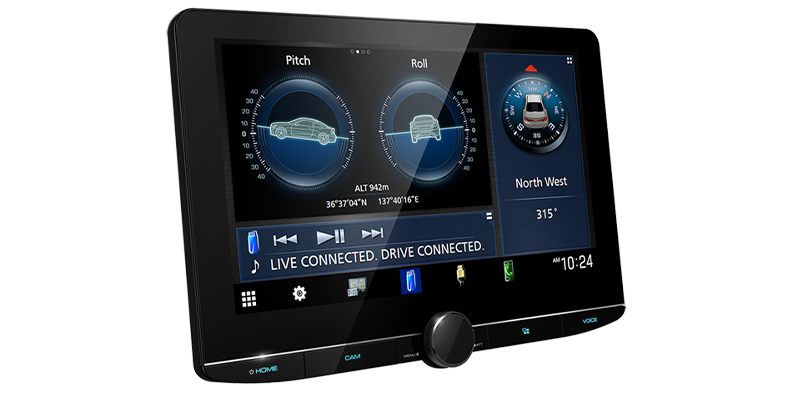

Kenwood Excelon Reference DMX1058XR – 10.1" Wireless CarPlay & Android Auto Digital Multimedia Receiver

· 10.1" HD capacitive touchscreen with floating panel design
· Wireless Apple CarPlay® & Android Auto™ compatibility
· High-resolution audio support with LDAC & DSP tuning
· Built-in Bluetooth® with dual phone connection
· 4-camera inputs with HD rear camera compatibility

SKU: DMX1058XR

Compare at $1,649.95

Save $100

Sale: $1,549.95 Or Less!

Available In Store OnlyAdditional discounts based on product condition

Overview
Specifications
Reviews

The Kenwood Excelon Reference DMX1058XR digital multimedia receiver is designed for premium in-vehicle entertainment with a large 10.1" HD floating touchscreen and advanced audio tuning. Built with a TFT active matrix LCD display, hi-res audio support, and powerful DSP controls, it delivers sharp visuals and detailed sound performance. Featuring wireless connectivity, Bluetooth® 5.2, HDMI input, and broad media playback compatibility, this model provides flexible integration for modern vehicles. With Apple CarPlay®, Android Auto™, camera compatibility, and advanced crossover controls, it offers high-end convenience for custom car audio systems.

Features:

10.1" HD Floating Touchscreen: Large 1280 x 720 capacitive display delivers sharp image quality and responsive control.
Hi-Res Audio Support: Compatible with high-resolution audio formats and LDAC for detailed wireless sound performance.
Advanced DSP Tuning: Includes 13-band EQ, 2-way and 3-way crossover settings, and time alignment controls.
Broad Media Compatibility: Supports MP3, WMA, AAC, WAV, FLAC, Vorbis, MPEG1/2, MPEG4, WMV, H.264, and MKV playback.
Bluetooth® 5.2 Connectivity: Enables hands-free calling, audio streaming, phonebook access, and multi-profile support.

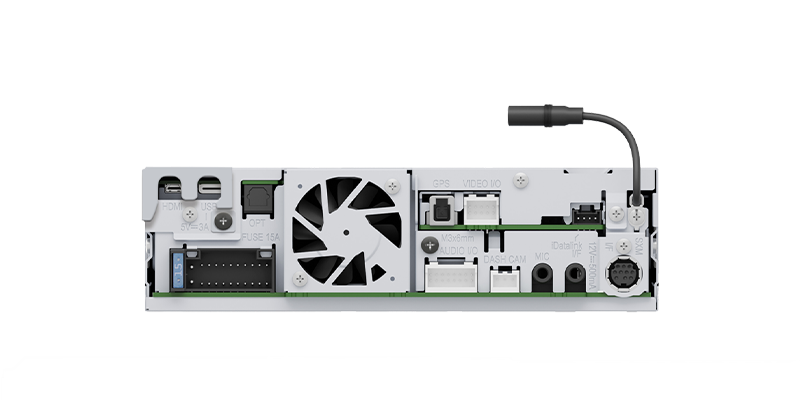

Flexible System Integration: Features USB-C, HDMI input, optical digital audio out, and 5V preouts for premium installations.

Specs:

Brand	Kenwood
Model	DMX1058XR
Product Type	Digital Multimedia Receiver
Screen Size	10.1" diagonal wide
Display Resolution	1280 x 720 x RGB (2,764,800 pixels)
Display System	LCD panel, TFT active matrix system with LED backlighting
Effective Pixels	99.99%
USB Interface	USB Type-C, USB 2.0 High Speed
Supported File Systems	FAT16/32, exFAT, NTFS
Maximum USB Power Supply	DC 5V = 3.0A
D/A Converter	24/32-bit
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder	MPEG1/2, MPEG4, WMV, H.264, MKV
Frequency Response	20Hz - 88,000Hz (depending on sampling rate)
Total Harmonic Distortion	0.01% at 1kHz
Signal-to-Noise Ratio	98.5dB
Dynamic Range	89dB
Wireless Mirroring	Sink mode with HDCP2.2 and UIBC touch control
Wi-Fi	802.11 a/b/g/n/ac, dual band 2.4GHz / 5GHz
Bluetooth Version	Bluetooth® 5.2
Bluetooth Range	Approx. 10m (32.8 ft) line of sight
Bluetooth Codecs	SBC / AAC / LDAC
Bluetooth Profiles	HFP, SPP, A2DP, AVRCP, PBAP
HDMI	Type-D input
DSP Equalizer	13-band graphic equalizer
Crossover Control	2-way and 3-way crossover settings
Time Alignment	Front / Rear / Subwoofer delay: 0 - 20.01 ft
Subwoofer Level	-50 to +10dB
FM Tuner Range	87.9MHz - 107.9MHz
AM Tuner Range	530kHz - 1700kHz
Maximum Power Output	50W x 4
Typical Power Output	29W x 4 (4Ω, 1kHz, 10% THD)
Preout Level	5V / 10kOhms
Preout Impedance	≤ 300 Ohms
Speaker Impedance	4 - 8 Ohms
Digital Audio Output	Optical, 48kHz / 96kHz, 24-bit Linear PCM
Operating Voltage	12V DC car battery
Chassis Dimensions (W x H x D)	7" x 2" x 6-1/4"
Monitor Dimensions (W x H x D)	10-5/16" x 7-1/8" x 2-1/16"
Set Weight	5.6 lb
Chassis Weight	2.9 lb
Monitor Weight	2.4 lb
Color	Black

Products specifications

Physical Characteristics
Form Factor	In-dash
DIN Size	Double DIN
Technical Information
Bluetooth	Yes
Built-in Devices	Equalizer
Apple CarPlay	Yes
Android Auto	Yes
Warranty
Limited Warranty	1 Year
Miscellaneous
iPod/iPhone Compatible	Yes
Smartphone Compatibility	Yes
Audio
Channels	4
Audio Formats	MP3, WMA, WAV, AAC, FLAC, Ogg Vorbis, CD-DA
Interfaces/Ports
USB	Yes
Camera Input	Yes
Tuner
Tuner	FM, AM
Satellite Radio	SiriusXM Ready
HD Radio	Yes
Display & Graphics
Screen Type	LED-LCD
Screen Size	10.1"
Touchscreen	Yes
Network & Communication
Wireless LAN	Yes
Video
Video Formats	MPEG-1, MPEG-2, MPEG-4, H.264, MKV

Features:

10.1" HD Floating Touchscreen: Large 1280 x 720 capacitive display delivers sharp image quality and responsive control.
Hi-Res Audio Support: Compatible with high-resolution audio formats and LDAC for detailed wireless sound performance.
Advanced DSP Tuning: Includes 13-band EQ, 2-way and 3-way crossover settings, and time alignment controls.
Broad Media Compatibility: Supports MP3, WMA, AAC, WAV, FLAC, Vorbis, MPEG1/2, MPEG4, WMV, H.264, and MKV playback.
Bluetooth® 5.2 Connectivity: Enables hands-free calling, audio streaming, phonebook access, and multi-profile support.
Flexible System Integration: Features USB-C, HDMI input, optical digital audio out, and 5V preouts for premium installations.

Specs:

Brand	Kenwood
Model	DMX1058XR
Product Type	Digital Multimedia Receiver
Screen Size	10.1" diagonal wide
Display Resolution	1280 x 720 x RGB (2,764,800 pixels)
Display System	LCD panel, TFT active matrix system with LED backlighting
Effective Pixels	99.99%
USB Interface	USB Type-C, USB 2.0 High Speed
Supported File Systems	FAT16/32, exFAT, NTFS
Maximum USB Power Supply	DC 5V = 3.0A
D/A Converter	24/32-bit
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder	MPEG1/2, MPEG4, WMV, H.264, MKV
Frequency Response	20Hz - 88,000Hz (depending on sampling rate)
Total Harmonic Distortion	0.01% at 1kHz
Signal-to-Noise Ratio	98.5dB
Dynamic Range	89dB
Wireless Mirroring	Sink mode with HDCP2.2 and UIBC touch control
Wi-Fi	802.11 a/b/g/n/ac, dual band 2.4GHz / 5GHz
Bluetooth Version	Bluetooth® 5.2
Bluetooth Range	Approx. 10m (32.8 ft) line of sight
Bluetooth Codecs	SBC / AAC / LDAC
Bluetooth Profiles	HFP, SPP, A2DP, AVRCP, PBAP
HDMI	Type-D input
DSP Equalizer	13-band graphic equalizer
Crossover Control	2-way and 3-way crossover settings
Time Alignment	Front / Rear / Subwoofer delay: 0 - 20.01 ft
Subwoofer Level	-50 to +10dB
FM Tuner Range	87.9MHz - 107.9MHz
AM Tuner Range	530kHz - 1700kHz
Maximum Power Output	50W x 4
Typical Power Output	29W x 4 (4Ω, 1kHz, 10% THD)
Preout Level	5V / 10kOhms
Preout Impedance	≤ 300 Ohms
Speaker Impedance	4 - 8 Ohms
Digital Audio Output	Optical, 48kHz / 96kHz, 24-bit Linear PCM
Operating Voltage	12V DC car battery
Chassis Dimensions (W x H x D)	7" x 2" x 6-1/4"
Monitor Dimensions (W x H x D)	10-5/16" x 7-1/8" x 2-1/16"
Set Weight	5.6 lb
Chassis Weight	2.9 lb
Monitor Weight	2.4 lb
Color	Black

Products specifications

Physical Characteristics
Form Factor	In-dash
DIN Size	Double DIN
Technical Information
Bluetooth	Yes
Built-in Devices	Equalizer
Apple CarPlay	Yes
Android Auto	Yes
Warranty
Limited Warranty	1 Year
Miscellaneous
iPod/iPhone Compatible	Yes
Smartphone Compatibility	Yes
Audio
Channels	4
Audio Formats	MP3, WMA, WAV, AAC, FLAC, Ogg Vorbis, CD-DA
Interfaces/Ports
USB	Yes
Camera Input	Yes
Tuner
Tuner	FM, AM
Satellite Radio	SiriusXM Ready
HD Radio	Yes
Display & Graphics
Screen Type	LED-LCD
Screen Size	10.1"
Touchscreen	Yes
Network & Communication
Wireless LAN	Yes
Video
Video Formats	MPEG-1, MPEG-2, MPEG-4, H.264, MKV
