Features

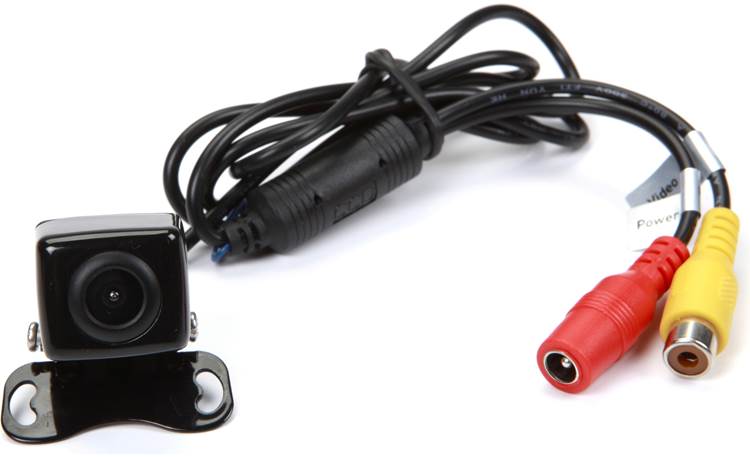

Backup Camera: This rear-view camera can be installed on a variety of vehicles with an in-dash aftermarket video monitor. Your aftermarket in-dash monitor must feature a composite video camera input. The camera allows you to view what's behind your vehicle on your in-dash monitor's screen when you put your vehicle in reverse.
Note: This rear-view camera is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.
CMOS Image Sensor: The rear-view camera employs a CMOS image sensor with a resolution of 640 x 480 (effective pixels). The image sensor also incorporates auto white balance.
Wide View Lens: The rear-view camera features a 170-degree wide view lens to help you see better behind your vehicle.
Low Light Visibility: The rear-view camera provides low-light visibility down to 0.5 lux.
Parking Guidelines: The rear-view camera provides parking guidelines on the screen of your vehicle's in-dash monitor to help you back into a parking space. You can remove the parking guidelines by cutting the blue wire loop of the camera's attached power/video cable.

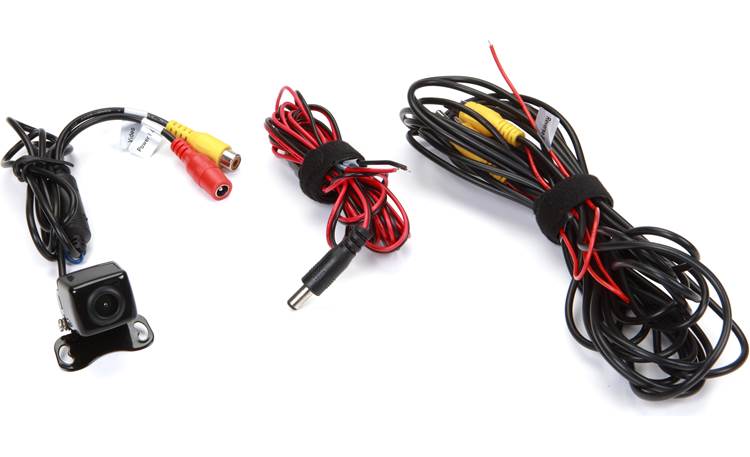

Composite Video: The rear-view camera comes with a 19.75' composite video cable to run from the camera to the composite video camera input of your vehicle's in-dash monitor.
Weather Resistant Housing: The rear-view camera utilizes a weather resistant zinc alloy housing with a IP67 rating.
Mounting Bracket: The rear-view camera comes with a bracket that allows you to mount the camera under a flat surface on the back of your vehicle. Two screws and self-adhesive tape are supplied. The mounting bracket allows you to adjust the angle of the camera up or down. The camera needs to be mounted from underneath the mounting surface with the screw-holes facing up, otherwise image from the camera will not be right side up.
Power Requirements: In addition to connecting the rear-view camera to your in-dash monitor's composite video camera input, you will also need to hardwire power and ground of the camera to your vehicle. Power can be obtained from your vehicle's reverse light circuit or from the reverse gear wire of your aftermarket stereo (if applicable). The ground will need to be connected to your vehicle's metal chassis.
