    Manufacturer: JL Audio

    JL Audio C1-690TX

    7621

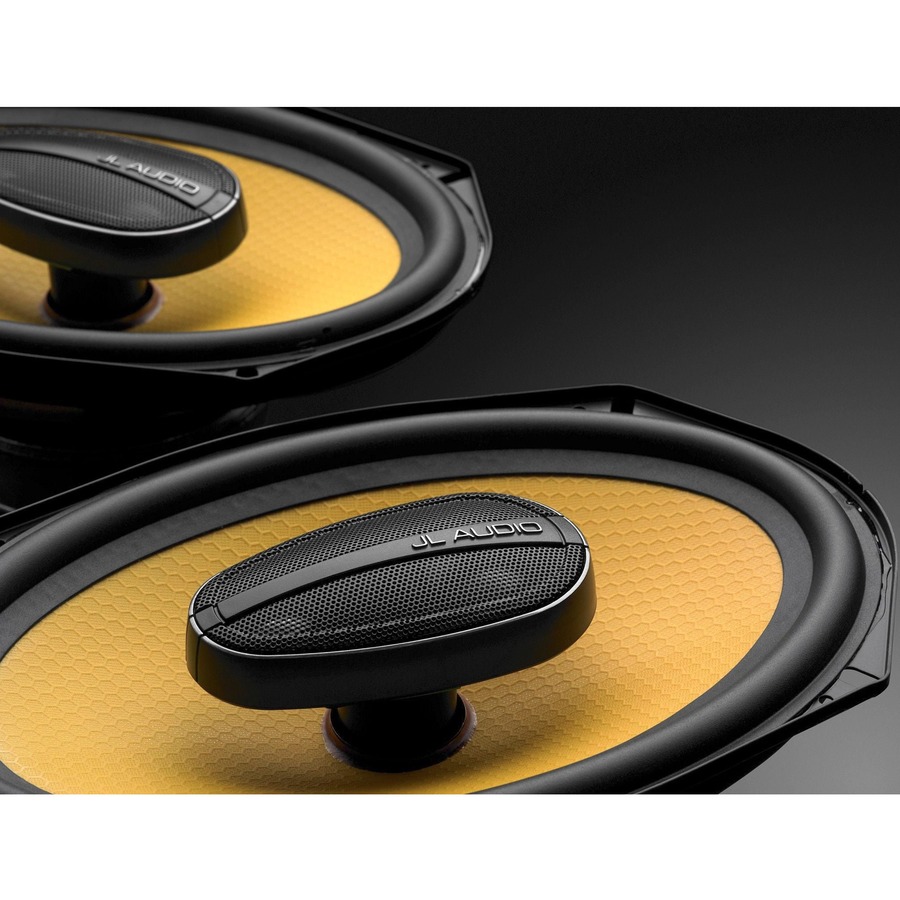

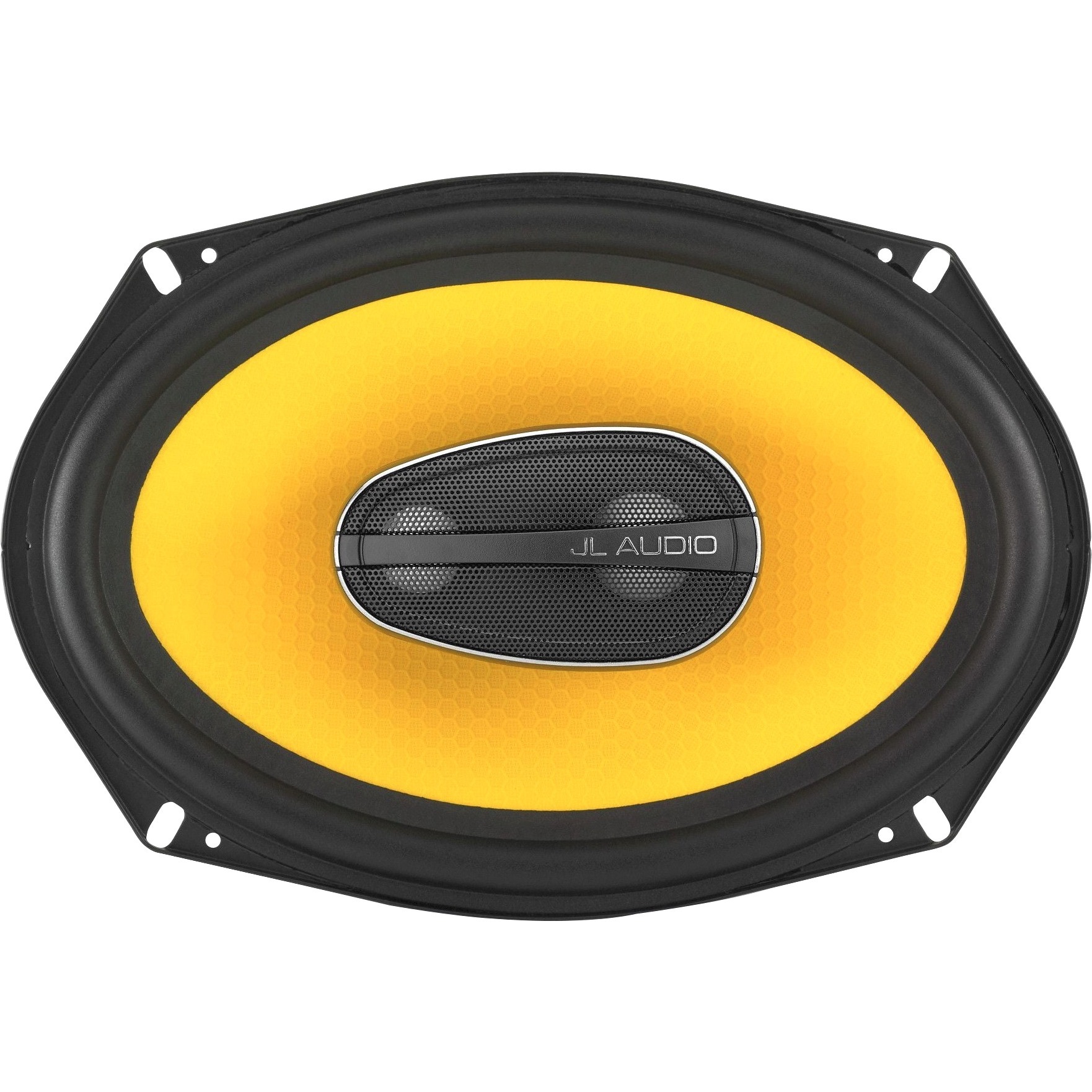

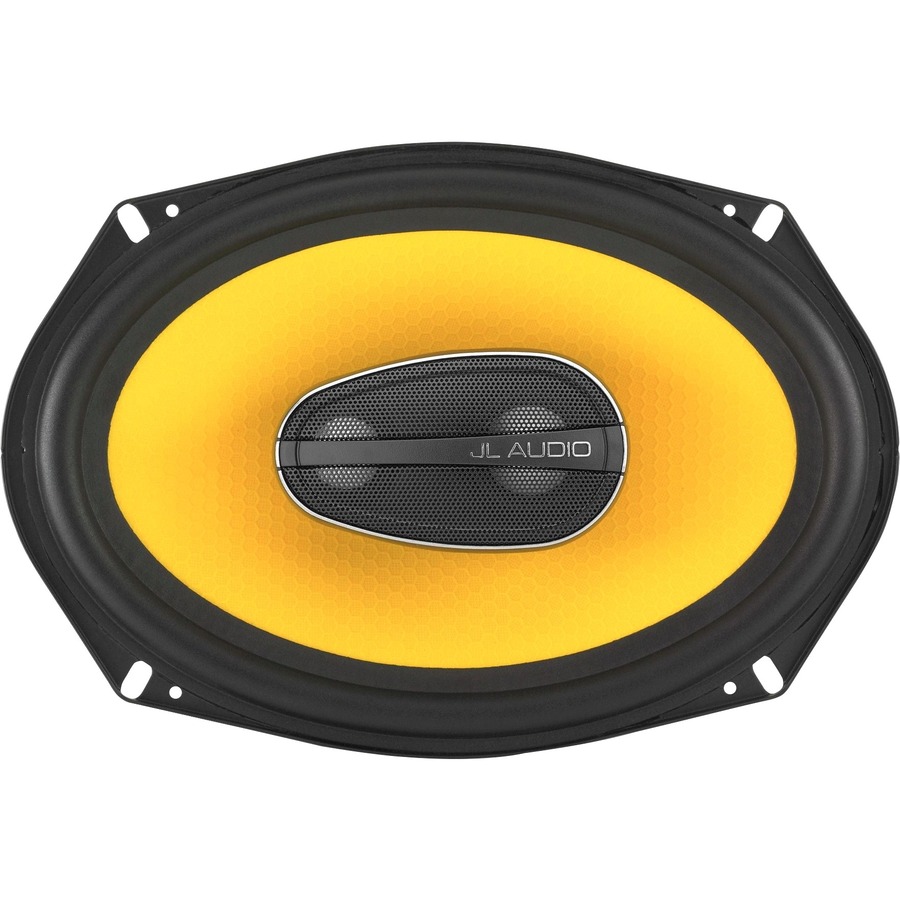

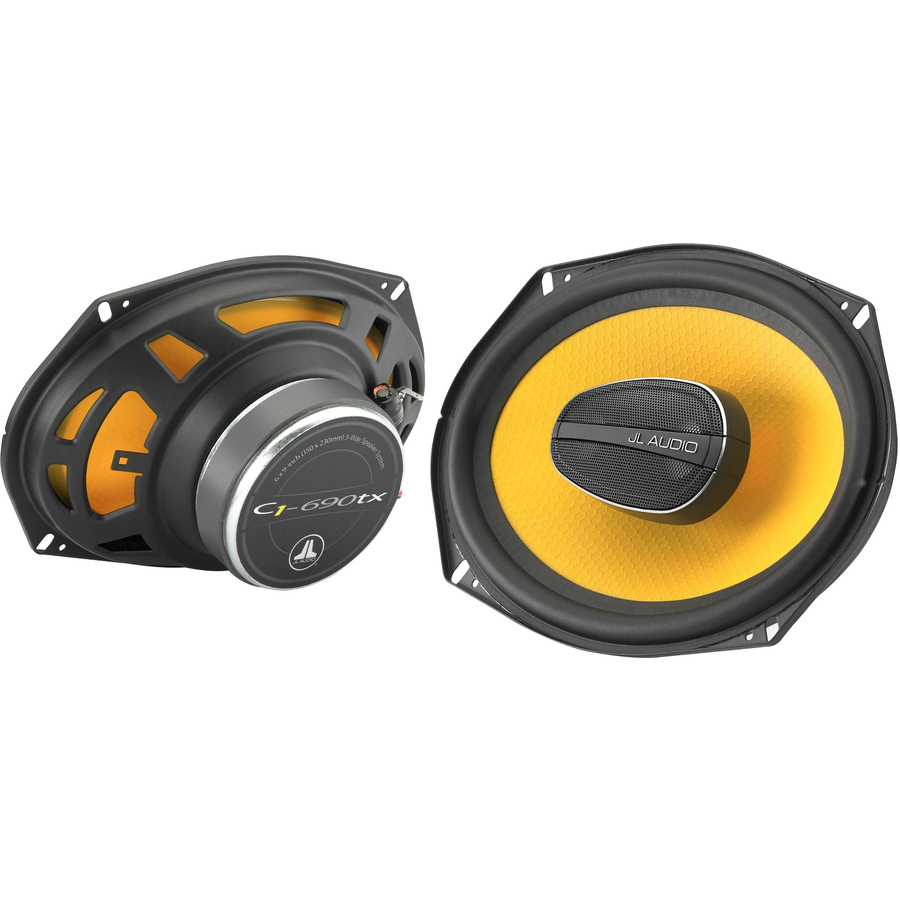

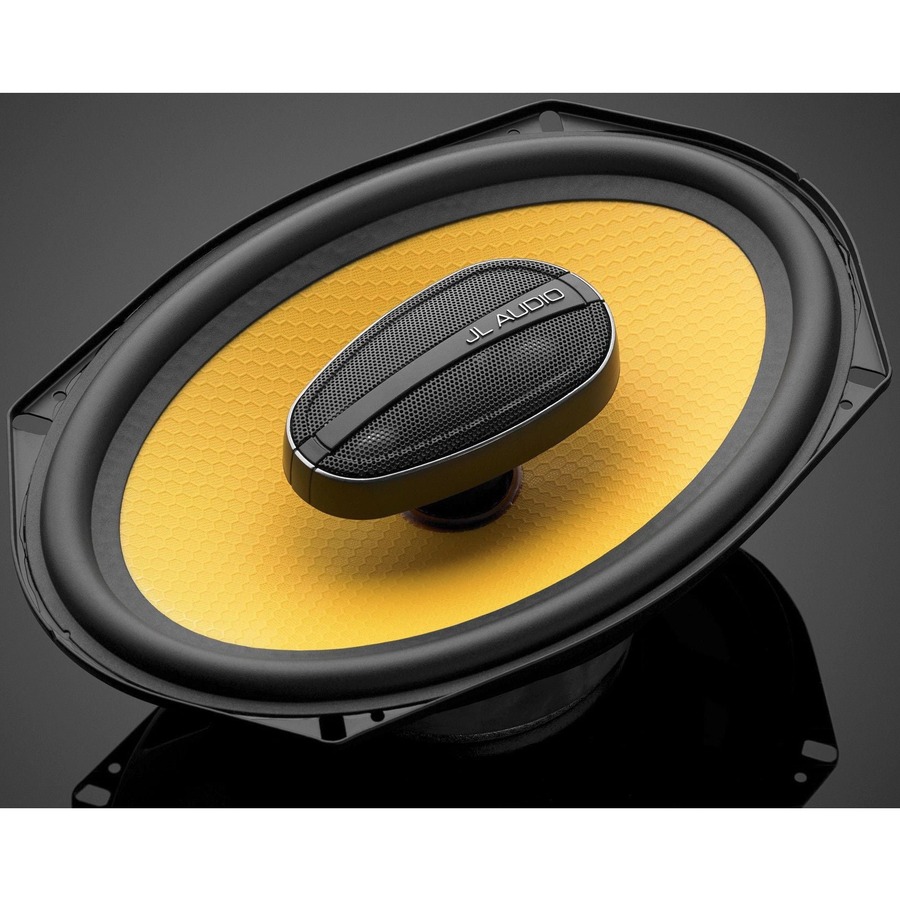

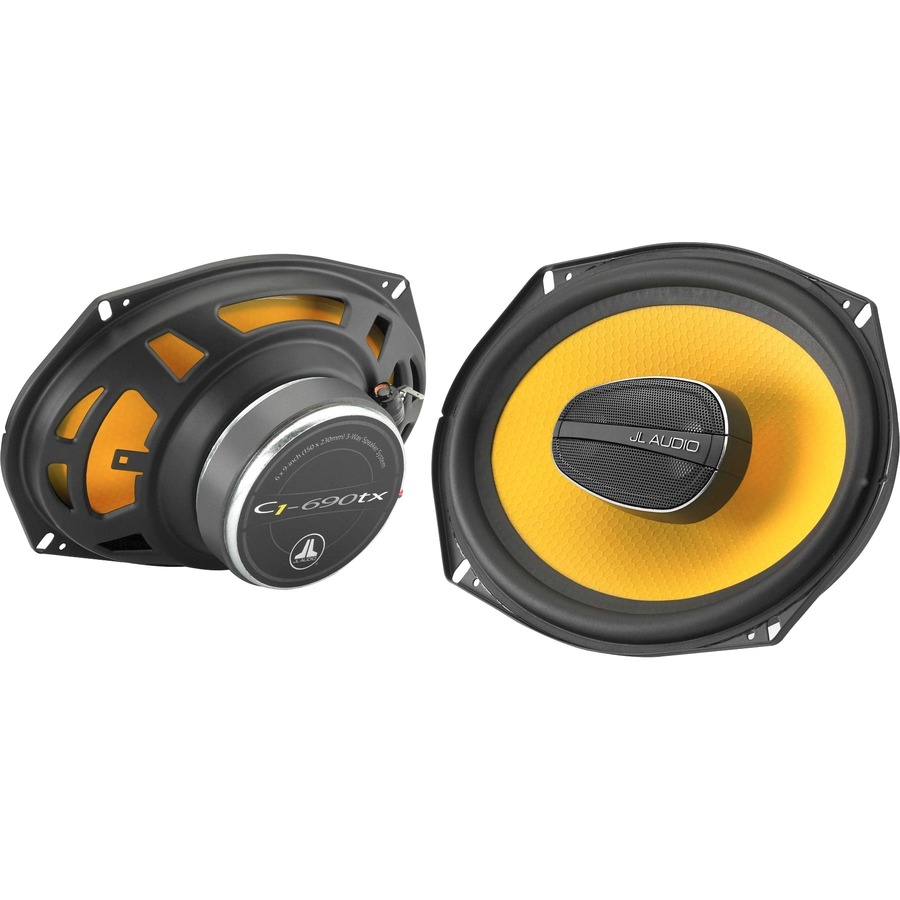

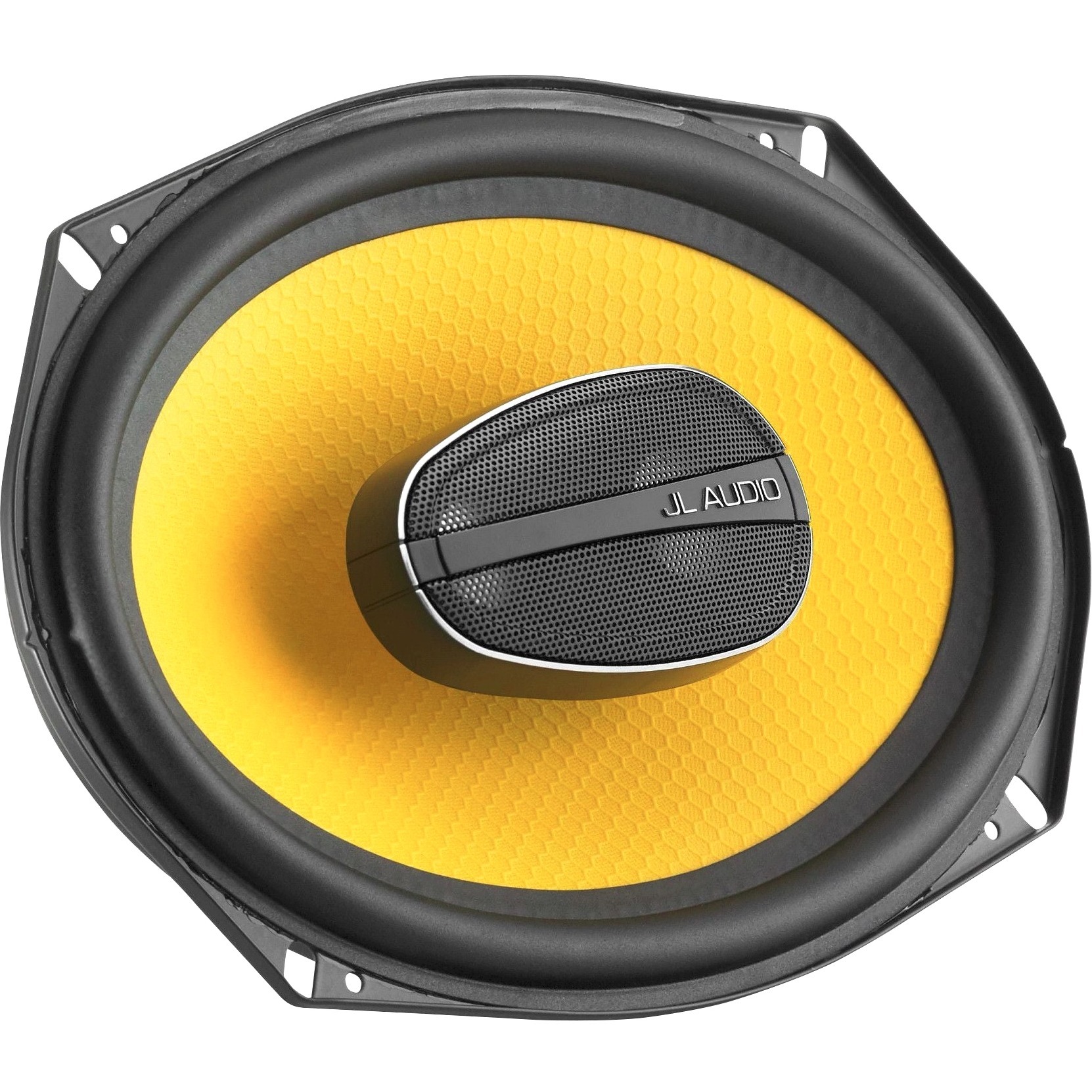

    JL Audio C1-690tx Speaker - 60 W RMS - 3-way - 2 Pack

    36 Hz to 24 kHz - 4 Ohm

    SKU: C1-690TX
    $199.99 Or Less!
    Available In Store OnlyAdditional discounts based on product condition
    Deal Image

    JL Audio C1-690tx Speaker - 60 W RMS - 3-way - 2 Pack - 36 Hz to 24 kHz - 4 Ohm

    Coaxial 3-Way Speaker System: 6 x 9-inch (150 x 230 mm) Woofer, 1.0-inch (25 mm) Aluminum Dome Tweeter, 0.75-inch (19 mm) Aluminum Dome Super Tweeter

    C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

    To facilitate fit, spacer adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.

    C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

    Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.

    When it comes to value, C1 is the real deal!


    Products specifications
    Physical Characteristics
    Mounting Depth3.09"
    Technical Information
    Crossover Type3-way
    Crossover SupportedYes
    RMS Output Power60 W
    Super Tweeter Driver Size0.75"
    Tweeter Driver Size0.98"
    Woofer Driver Size5.91", 9.06"
    Super Tweeter Driver MaterialAluminum
    Tweeter Driver MaterialAluminum Dome
    Minimum Frequency Response36 Hz
    Maximum Frequency Response24 kHz
    Impedance4 Ohm
    Warranty
    Limited Warranty1 Year
    General Information
    Packaged Quantity2

    JL Audio C1-690tx Speaker - 60 W RMS - 3-way - 2 Pack - 36 Hz to 24 kHz - 4 Ohm

    Coaxial 3-Way Speaker System: 6 x 9-inch (150 x 230 mm) Woofer, 1.0-inch (25 mm) Aluminum Dome Tweeter, 0.75-inch (19 mm) Aluminum Dome Super Tweeter

    C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

    To facilitate fit, spacer adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.

    C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

    Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.

    When it comes to value, C1 is the real deal!
