JL Audio, Inc XDM600/1

1400

JL Audio XDM600/1 Car Amplifier - 600 rated power RMS - 1 Channel - Class D - Black

4 Ohm - 7 Hz to 500 Hz - 1 x 400W, 1 x 300 rated power @ 4 Ohm - 1 x 600W, 1 x 500 rated power @ 2 Ohm

SKU: XDM600/1
$599.95 Or Less!
Zipcode:
Free shipping
Product Availability


JL Audio XDM600/1 Car Amplifier - 600 rated power RMS - 1 Channel - Class D - Black - 4 Ohm - 7 Hz to 500 Hz - 1 x 400W, 1 x 300 rated power @ 4 Ohm - 1 x 600W, 1 x 500 rated power @ 2 Ohm

Monoblock Class D Car/Marine Subwoofer Amplifier, 600 rated power x 1 @ 2 Ω / 400 rated power x 1 @ 4 Ω - 14.4V

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 rated power of continuous power into a 2 ohm load (14.4V, 1% THD).

Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

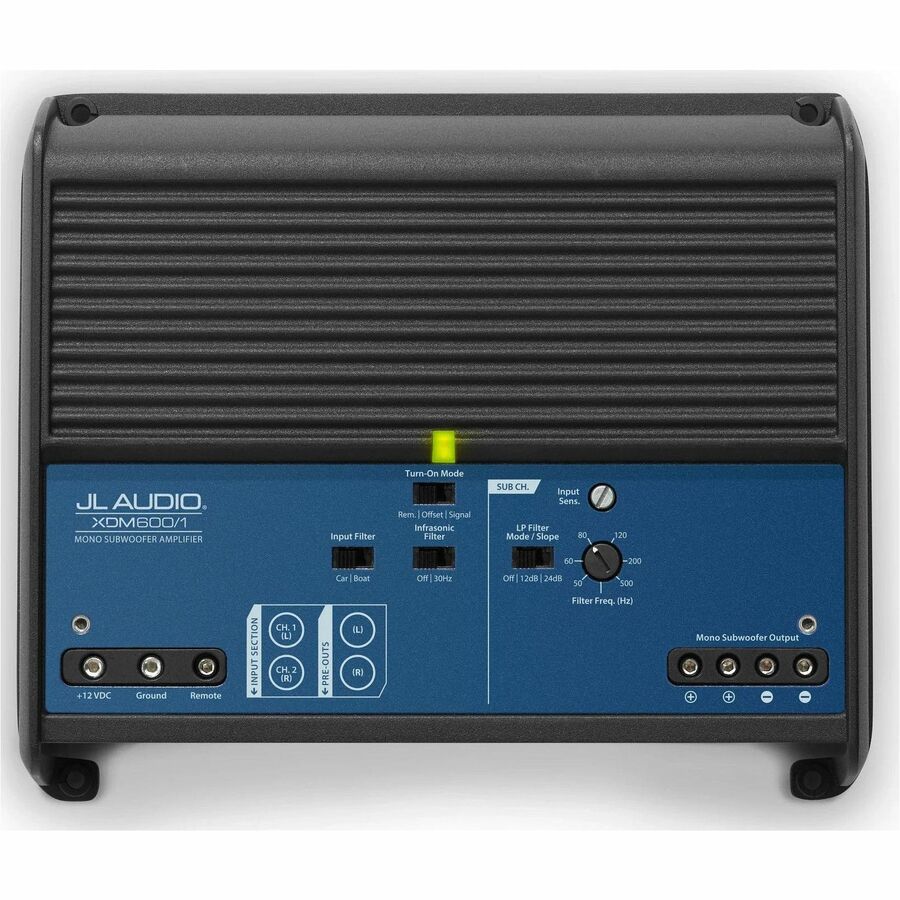

Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately),the amplifier's level can be adjusted directly from the driver's seat or captain's chair.

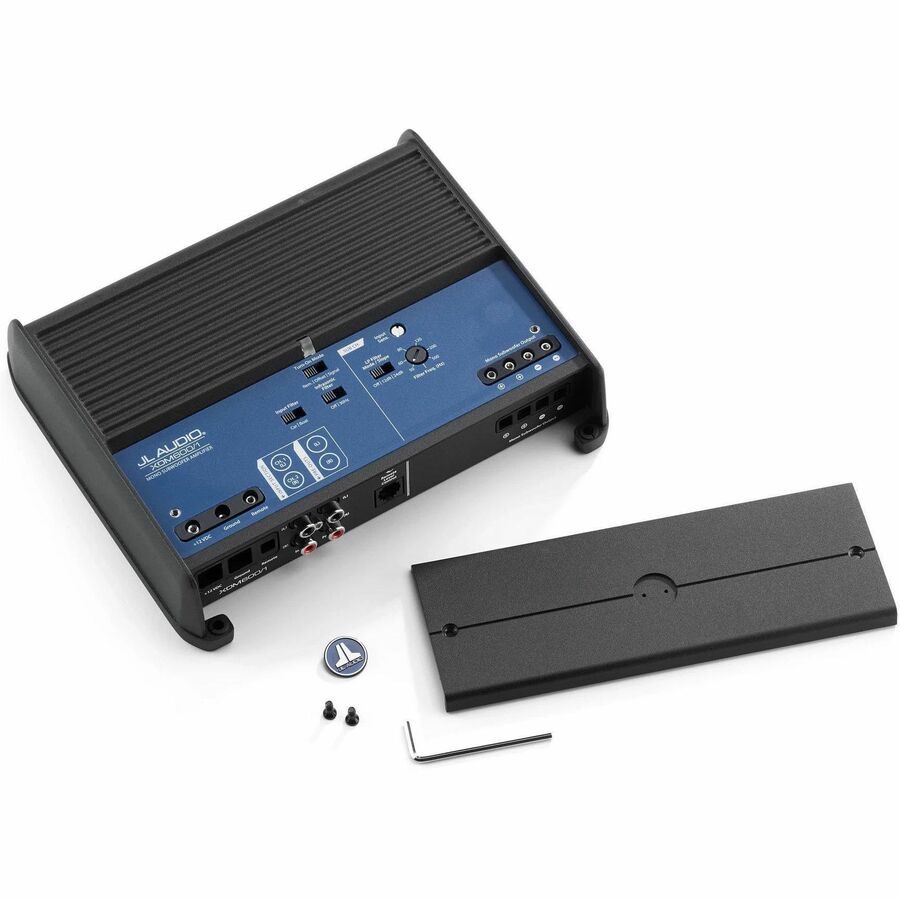

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Products specifications
Physical Characteristics
Product ColorBlack
Height2"
Width8.5"
Depth7.1"
Weight (Approximate)6.31 lb
Technical Information
Audio Channels1
Impedance4 Ohm
Rated Power @ 2 Ohm1 x 600W, 1 x 500W
Rated Power @ 4 Ohm1 x 400W, 1 x 300W
RMS Output Power600 Rated Power
Minimum Frequency Response7 Hz
Maximum Frequency Response500 Hz
Warranty
Limited Warranty2 Year
Power Description
Power SourceDC Power
