    Manufacturer: JL Audio

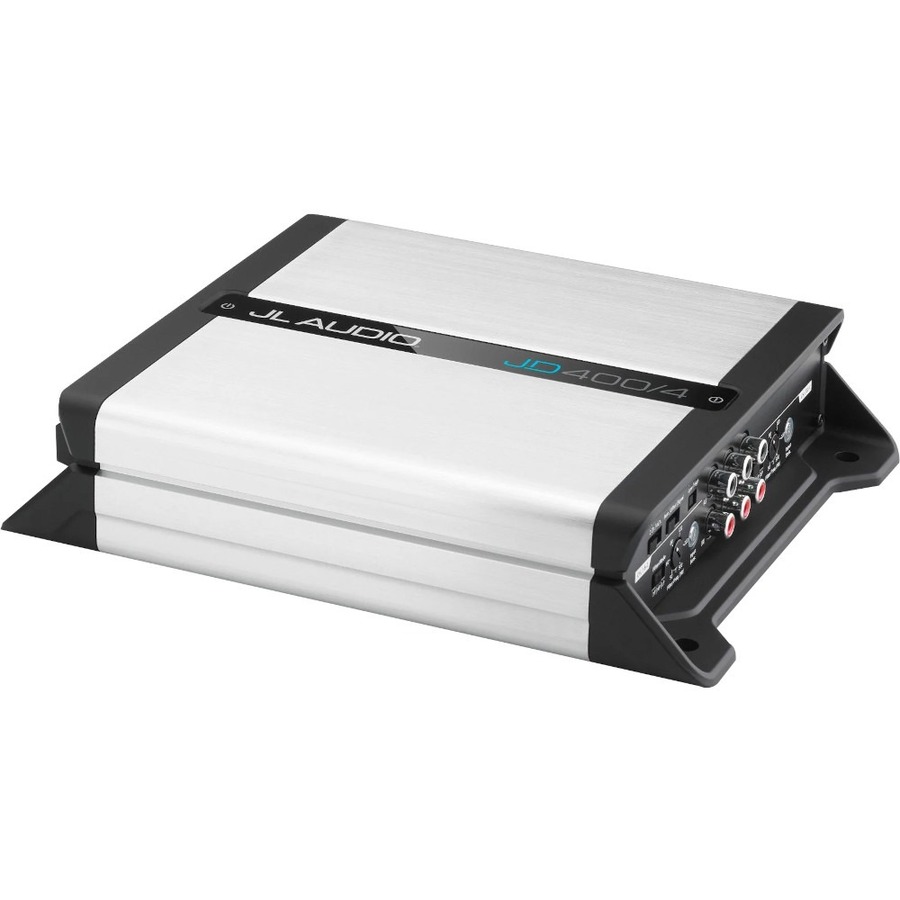

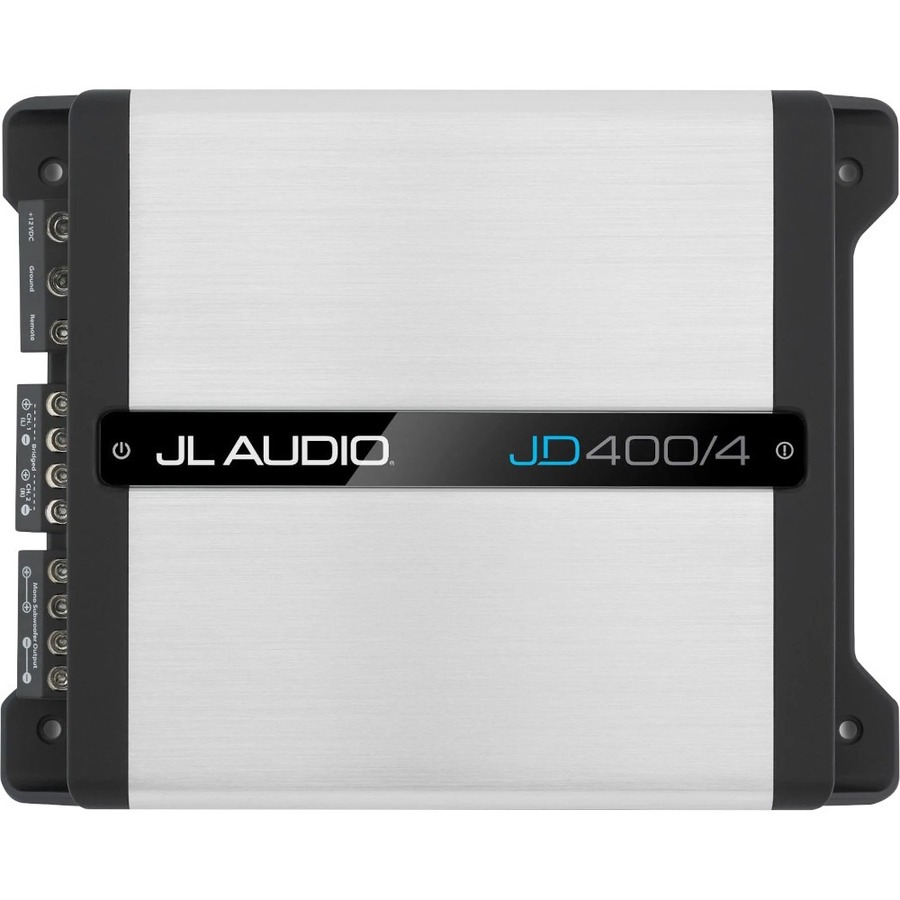

    JL Audio JD400/4

    1734

    JL Audio JD JD400/4 Car Amplifier - 400 W RMS - 4 Channel - Class D

    Bridgeable - 4 Ohm - 12 Hz to 22 kHz - 4 x 75W @ 4 Ohm - 4 x 100W @ 2 Ohm - 2 x 200W Bridged Power @ 4 Ohm

    SKU: JD400/4
    $279.95 Or Less!
    Available In Store OnlyAdditional discounts based on product condition
    Deal Image

    JL Audio JD JD400/4 Car Amplifier - 400 W RMS - 4 Channel - Class D - Bridgeable - 4 Ohm - 12 Hz to 22 kHz - 4 x 75W @ 4 Ohm - 4 x 100W @ 2 Ohm - 2 x 200W Bridged Power @ 4 Ohm

    4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 ? / 75 W x 4 @ 4 ? - 14.4V

    Utilizing our exclusive NexD™ high-speed switching technologies, the JD400/4 amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. This little guy churns out 100 watts of audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.

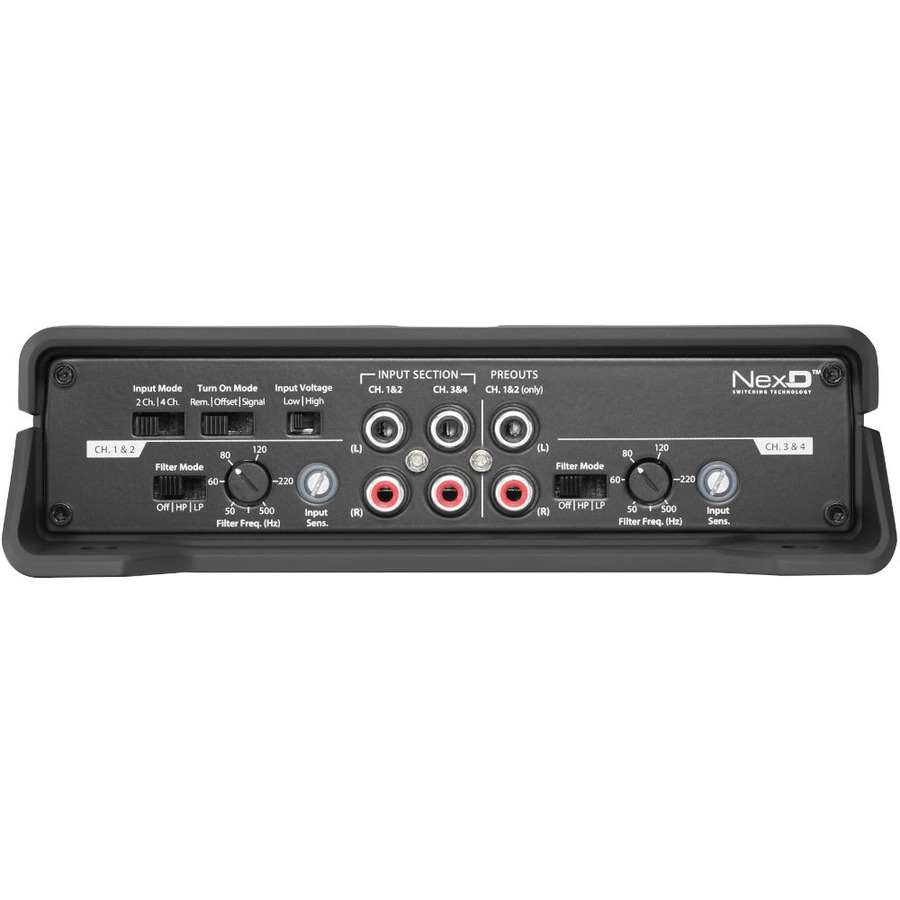

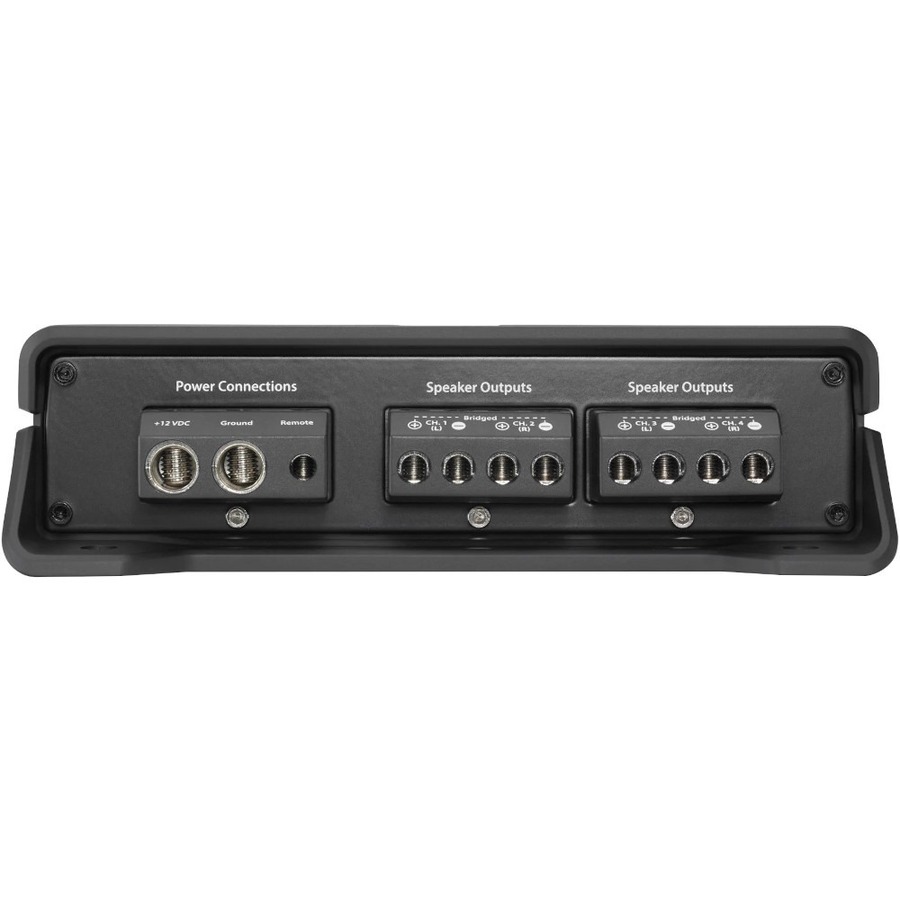

    The JD400/4's controls can be found on the input panel of the amplifier, with all speaker and power connections located along the opposite end of the extruded aluminum chassis. Signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting line-level or speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment.

    Onboard LED-clipping indicators are also included surrounding each input sensitivity control. This convenient feature lets you set your amplifier's input sensitivity, quickly and accurately, without special equipment. You will also find a set of buffered, pass-through preamp outputs on-board, so you can pass signals to another amplifier.


    Products specifications
    Physical Characteristics
    Height2.1"
    Width9.5"
    Depth7.1"
    Weight (Approximate)6 lb
    Technical Information
    Audio Channels4
    BridgeableYes
    Impedance4 Ohm
    Rated Power @ 2 Ohm4 x 100W
    Rated Power @ 4 Ohm4 x 75W
    Bridged Power @ 4 Ohm2 x 200W
    RCA Input(s)4-Channel
    RMS Output Power400 W
    Minimum Frequency Response12 Hz
    Maximum Frequency Response22 kHz
    High Pass CrossoverVariable
    Low Pass CrossoverVariable
    Speaker Level InputNo
    Preamp OutputYes
    Warranty
    Limited Warranty2 Year
