    Manufacturer: JL Audio

    JL Audio JD500/1

    1526

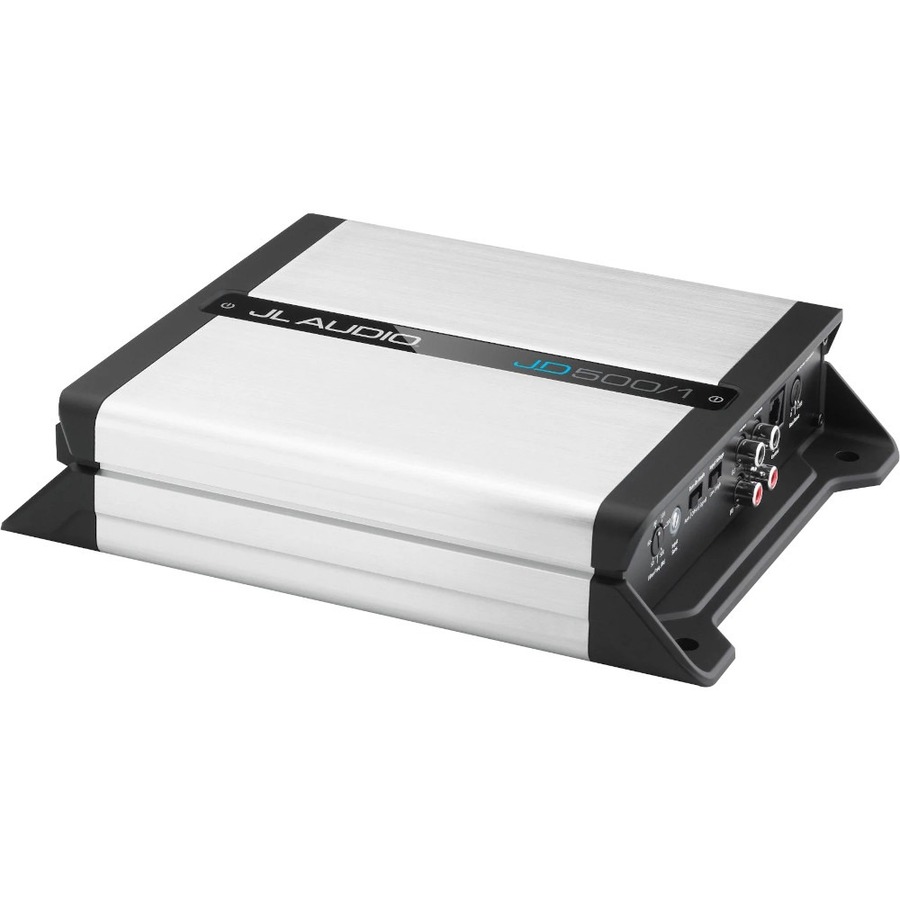

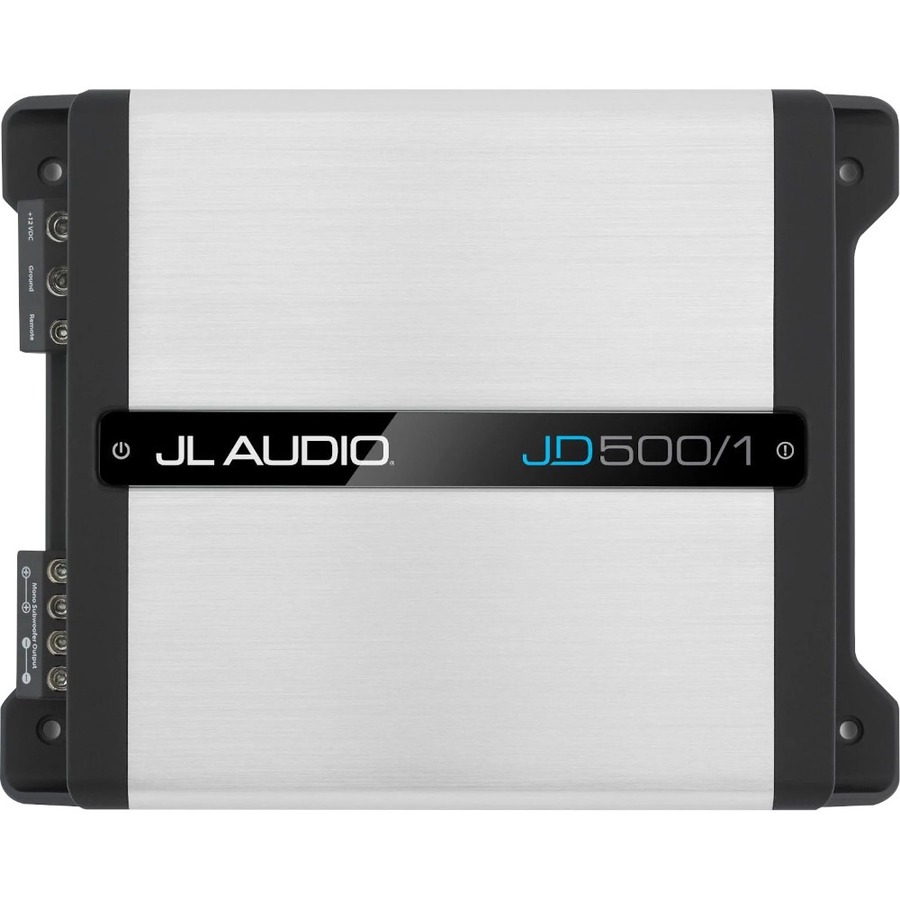

    JL Audio JD JD500/1 Car Amplifier - 500 W RMS - 500 W PMPO - 1 Channel - Class D

    Monoblock4 Ohm - 7 Hz to 500 Hz - 1 x 250W @ 4 Ohm - 1 x 500W @ 2 Ohm

    SKU: JD500/1
    $279.99 Or Less!
    Available In Store OnlyAdditional discounts based on product condition
    Deal Image

    JL Audio JD JD500/1 Car Amplifier - 500 W RMS - 500 W PMPO - 1 Channel - Class D - Monoblock4 Ohm - 7 Hz to 500 Hz - 1 x 250W @ 4 Ohm - 1 x 500W @ 2 Ohm

    Monoblock Class D Subwoofer Amplifier, 500 W x 1 @ 2 ? / 250 W x 1 @ 4 ? - 14.4V

    Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

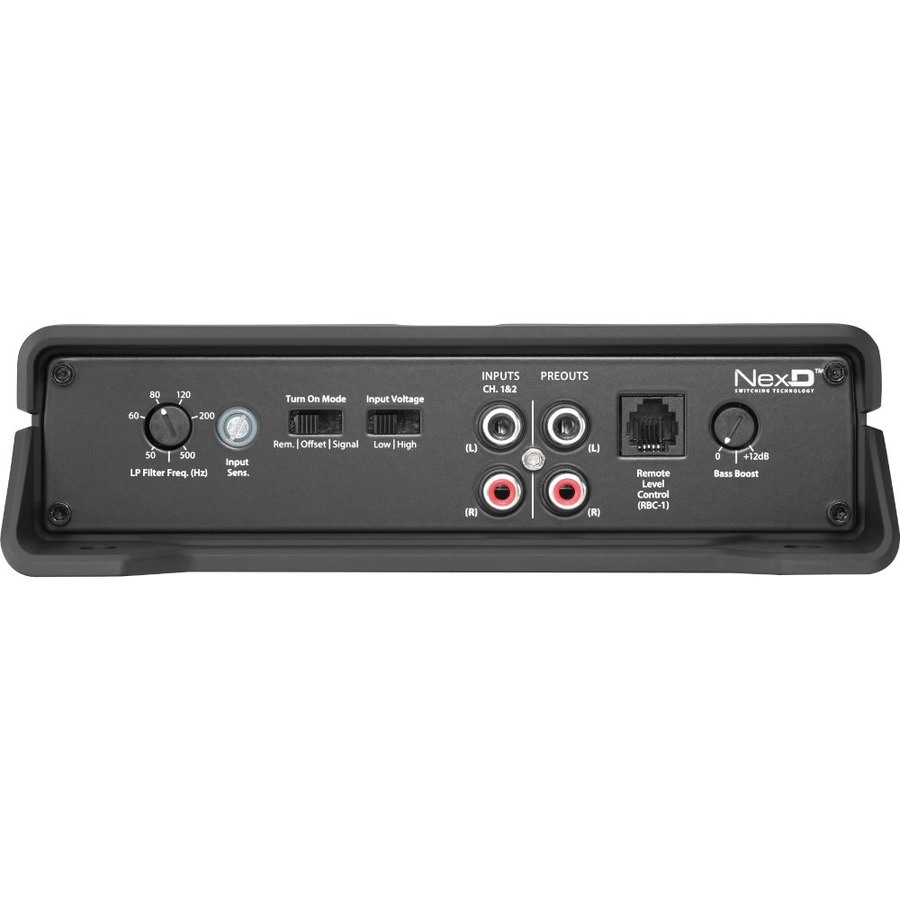

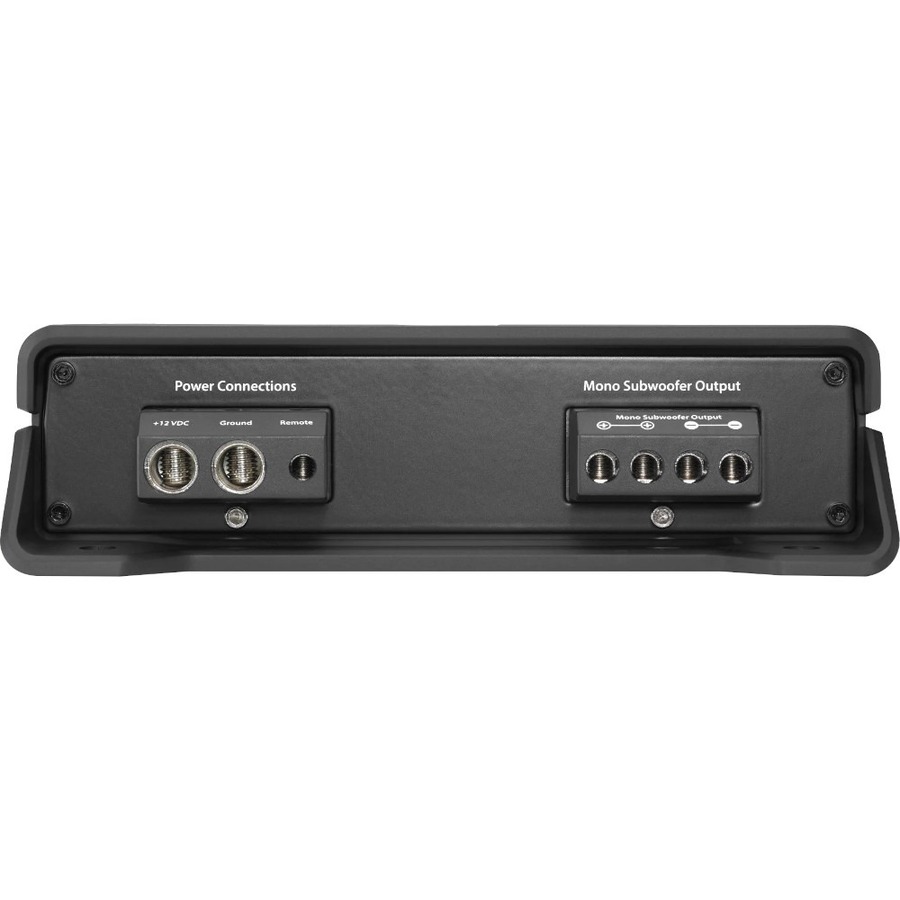

    The JD500/1's controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

    The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier's input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver's seat.


    Products specifications
    Physical Characteristics
    Height2.1"
    Width9.5"
    Depth7.5"
    Weight (Approximate)8 lb
    Technical Information
    Audio Channels1
    Bass BoostVariable
    Impedance4 Ohm
    Rated Power @ 2 Ohm1 x 500W
    Rated Power @ 4 Ohm1 x 250W
    RCA Input(s)1-Channel
    RMS Output Power500 W
    PMPO Output Power500 W
    Minimum Frequency Response7 Hz
    Maximum Frequency Response500 Hz
    Low Pass CrossoverVariable
    Speaker Level InputNo
    Preamp OutputYes
    MonoblockYes
    Warranty
    Limited Warranty2 Year
