    Manufacturer: JL Audio

    JL Audio M7005

    1662

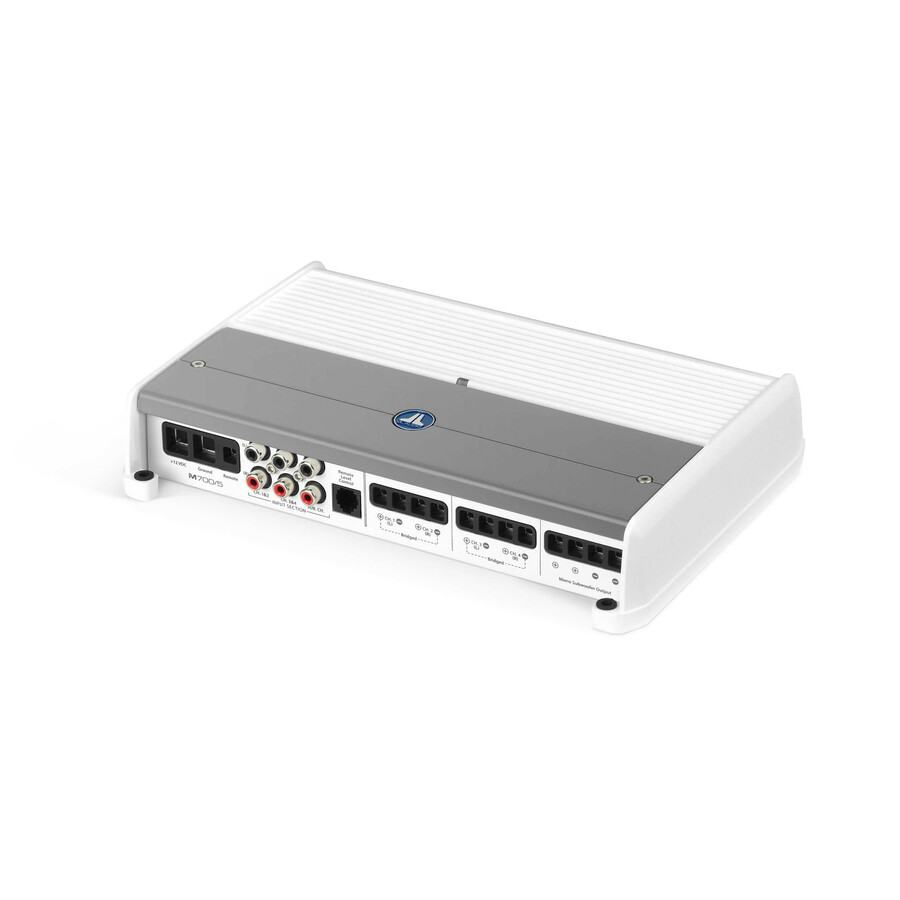

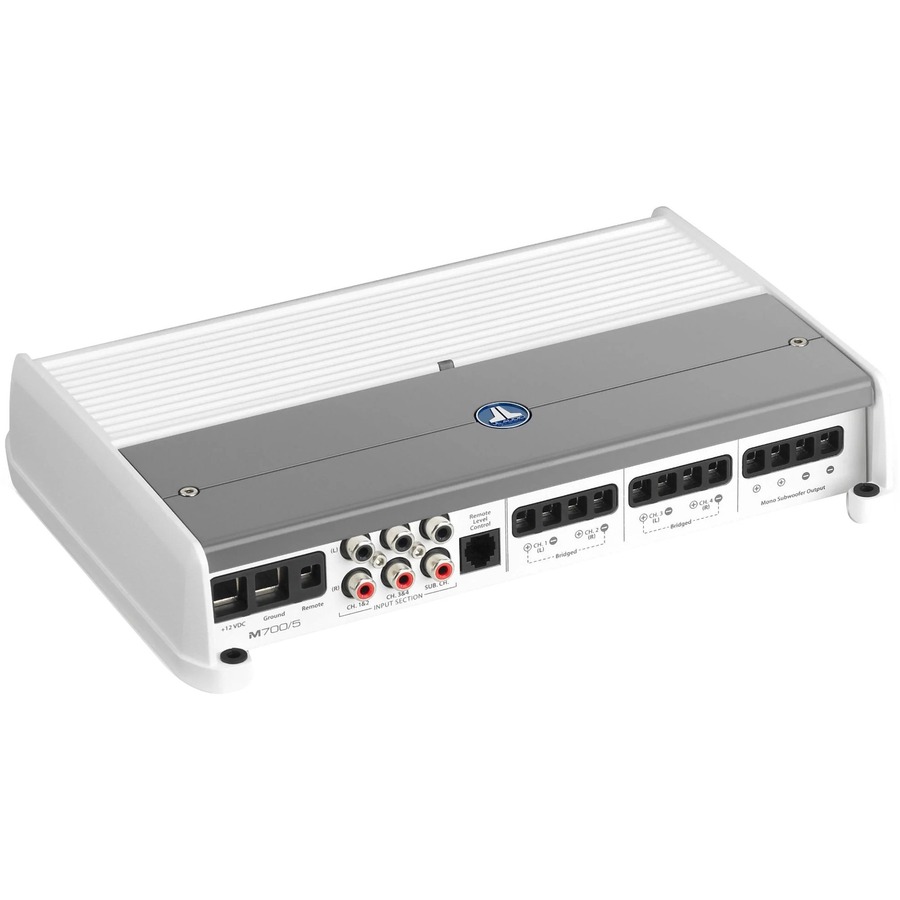

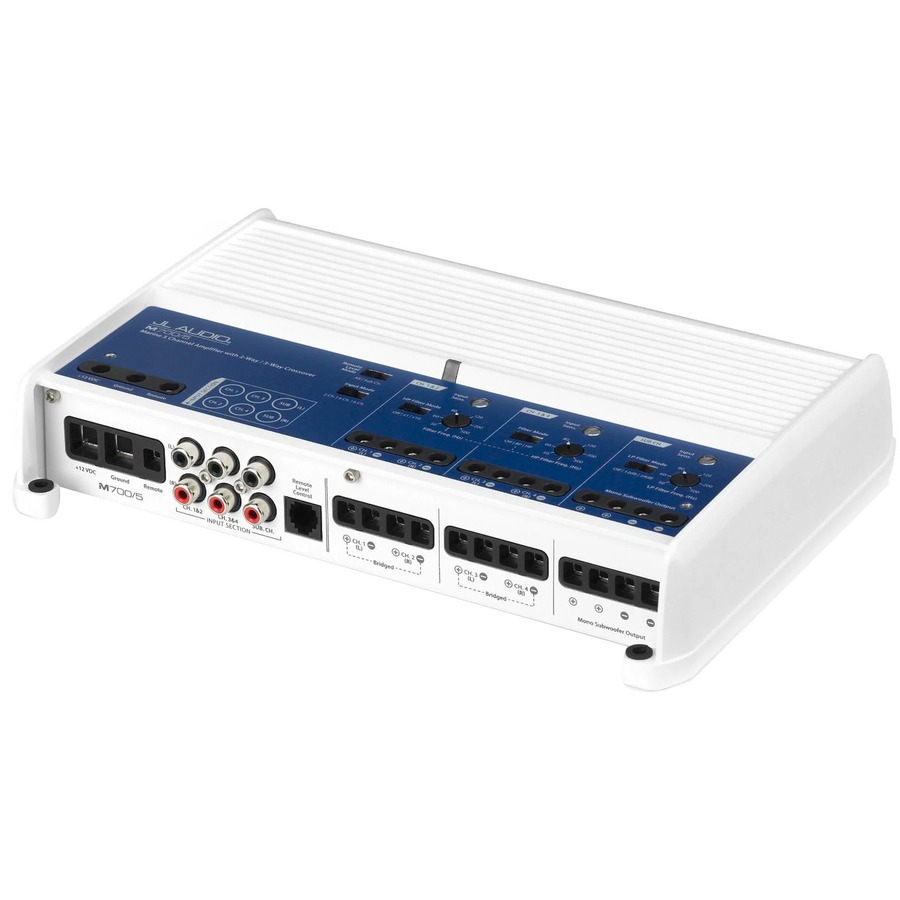

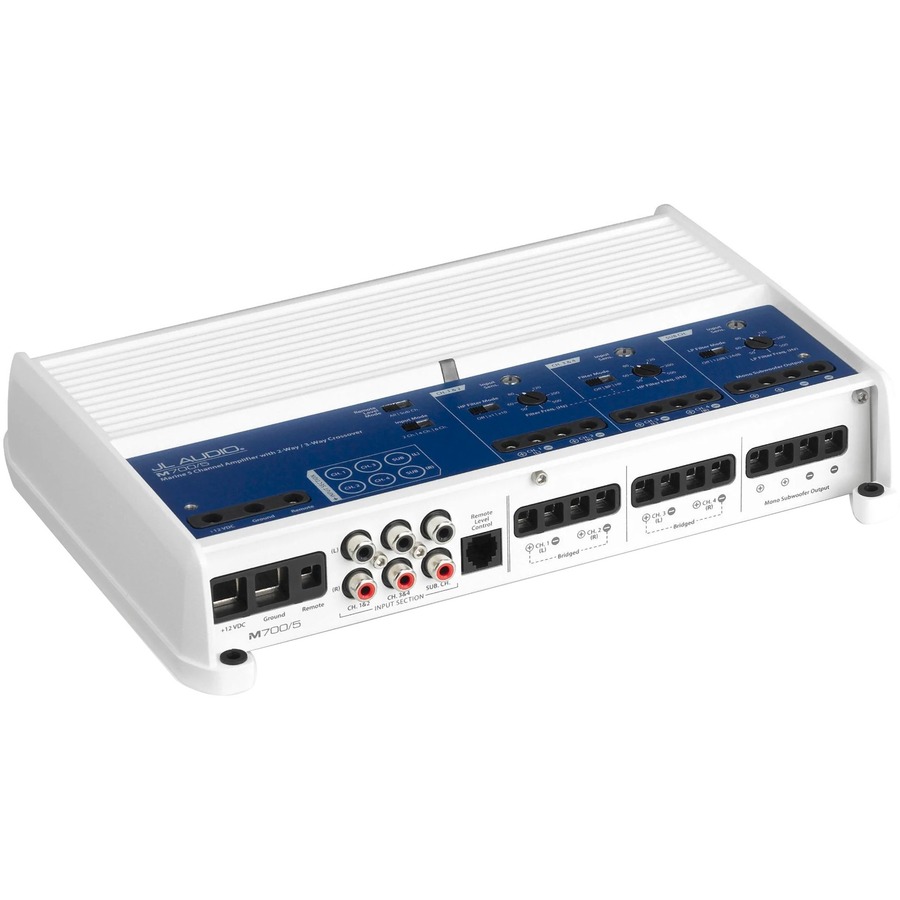

    JL Audio M M700/5 Car Amplifier - 700 rated power RMS - 4.1 Channel - Class D - White, Gray

    Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 75 rated power @ 4 Ohm - 4 x 100 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm

    SKU: M7005
    $899.95 Or Less!
    Available In Store OnlyAdditional discounts based on product condition
    Zipcode:
    Free shipping
    Product Availability


    JL Audio M M700/5 Car Amplifier - 700 rated power RMS - 4.1 Channel - Class D - White, Gray - Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 75 rated power @ 4 Ohm - 4 x 100 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm



    5-Channel Class D Marine System Amplifier, 75 rated power x 4 @ 4 ? + 300 rated power x 1 @ 2 ? - 14.4V

    The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 rated power x 4 @ 4 ?), while also delivering a stout 300 rated power of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

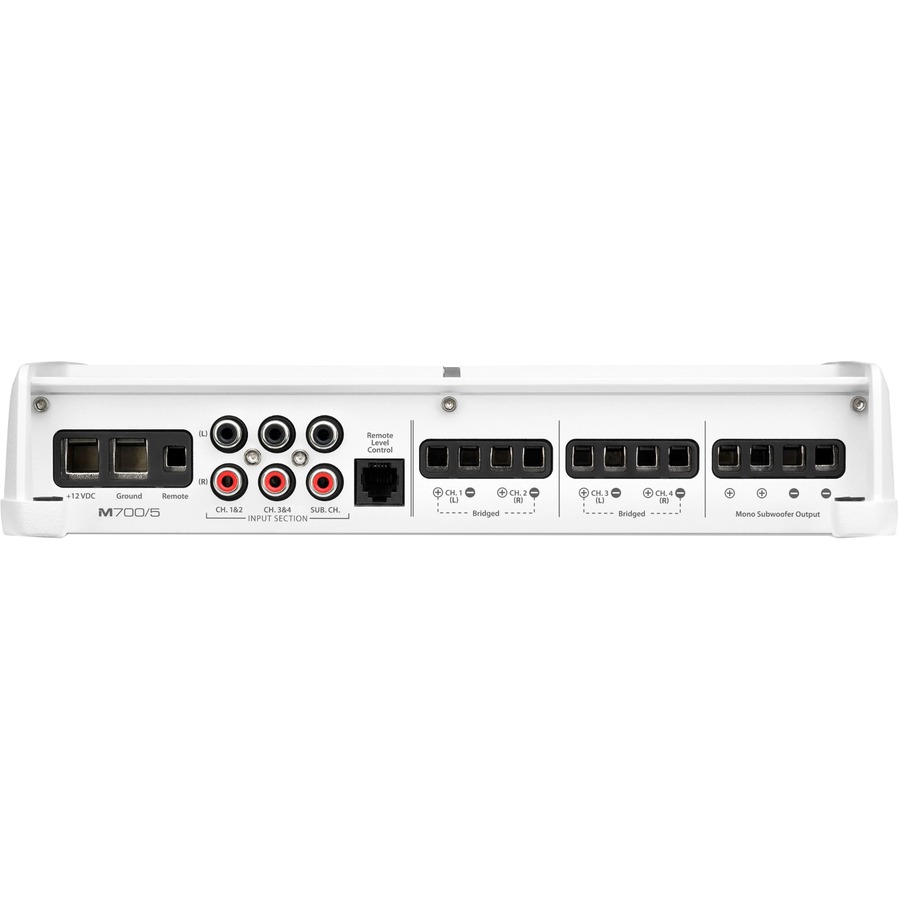

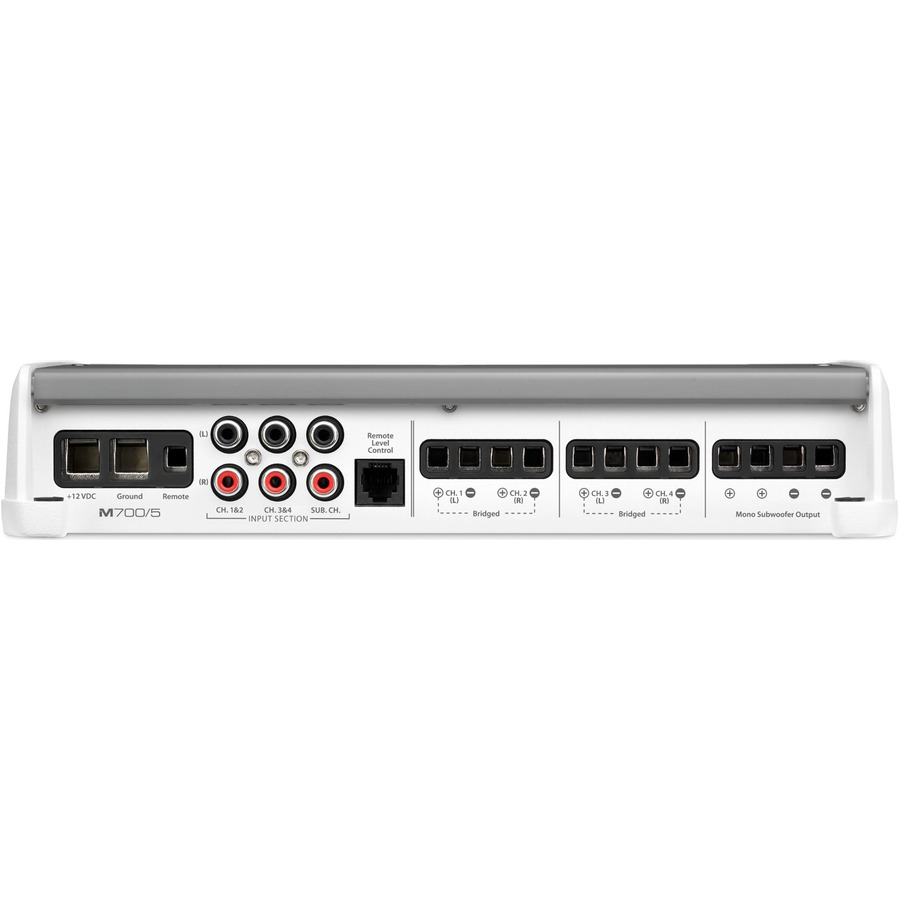

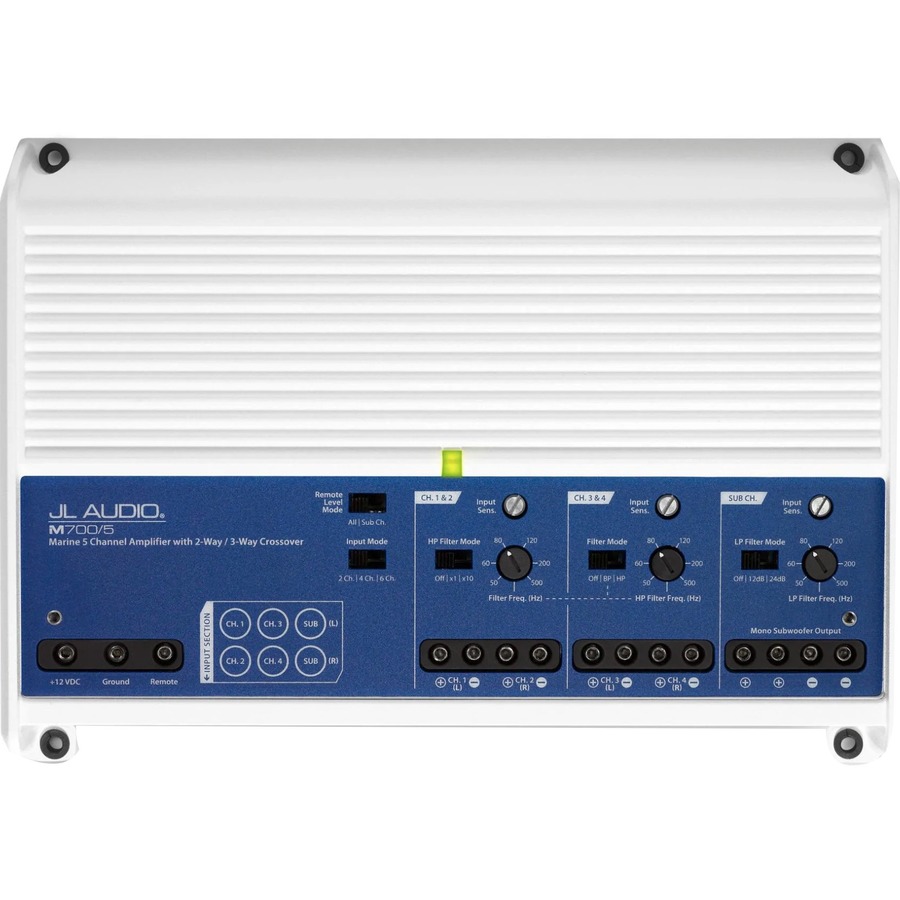

    The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.

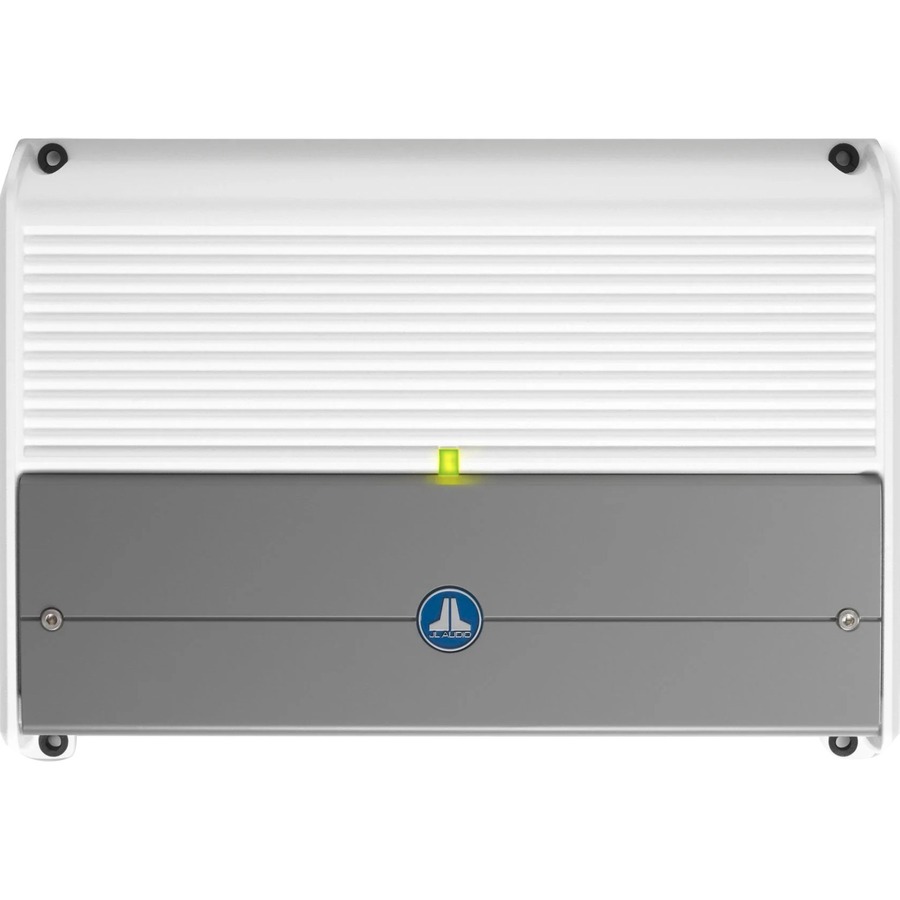

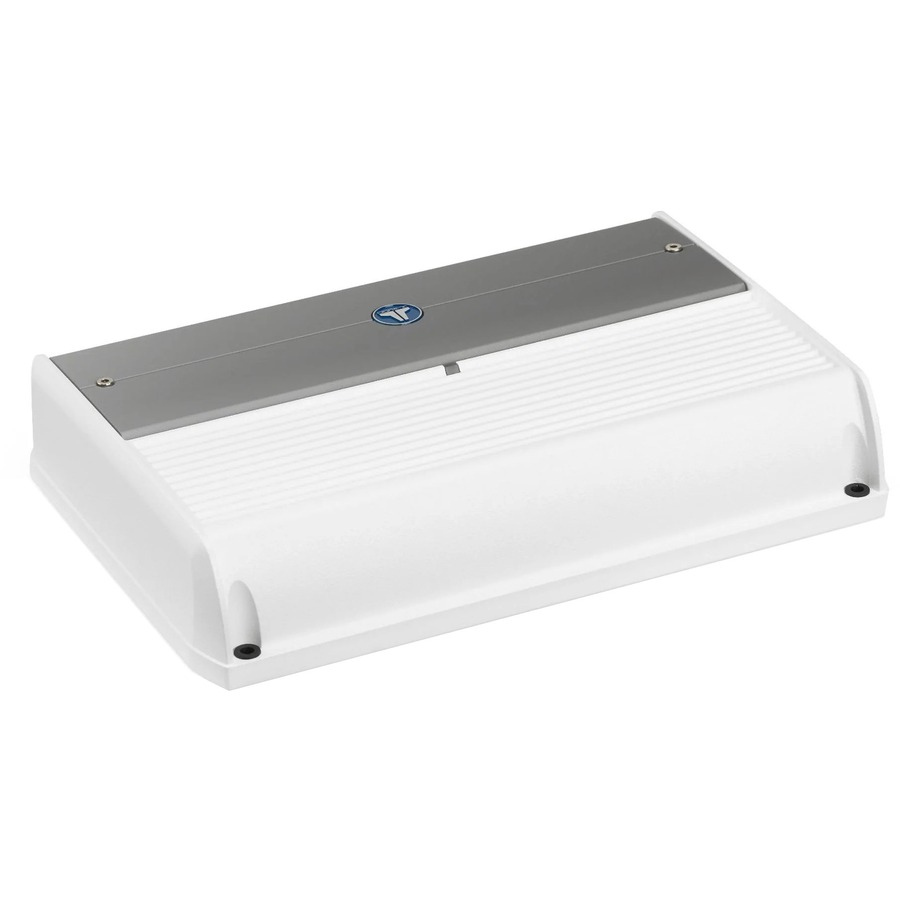

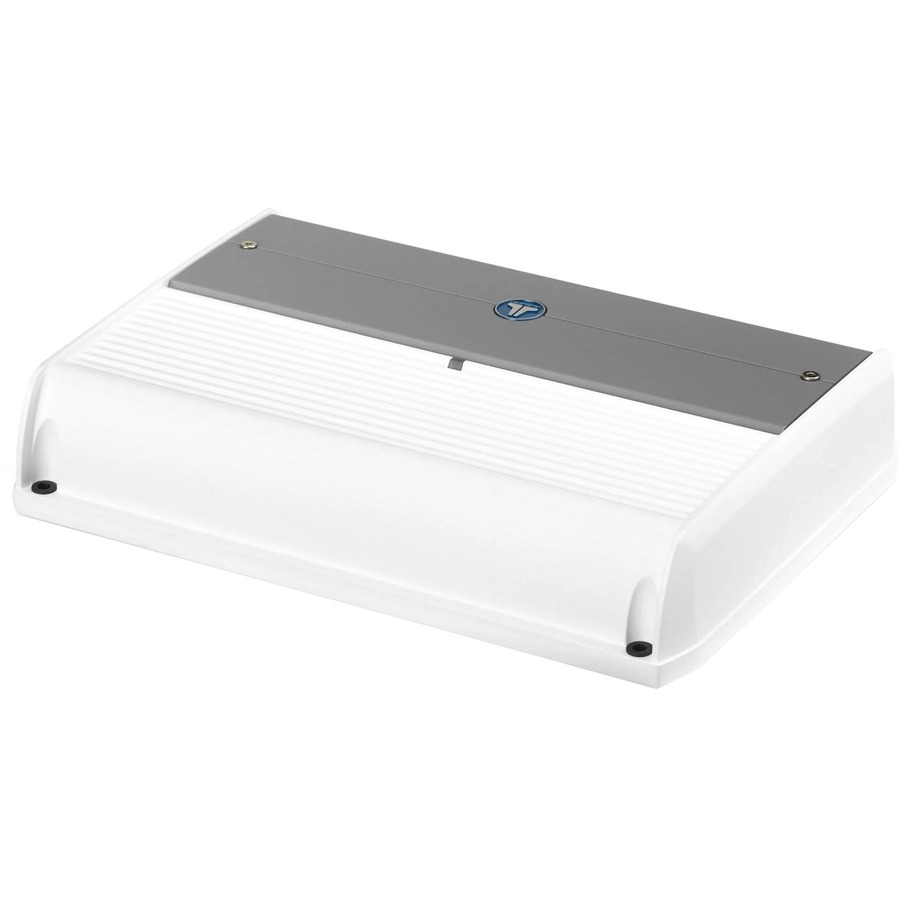

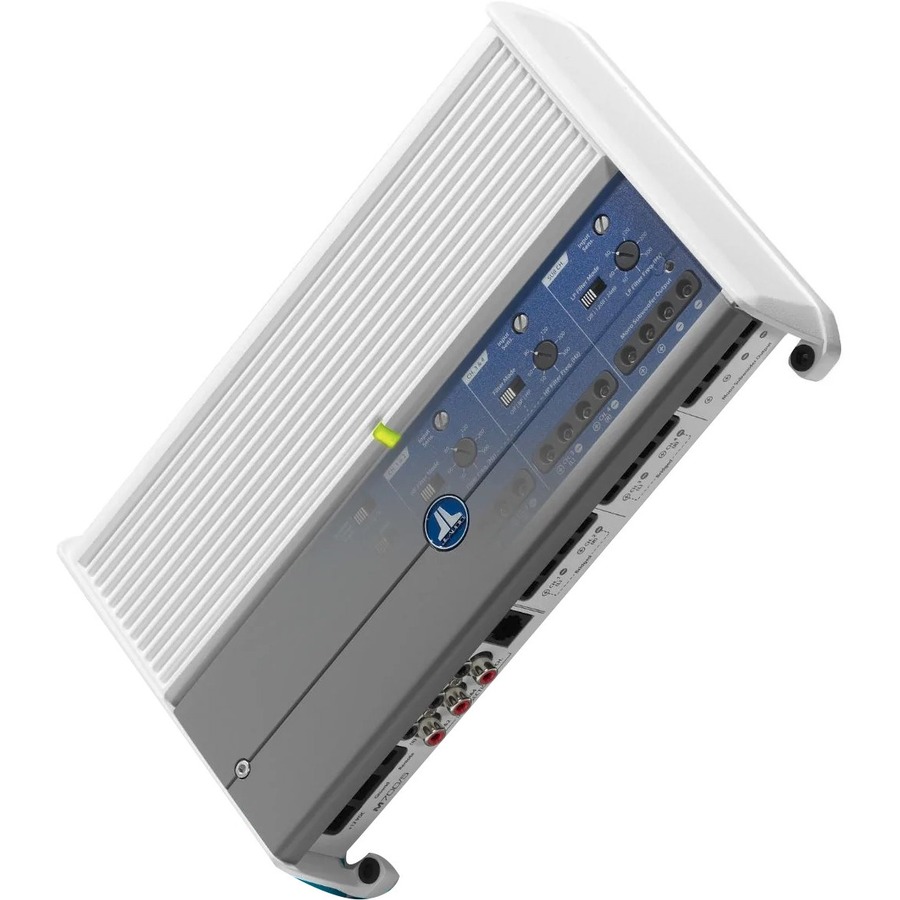

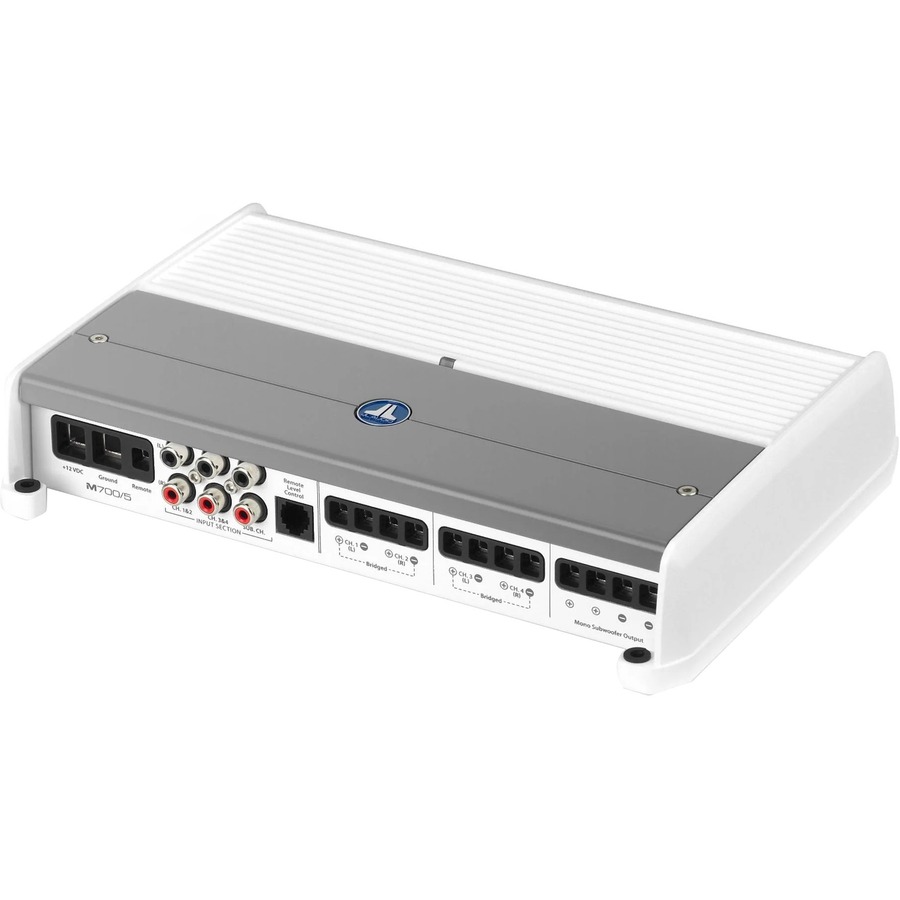

    This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.



    Products specifications
    Physical Characteristics
    Product ColorWhite, Gray
    Height2"
    Width9.5"
    Depth7.1"
    Weight (Approximate)6.15 lb
    Technical Information
    Audio Channels4.1
    BridgeableYes
    Impedance4 Ohm
    Rated Power @ 2 Ohm4 x 100W
    Rated Power @ 4 Ohm4 x 75W
    Bridged Power @ 4 Ohm2 x 200W
    RCA Input(s)5-Channel
    RMS Output Power700 Rated Power
    Minimum Frequency Response12 Hz
    Maximum Frequency Response22 kHz
    High Pass CrossoverVariable
    Low Pass CrossoverVariable
    Speaker Level InputYes
    Preamp OutputYes
    Warranty
    Limited Warranty2 Year
    Power Description
    Power SupplyMOSFET

    JL Audio M M700/5 Car Amplifier - 700 rated power RMS - 4.1 Channel - Class D - White, Gray - Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 75 rated power @ 4 Ohm - 4 x 100 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm



    5-Channel Class D Marine System Amplifier, 75 rated power x 4 @ 4 ? + 300 rated power x 1 @ 2 ? - 14.4V

    The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 rated power x 4 @ 4 ?), while also delivering a stout 300 rated power of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

    The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.

    This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
