    Manufacturer: JL Audio

    JL Audio RD400/4

    1442

    JL Audio RD RD400/4 Car Amplifier - 400 rated power RMS - 800 rated power PMPO - 4 Channel - Class D - Black

    Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 75 rated power @ 4 Ohm - 4 x 100 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm

    SKU: RD400/4
    $359.95 Or Less!
    Available In Store OnlyAdditional discounts based on product condition
    Zipcode:
    Free shipping
    Product Availability


    JL Audio RD RD400/4 Car Amplifier - 400 rated power RMS - 800 rated power PMPO - 4 Channel - Class D - Black - Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 75 rated power @ 4 Ohm - 4 x 100 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm

    4-Channel Class D Full-Range Amplifier, 100 rated power x 4 @ 2 ? / 75 rated power x 4 @ 4 ? - 14.4V

    Utilizing our exclusive NexD™ high-speed switching technologies, the ultra-compact RD400/4 amplifier is engineered to deliver loads of audio output power, with incredible efficiency and low distortion. Don't let its modern styling and small size fool you though, this little powerhouse churns out 100 rated power of crystal-clear audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200 rated power x 2 into 4 ohms.

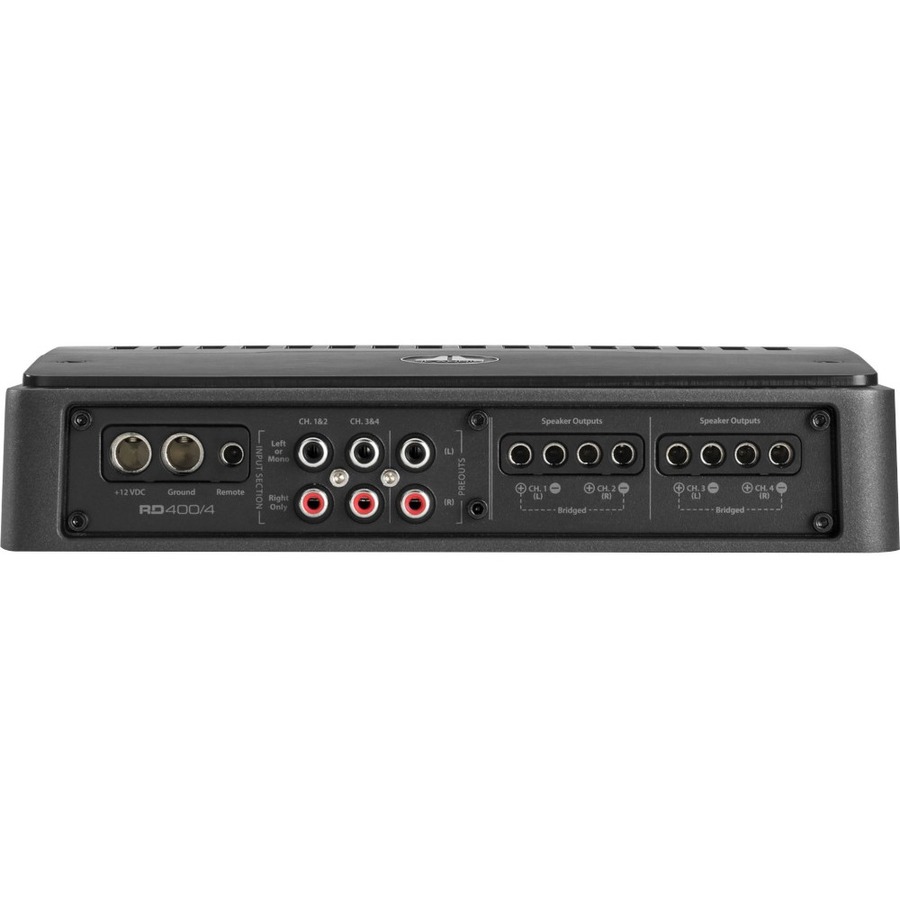

    For your convenience, the RD400/4's controls can be found on top of the amplifier, beneath a protective cover, with all connections located along one side of its chassis. Studio-grade signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment, along with all-new input type switches for bridging of stereo output channels without needing to use Y-adaptors.

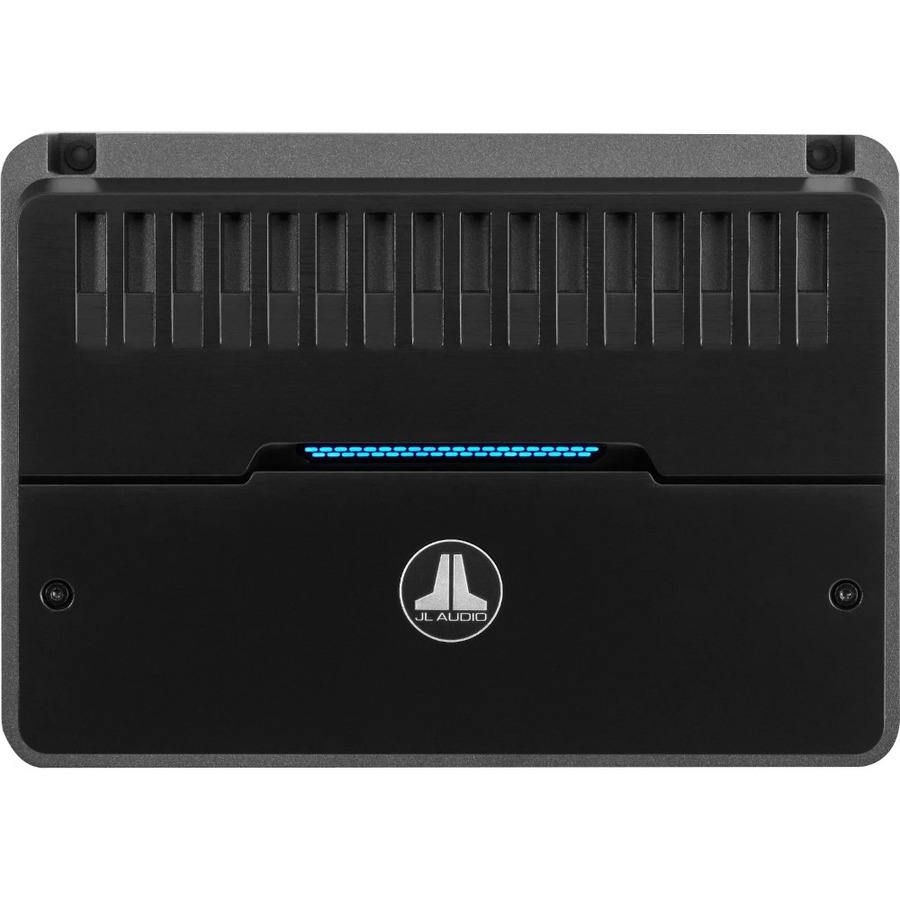

    Onboard LED-clipping indicators are also included with your RD400/4. This all-new, innovative feature lets you easily set your amplifier's input sensitivity settings, quickly and accurately, with no special equipment needed. You'll also find a set of preamp outputs on-hand, so you can pass signals to another amplifier, almost effortlessly. The RD400/4 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition.

    Products specifications
    Physical Characteristics
    Product ColorBlack
    Height2.1"
    Width9.8"
    Depth7"
    Weight (Approximate)6.35 lb
    Technical Information
    Audio Channels4
    BridgeableYes
    Bass BoostVariable
    Impedance4 Ohm
    Rated Power @ 2 Ohm4 x 100W
    Rated Power @ 4 Ohm4 x 75W
    Bridged Power @ 4 Ohm2 x 200W
    RCA Input(s)4-Channel
    RMS Output Power400 Rated Power
    PMPO Output Power800 Rated Power
    Minimum Frequency Response12 Hz
    Maximum Frequency Response22 kHz
    High Pass CrossoverVariable
    Low Pass CrossoverVariable
    Speaker Level InputYes
    Preamp OutputYes
    Warranty
    Limited Warranty2 Year
    Power Description
    Power SupplyMOSFET
