    Manufacturer: JL Audio

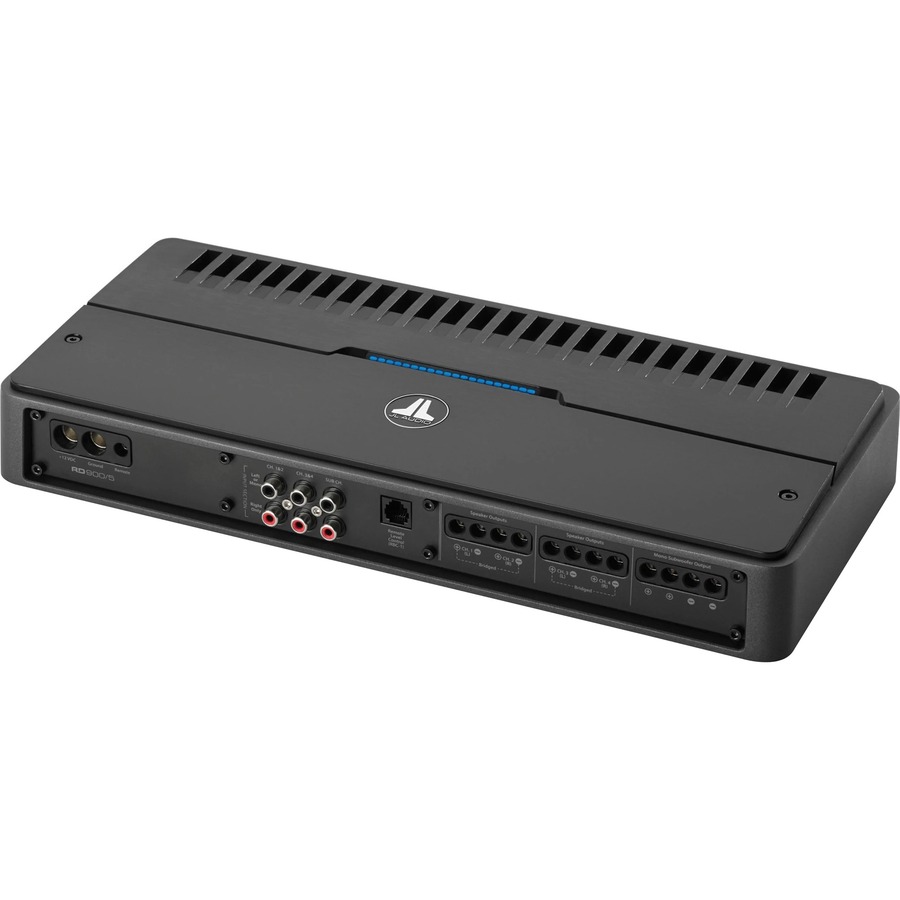

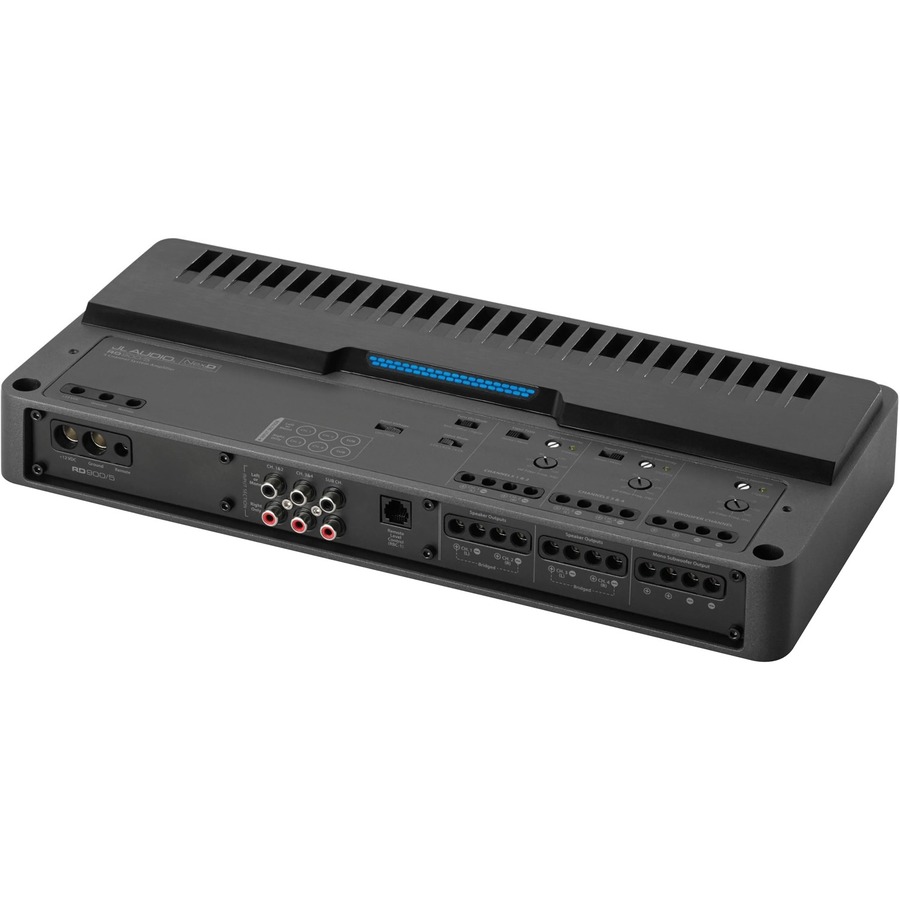

    JL Audio RD900/5

    1504

    JL Audio RD RD900/5 Car Amplifier - 400 W RMS - 800 W PMPO - 4.1 Channel - Class D - Black

    Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 70W @ 4 Ohm - 4 x 100W @ 2 Ohm - 2 x 200W Bridged Power @ 4 Ohm

    SKU: RD900/5
    $699.99 Or Less!
    Available In Store OnlyAdditional discounts based on product condition
    Deal Image

    JL Audio RD RD900/5 Car Amplifier - 400 W RMS - 800 W PMPO - 4.1 Channel - Class D - Black - Bridgeable - 4 Ohm - 12 Hz to 22 kHz - MOSFET Power Supply - 4 x 70W @ 4 Ohm - 4 x 100W @ 2 Ohm - 2 x 200W Bridged Power @ 4 Ohm

    5-Channel Class D System Amplifier, 70 W x 4 @ 4 ? + 500 W x 1 @ 2 ? - 14.4V

    Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.

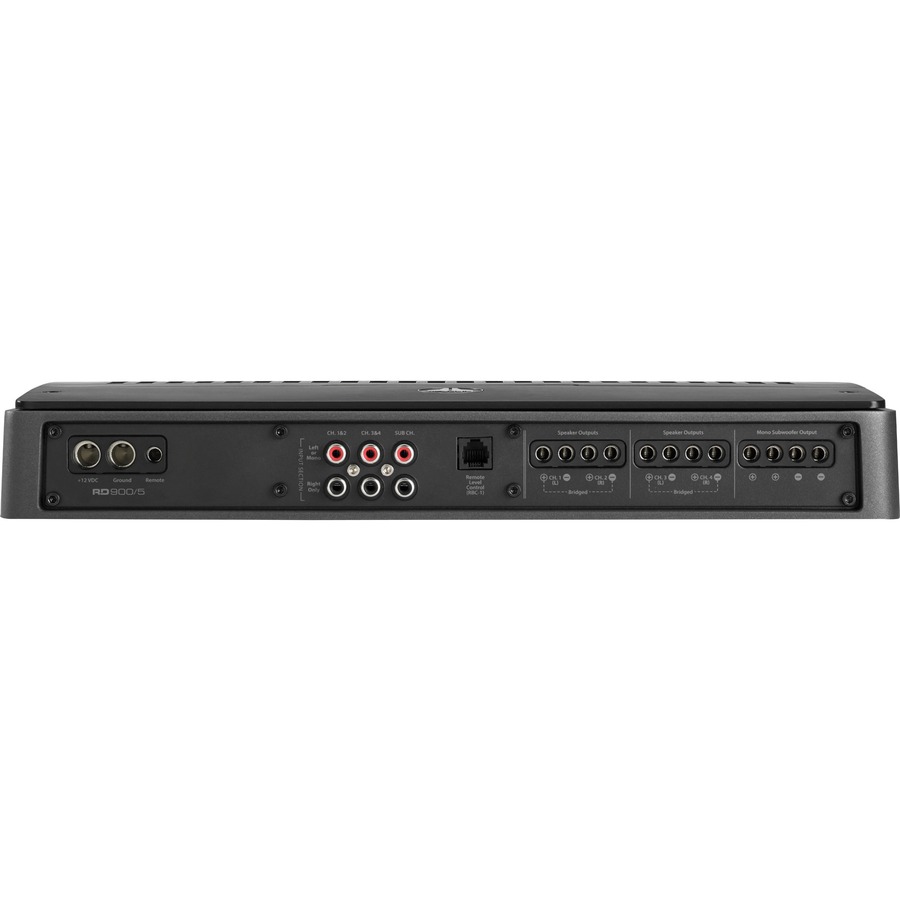

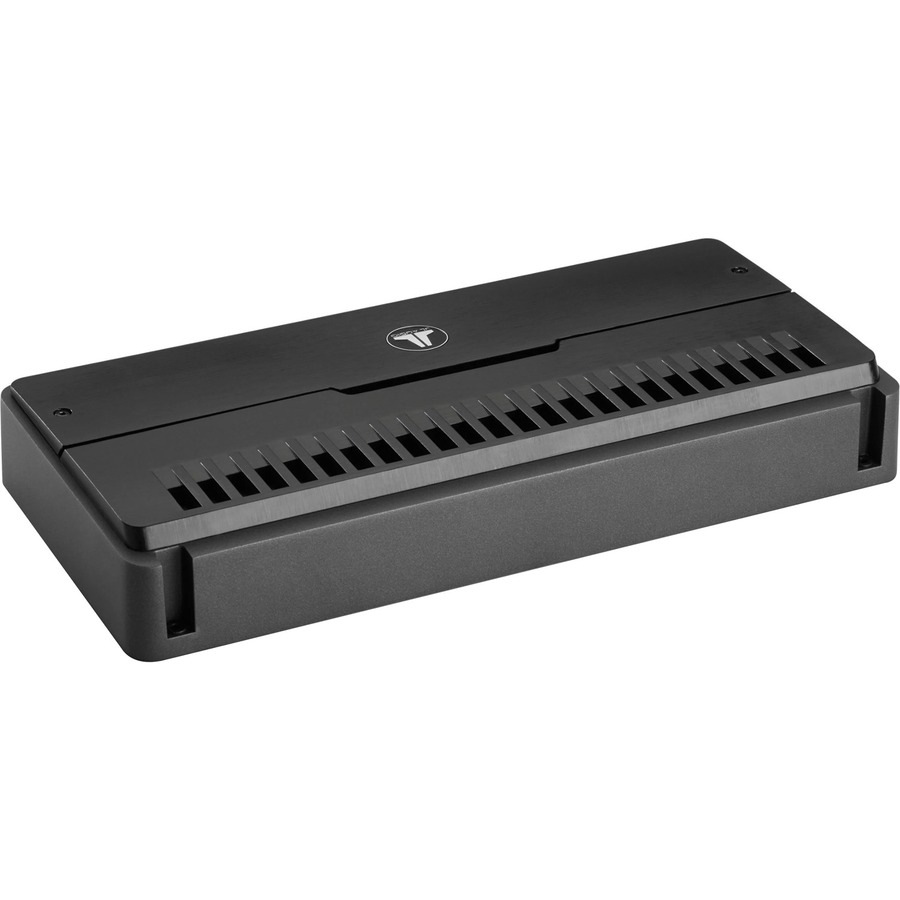

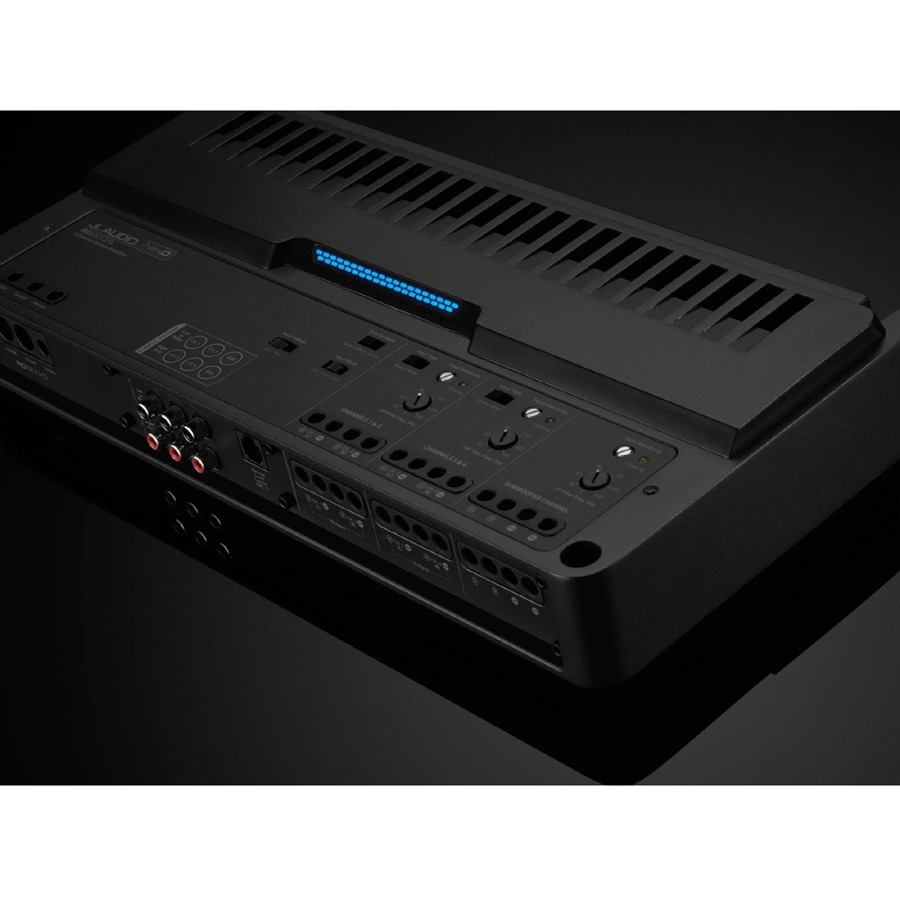

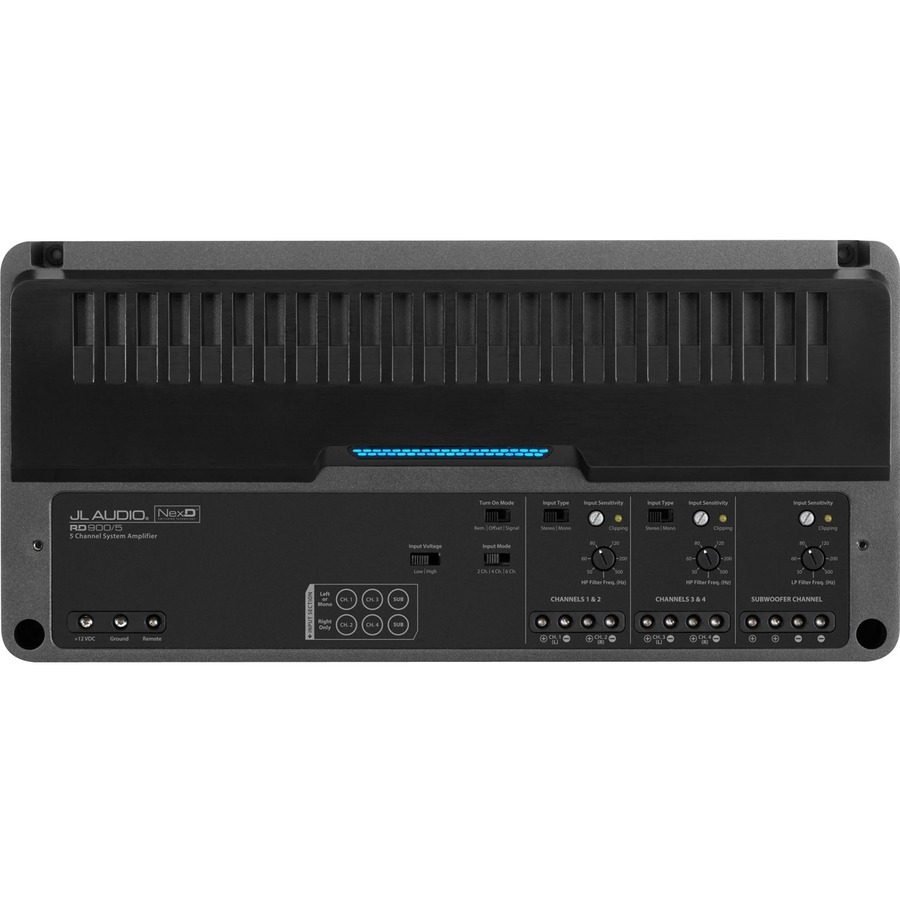

    Conveniently located on top of the RD900/5, you'll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.

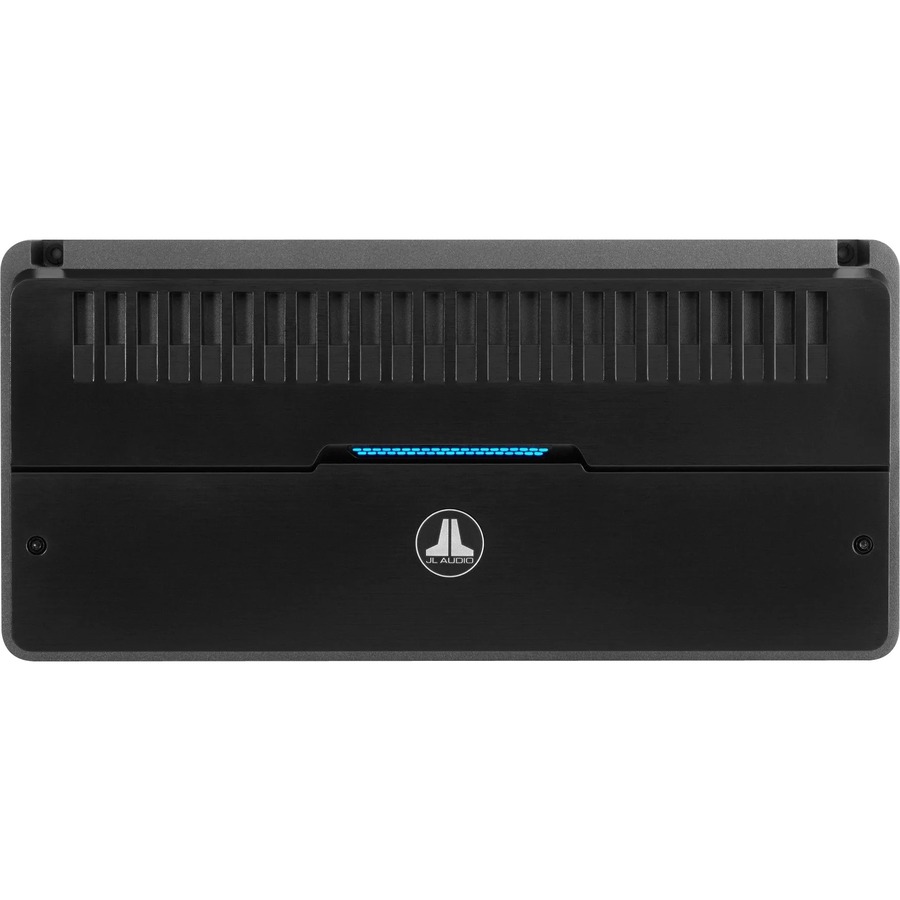

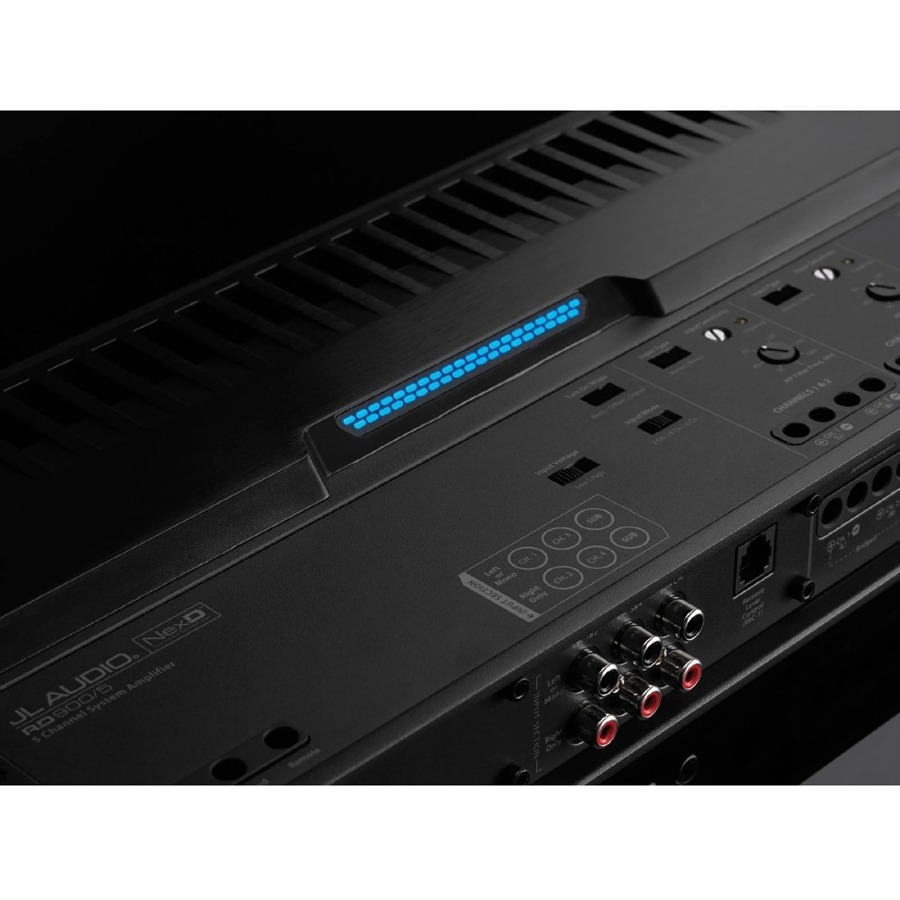

    LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier's input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer's output remotely from the driver's seat.


    Products specifications
    Physical Characteristics
    Product ColorBlack
    Height2.1"
    Width14.6"
    Depth7"
    Weight (Approximate)6.15 lb
    Technical Information
    Audio Channels4.1
    BridgeableYes
    Bass BoostVariable
    Impedance4 Ohm
    Rated Power @ 2 Ohm4 x 100W
    Rated Power @ 4 Ohm4 x 70W
    Bridged Power @ 4 Ohm2 x 200W
    RCA Input(s)5-Channel
    RMS Output Power400 W
    PMPO Output Power800 W
    Minimum Frequency Response12 Hz
    Maximum Frequency Response22 kHz
    High Pass CrossoverVariable
    Low Pass CrossoverVariable
    Speaker Level InputYes
    Preamp OutputYes
    Warranty
    Limited Warranty2 Year
    Power Description
    Power SupplyMOSFET
