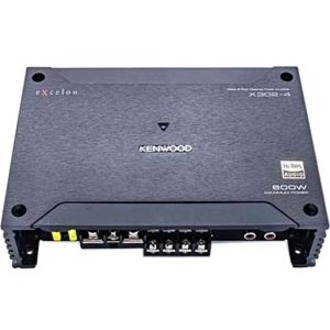

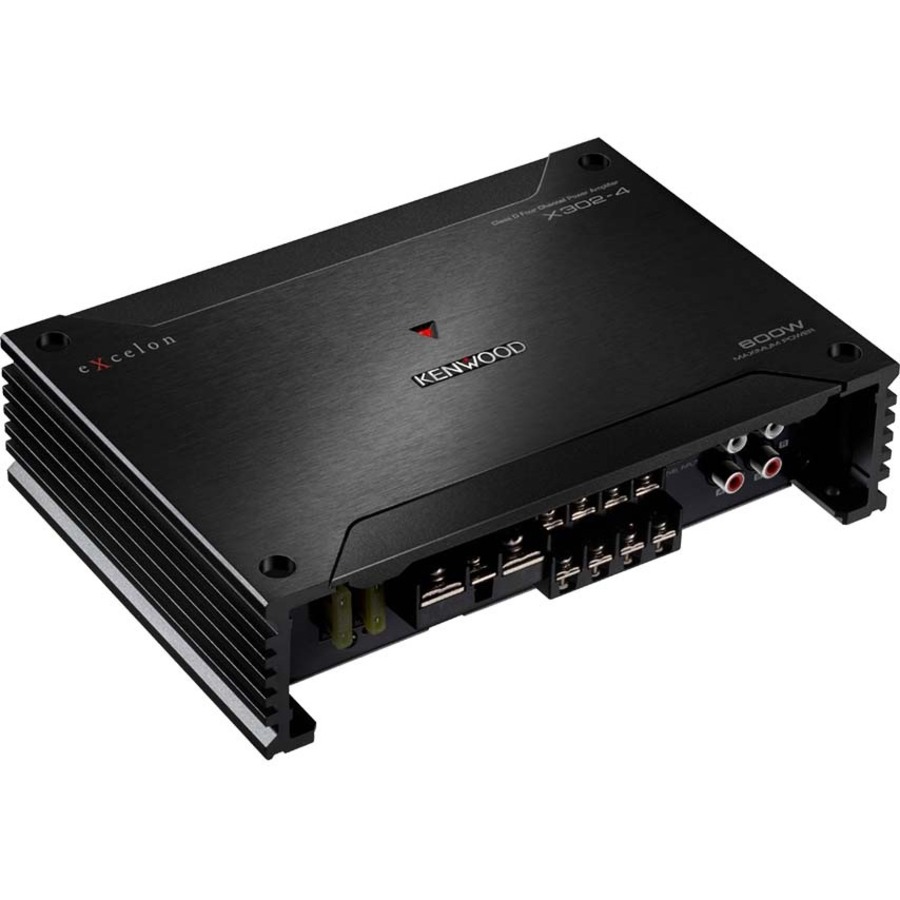

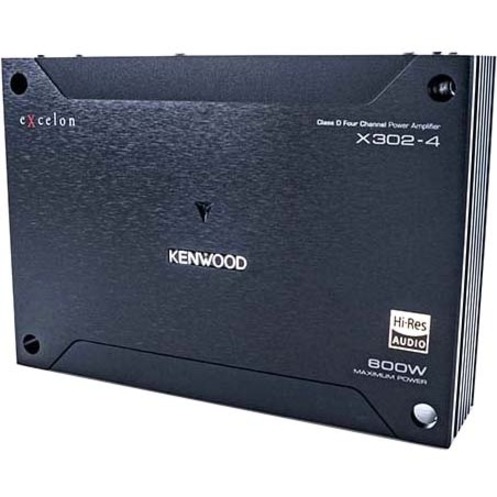

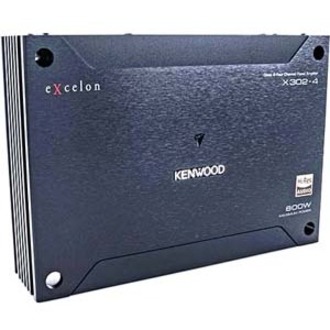

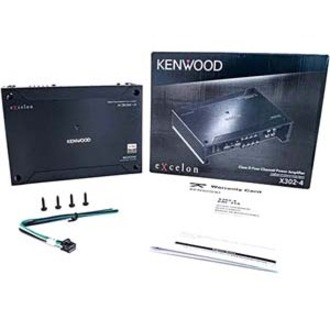

Kenwood X302-4

Call for best price
Class D Mono 4-Channel Power Amplifier
CTA-2006 Primary RatingsPower Output 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio 85dBA (Reference: 1Watt into 4Ohms)
Maximum Power OutputMAX POWER 600W
Rated Power Output at 14.4VA/B (4 Ohms) 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms) 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
SUB (4 Ohms) -
SUB (2 Ohms) -
A/B (Bridged 4Ohms) 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
SpecificationsSignal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-50kHz (+0dB, -3dB)
Frequency Response -
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged Connection 4Ω to 8Ω allowable

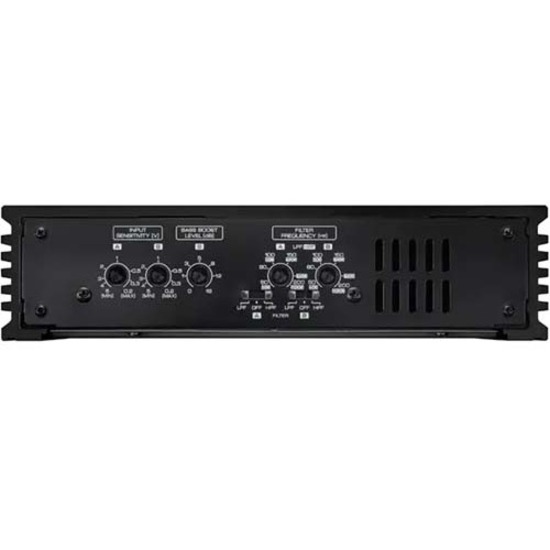

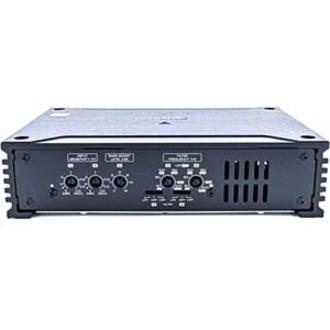

Audio SectionLow-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
High-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Bass Boost 40Hz, 0dB - +18dB (Bch)
Infrasonic Filter -
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]

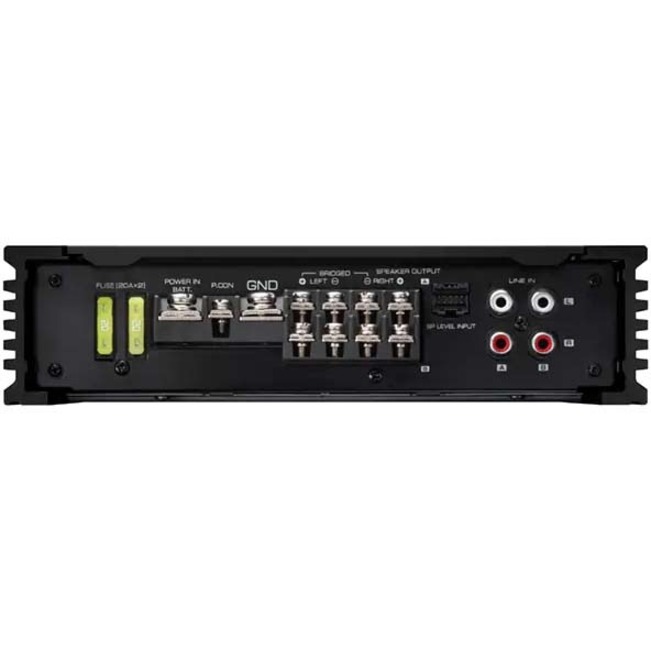

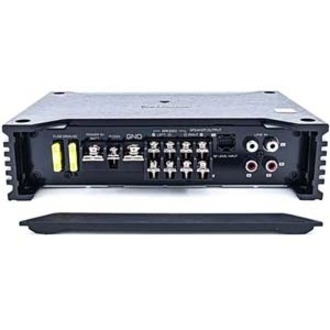

TerminalsBattery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
GeneralDimensions(WxHxD) (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Dimensions(WxHxD) (W) 213cm x (H) 53cm x (D) 149cm
Weight 3.1 lbs ( 1.4 kg)
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 20[A]
Key Features High-Res Audio Compliant
CTA-2006 Compliant
2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Accessorries Signal Sensing Turn-On

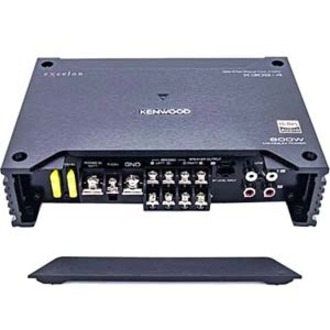

Terminal Cover
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
