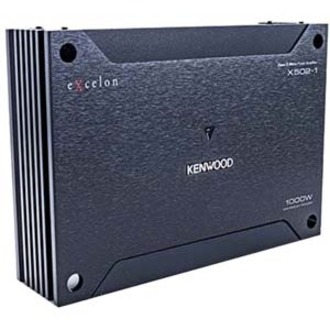

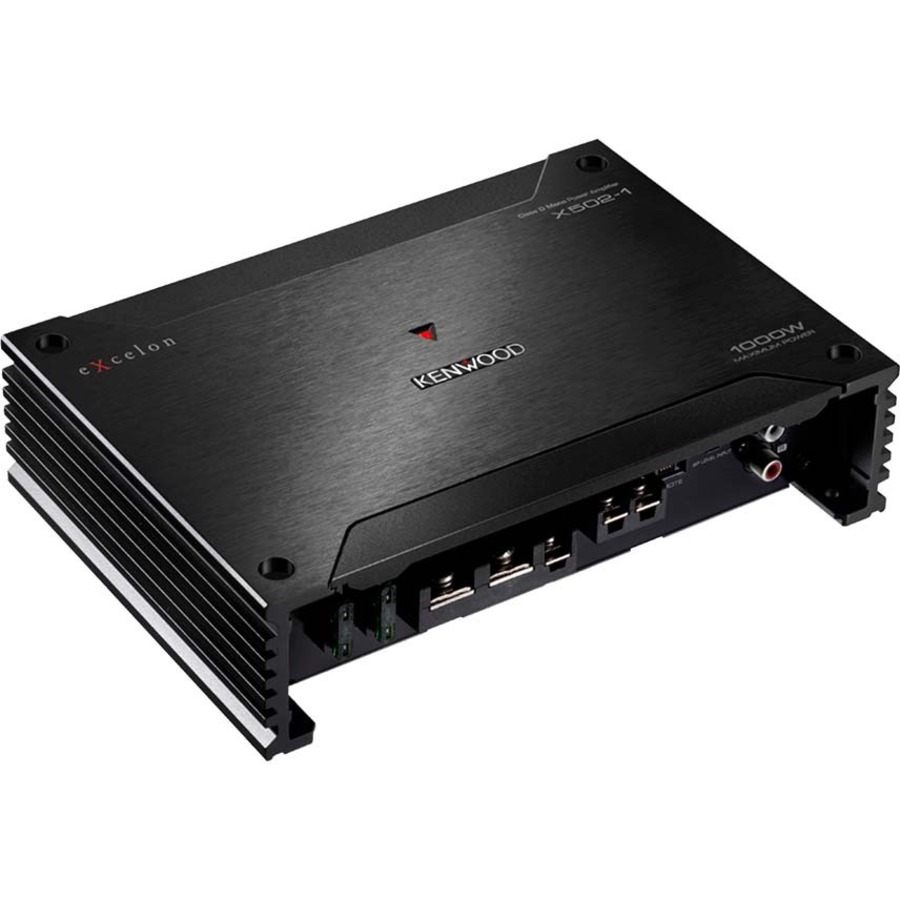

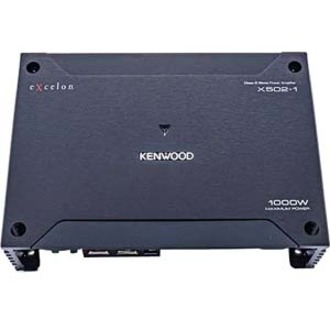

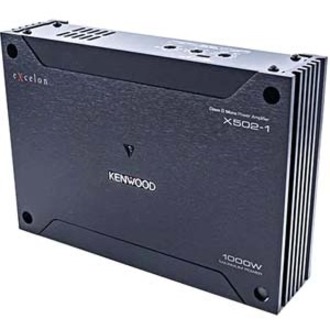

Kenwood X502-1

Call for best price
Class D Mono Power Amplifier
CTA-2006 Primary RatingsPower Output 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio 85dBA (Reference: 1Watt into 4Ohms)
Maximum Power OutputMAX POWER 1000W
Rated Power Output at 14.4VA/B (4 Ohms) -
A/B (2 Ohms) -
SUB (4 Ohms) 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms) 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms) -
SpecificationsSignal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Frequency Response -
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged Connection -

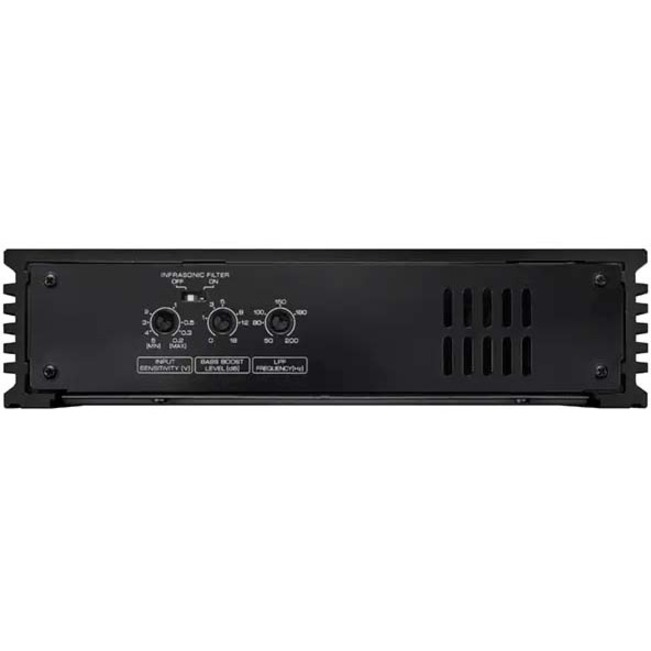

Audio SectionLow-Pass Filter 50Hz-200Hz, -24dB/oct
High-Pass Filter -
Bass Boost 40Hz, 0dB - +18dB
Infrasonic Filter 25Hz, -24dB
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]

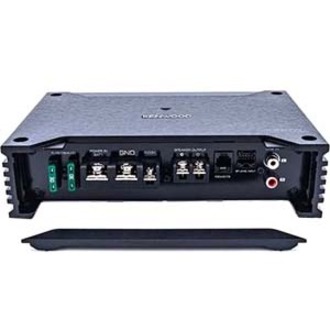

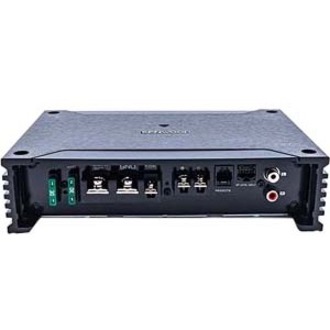

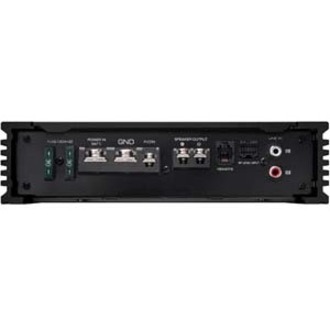

TerminalsBattery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
GeneralDimensions(WxHxD) (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Dimensions(WxHxD) (W) 213cm x (H) 53cm x (D) 149cm
Weight 3.3 lbs ( 1.5kg)
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 25 [A]
Key Features CTA-2006 Compliant
2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Signal Sensing Turn-On

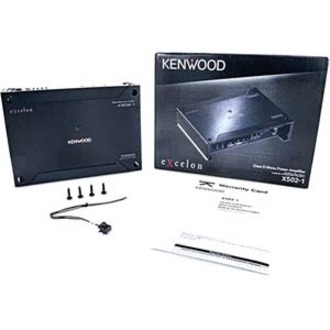

Accessorries Remote Level Control Ready ( Optional KCA-RC01A)
Terminal Cover
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
