Rockford Fosgate M5-1500X5

1672

Rockford Fosgate M5 M5-1500X5 Marine Amplifier - 1500 rated power RMS - 5 Channel - Class AD, Class BD

Bridgeable - 4 Ohm - 1% THD - 10 Hz to 50 kHz - MOSFET Power Supply - 4 x 100W, 1 x 400 rated power @ 4 Ohm - 4 x 100W, 1 x 600 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm

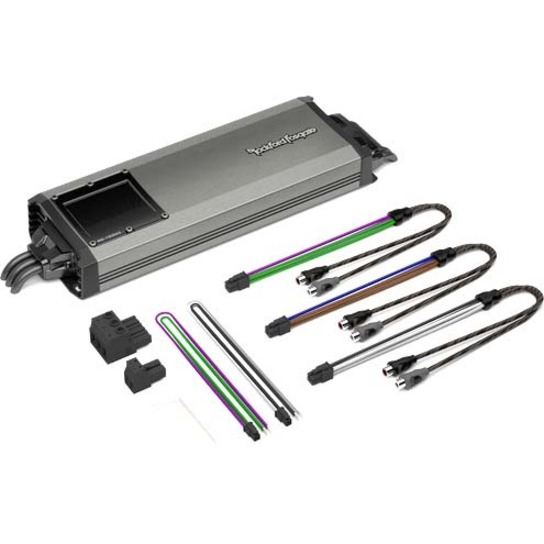

Element Ready™ design with integrated harness & panel seals

PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits

Play all day, easy to integrate, and keep music playing for extended lengths of time

C.L.E.A.N. input/output clip detection and indicator LEDs

Constant Power provides instantaneous delivery of output over varying impedance loads

Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

OEM and aftermarket radio integration inputs

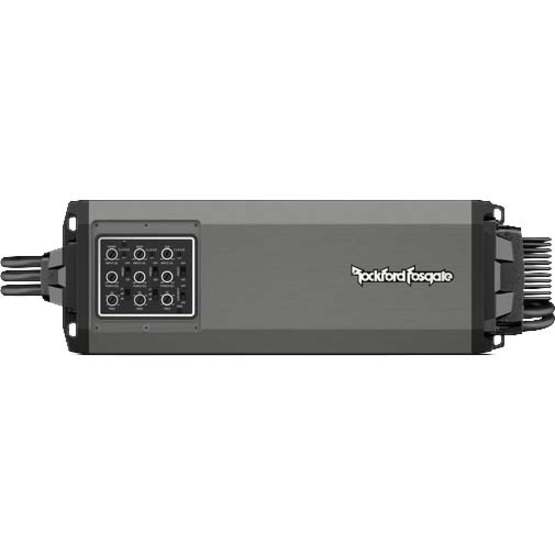

Top mounted control panel with Element Ready™ smoked lens cover

Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)

Low Impedance Stability

Proprietary Class-AD technology allows amplifier to produce more power with less current draw

Class-BD technology provides 75-80% efficiency over traditional class A/B designs

Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk

MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span

Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise

Balanced Differential Inputs eliminates noise picked up by signal cables

Remote-Out feature when using high level inputs

2-Year Warranty

SKU: M5-1500X5

$929.95 Or Less!

Available In Store OnlyAdditional discounts based on product condition

FedEx Shipping

Pick Up In-Store

Zipcode:

Free shipping

Overview
Specifications
Reviews

Rockford Fosgate M5 M5-1500X5 Marine Amplifier - 1500 rated power RMS - 5 Channel - Class AD, Class BD - Bridgeable - 4 Ohm - 1% THD - 10 Hz to 50 kHz - MOSFET Power Supply - 4 x 100W, 1 x 400 rated power @ 4 Ohm - 4 x 100W, 1 x 600 rated power @ 2 Ohm - 2 x 200 rated power Bridged Power @ 4 Ohm

Serious marine sound, made simple. The M5 amplifiers feature the next level of Element Ready™ design from Rockford Fosgate that's built as rugged as the outdoor environment it's used in.

Features & Benefits:

Element Ready™: Purpose Built for the Marine Environment, Rockford's Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your amplifiers stand the test of time.

C.L.E.A.N.: Our Patented circuit with input and output clip indicators help match the source unit to the amplifier, which makes for easy set-up and optimizes musical output.

P.O.W.E.R. Supply: The unique P.O.W.E.R. supply continues to generate more than rated power as the voltage increases, giving you the output, you demand.

Products specifications

Physical Characteristics
Height	1.7"
Width	4.3"
Depth	12.3"
Technical Information
Audio Channels	5
Bridgeable	Yes
Impedance	4 Ohm
Total Harmonic Distortion (THD)	1%
Rated Power @ 2 Ohm	4 x 100W, 1 x 600W
Rated Power @ 4 Ohm	4 x 100W, 1 x 400W
Bridged Power @ 4 Ohm	2 x 200W
RCA Input(s)	5-Channel
RMS Output Power	1500 Rated Power
Minimum Frequency Response	10 Hz
Maximum Frequency Response	50 kHz
High Pass Crossover	Variable
Low Pass Crossover	Variable
Speaker Level Input	Yes
Preamp Output	Yes
Warranty
Limited Warranty	2 Year
Power Description
Power Supply	MOSFET
