Manufacturer: Rockford Fosgate

Rockford Fosgate P1V2-3

7348

Rockford Fosgate – Punch P1 3.5” 3-Way Coaxial Speaker

  • · 3.5" 3-way coaxial speakers for upgrading basic OEM single-speaker systems
  • · 3/4" Tetolon® inverted dome tweeter and 3/8" piezo super tweeter for enhanced clarity
  • · Mica reinforced polypropylene cone and Santoprene™ surround for durability and clean sound
  • · ICC+ internal crossover with included bass blockers for balanced performance
  • · Includes speakers, OEM adaptors, bass blockers, and installation hardware
SKU: P1V2-3
$179.99 Or Less!
Free shipping

The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.

Kit Includes:

• (2) 3.5" 4Ω Coaxial Speakers
• (2) Bass Blockers
• (4) OEM Adaptors
• Installation Hardware

Features:

  • Updated mounting flanges for direct fitment in new vehicles
  • 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
  • 3/8” (9 mm) Polypropylene piezo super tweeter for enhanced high-frequency response
  • 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
  • Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
  • Co-molded surround and cone body chemically bonded for high durability
  • Fatigue and tear resistant linear Nomex® spider
  • Ultra-flexible braded tinsel leads securely stitched to spider
  • 15% glass-fiber reinforced PA66 injected molded composite basket
  • Vented Kapton® voice coil former for excellent heat dissipation
  • Overhung voice coil ensures consistent magnetic flux for less speaker distortion
  • High strength Y35 ferrite motor structure (5mm larger over previous generation)
  • Co-molded basket terminals for secure connectivity
  • ICC+ internal concealed 6dB/octave crossover network
  • Includes external “bass blocker” 6dB/octave crossover
  • Includes installation adaptor plate
  • Includes mounting hardware
  • Includes cut-out template
  • Grilles sold separately
  • Sold in pairs (2 each)
  • 2-Year Warranty

Specs:

Speaker TypeCoaxial
Midrange Size (Nominal Diameter)3.5"
Tweeter Size (Nominal Diameter)3/4" (19 mm) Inverted Dome
Piezo Size (Nominal Diameter)3/8" (9 mm) Co-Witnessed Convex
Nominal Impedance
Frequency Response98Hz - 25kHz
Voice Coil Diameter1" (25.4 mm)
CrossoverTweeter High-Pass: 9kHz @ 6 dB/Octave
Midrange Bass Blocker: 1,200Hz @ 6 dB/Octave (33µF)
Power Handling (RMS)75 Watts
Power Handling (Peak)150 Watts
Fs (Resonant Frequency)130 Hz
Sensitivity (1W/1M)82 dB
Sensitivity (2.83V/1M)85 dB
Cutout Diameter2.87" (73 mm)
Rear-Loading Depth (Twist-Lock Adaptor)1.48" (37.7 mm)
Front-Loading Depth (Twist-Lock Adaptor)1.7" (43.3 mm)
Front Side Clearance0.53" (13.4 mm)
Removable Motor CoverNo
Grille / Trim Ring IncludedNo
Included in the Box(2) 3.5" 4Ω 3-Way Coaxial Speakers
(1) 3.5" Speaker Cutout Template

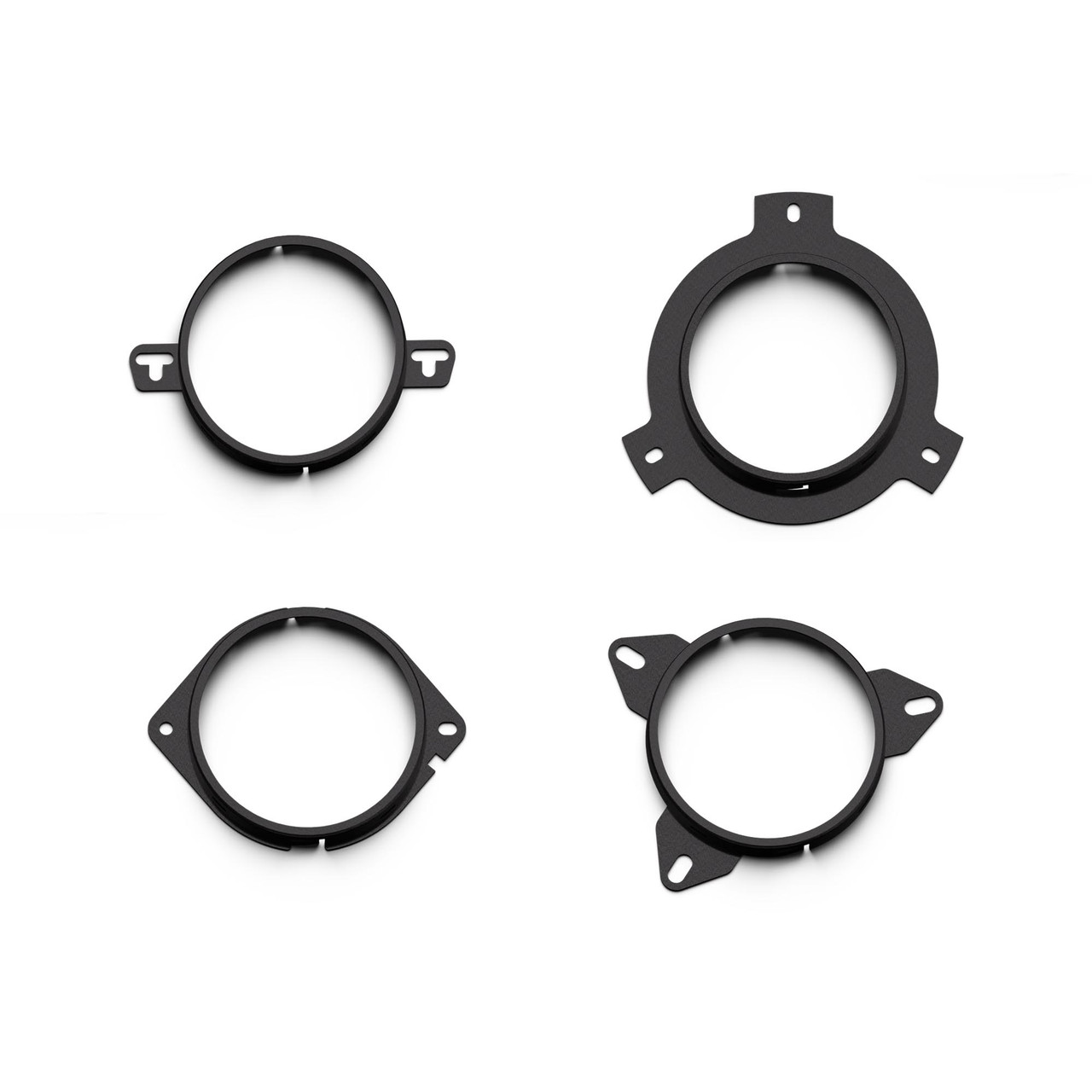

(2) 3.5" 2-Tab Twist-Lock Adaptors
(2) 3.5" 3-Tab Twist-Lock Adaptors
(2) 3.5" 3-Tab Wide Twist-Lock Adaptors
(2) 3.5" 2-Tab Wide Twist-Lock Adaptors
(2) 33µF Non-Polarized Capacitors (Bass-Blockers)
(6) Self-Tapping Phillips #8 x 32mm Screws (Speaker)
(2) 18 AWG Red/Black Speaker Wire (205 mm)
(3) 18 AWG (–) Female Crimp Spade Connectors (.187")
(3) 18 AWG (+) Female Crimp Spade Connectors (.250")
(6) 18 AWG Crimp Butt Connectors
Mounting HardwareYes
Products specifications
Physical Characteristics
Product ColorBlack
Product MaterialPlastic
