Manufacturer: Rockford Fosgate

Rockford Fosgate P2V2-TS

7351

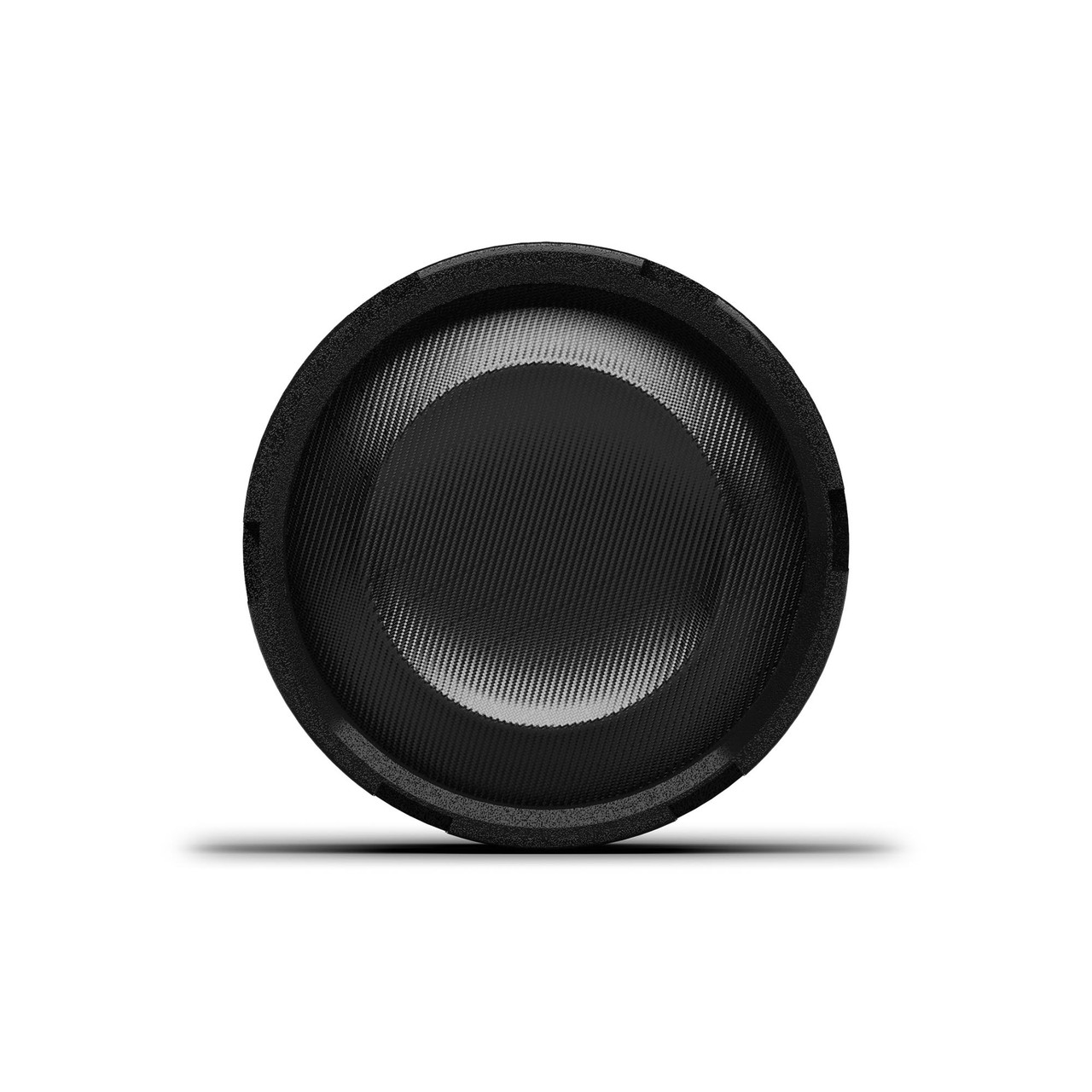

Rockford Fosgate – Punch P2 3/4” Inverted Dome Tweeters

  • · Convertible tweeter design for OEM upgrades or custom component systems
  • · 3/4" Tetolon® inverted dome tweeters for clear, detailed high frequencies
  • · External 12dB/octave crossover with selectable tweeter attenuation

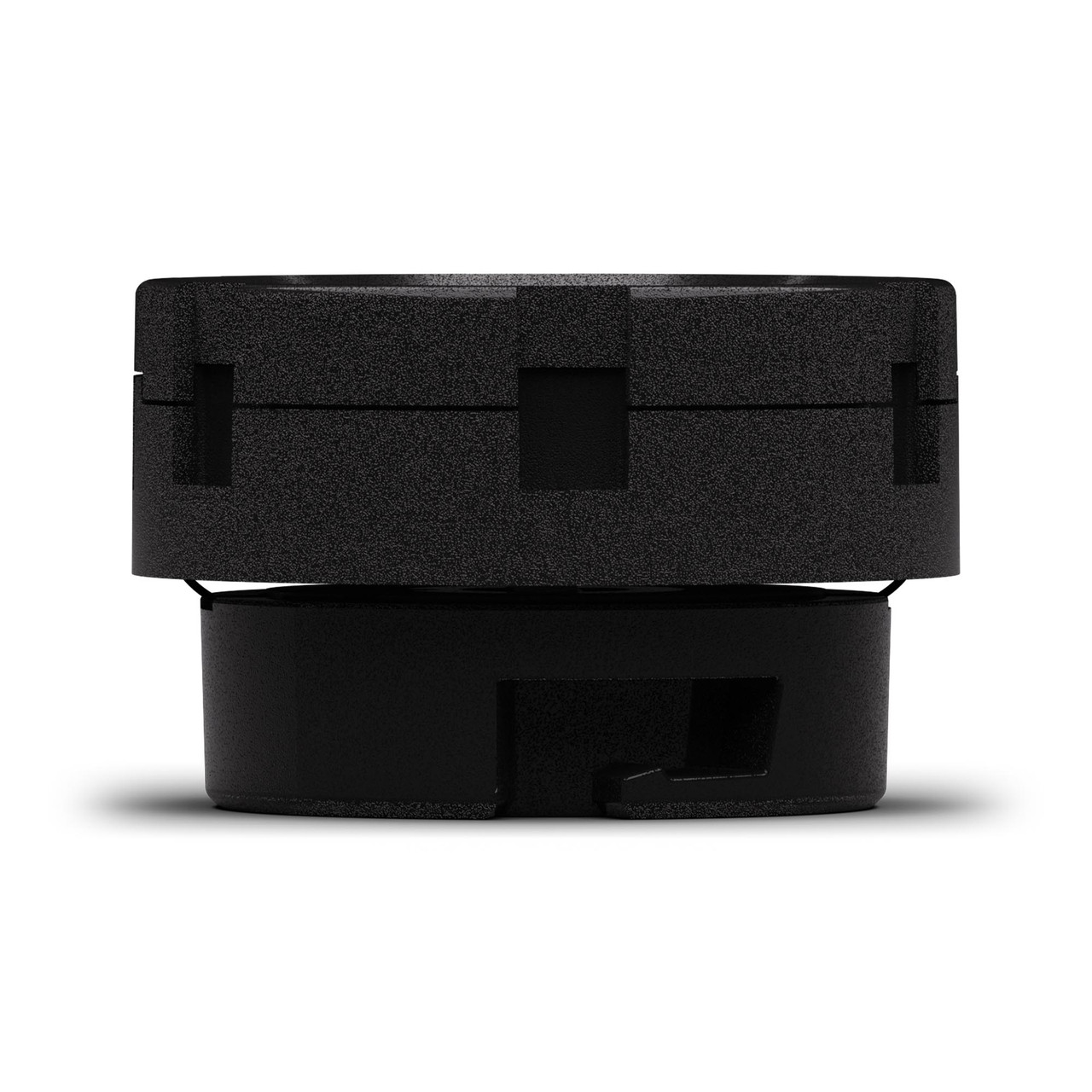

  • · Includes flush and surface mount cups for flexible installation
  • · Complete kit with tweeters, crossovers, mounting hardware, and accessories
SKU: P2V2-TS
$279.99 Or Less!
Free shipping

The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. Use the P2V2-TS as a fast drop-in or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.

Kit Includes:
• (2) 3/4" 4Ω Tweeters
• (2) Flush Mount Cups
• (2) Surface Mount Cups

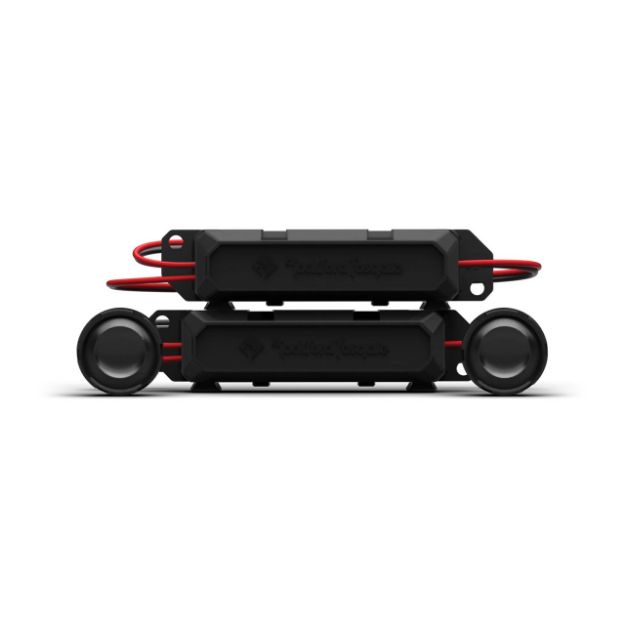

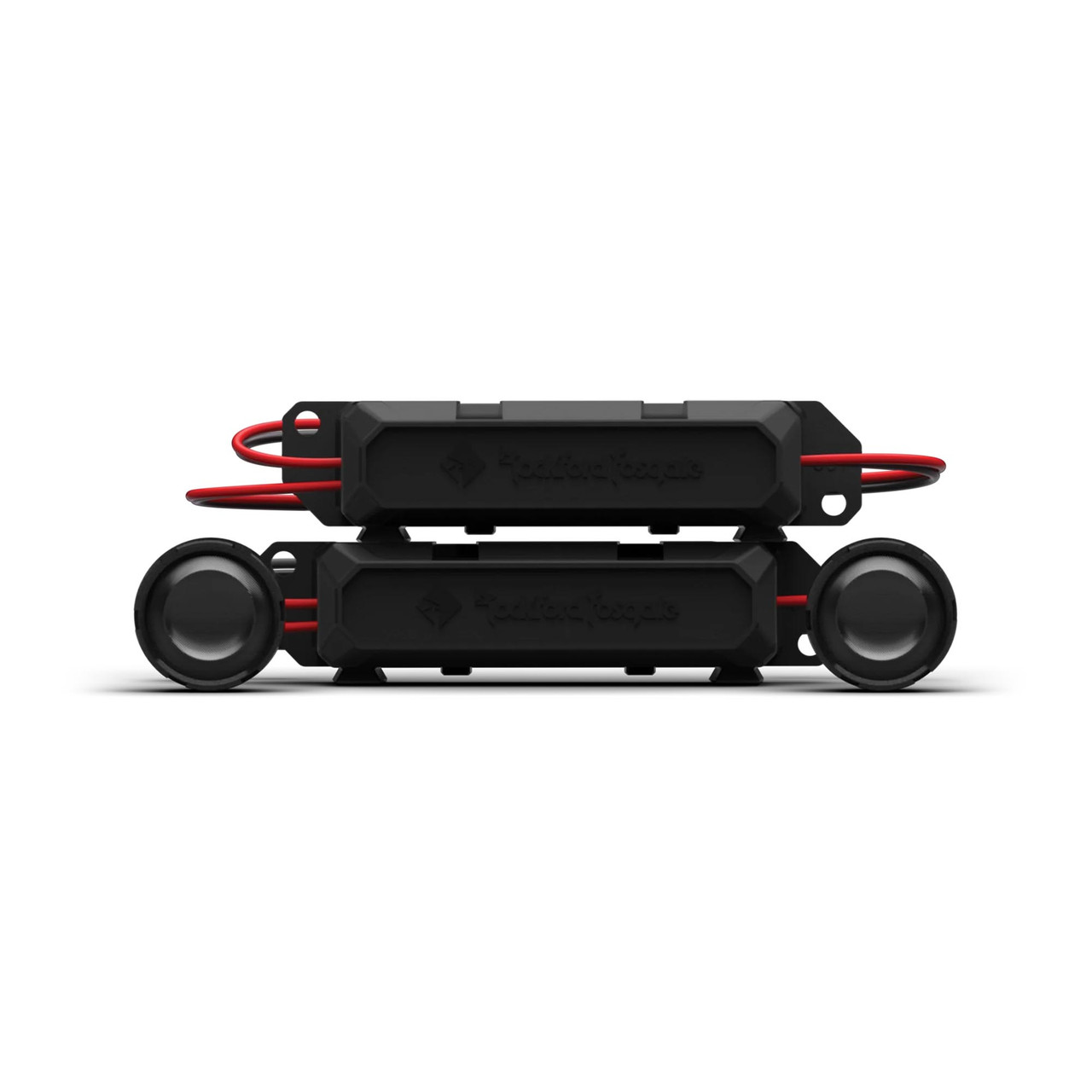

• (2) Crossovers

Features:

  • 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress

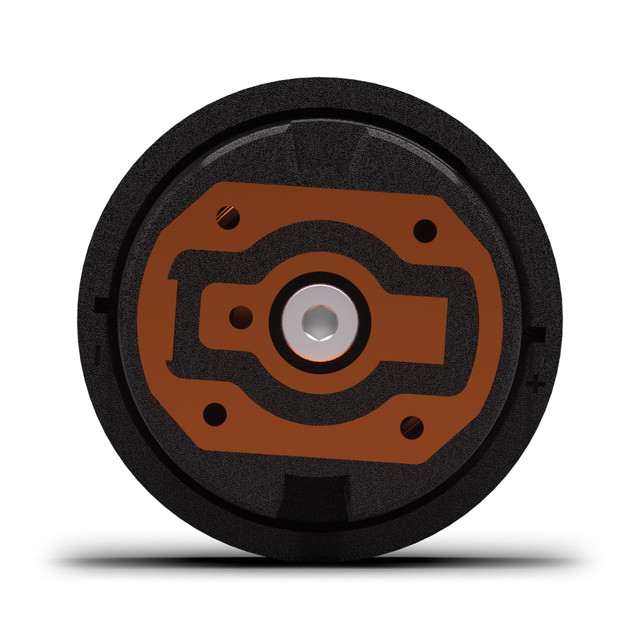

  • Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
  • Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout

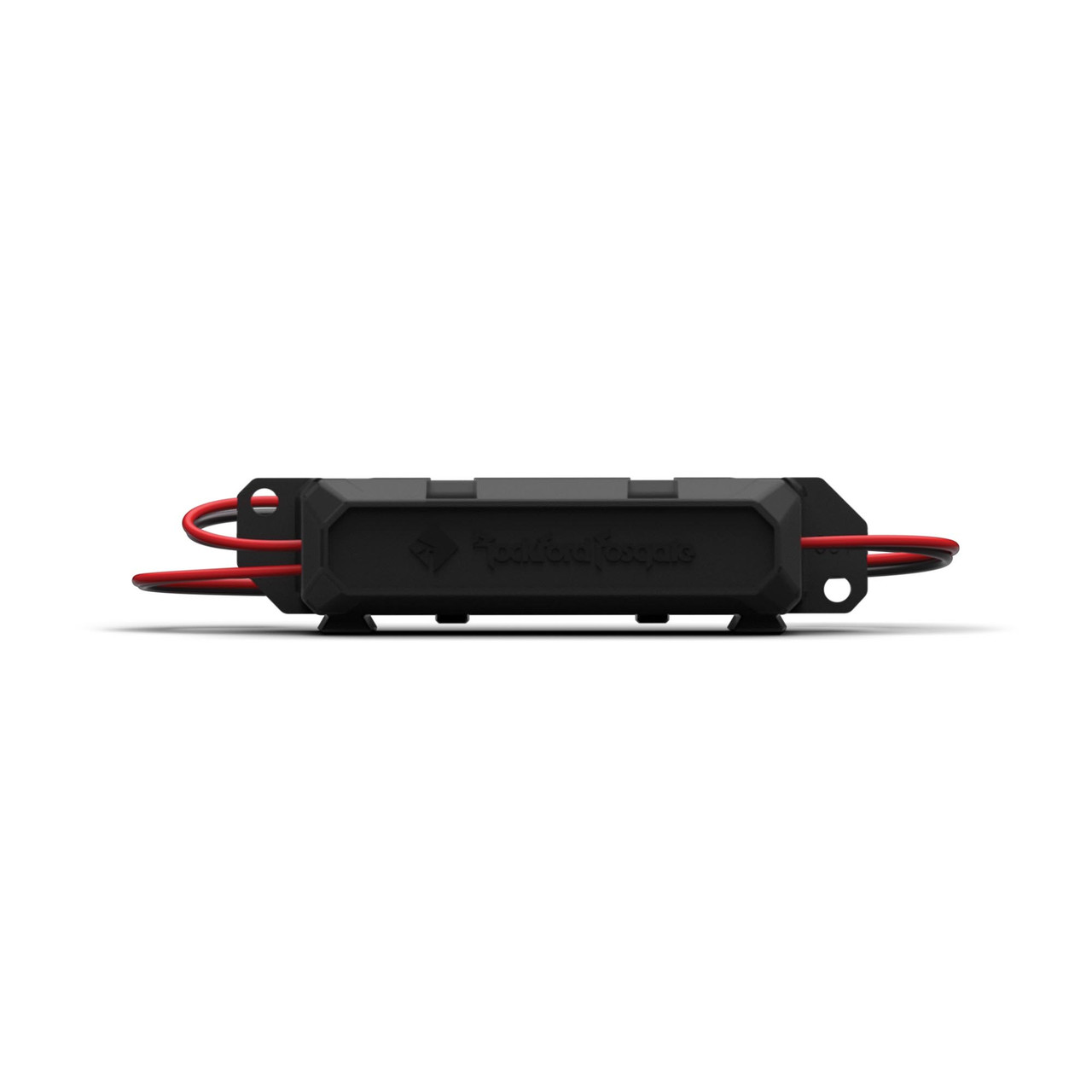

  • External 12dB/octave crossover
  • 2-pin micro-Molex crossover connection that are secured using screws or zip ties
  • Includes mounting hardware
  • Includes cut-out template
  • Sold in pairs (2 each)
  • 2-Year Warranty

Specs:

Speaker TypeConvertible
Midrange Size (Nominal Diameter)
Tweeter Size (Nominal Diameter)3/4" (19 mm)
Piezo Size (Nominal Diameter)
Nominal Impedance
Frequency Response3.5kHz - 25kHz
Voice Coil Diameter0.75" (19 mm)
CrossoverTweeter High-Pass: 9kHz @ 12dB/Octave
Tweeter Attenuation: 0dB or -3dB
Power Handling (RMS)75 Watts
Power Handling (Peak)150 Watts
Fs (Resonant Frequency)3.5 kHz
Sensitivity (1W/1M)90 dB
Sensitivity (2.83V/1M)93 dB
Mounting DiameterFlush Mount: 1.54" (39 mm)
Surface Mount: 1.22" (31.1 mm)
Mounting Depth (Flush)0.78" (19.9 mm)
Mounting Depth (Surface)0.57" (14.4 mm)
Front Side ClearanceFlush: 0.44" (11.2 mm)
Surface: 0.49" (12.4 mm)
Removable Motor CoverNo
Grille / Trim Ring IncludedYes
Included in the Box(2) 3/4" 4Ω Tweeters
(2) Flush-Mount Tweeter Cups
(2) Surface-Mount Tweeter Cups
(1) Tweeter Removal Tool
(2) Passive Crossover Networks (Tweeter)
(4) Self-Tapping Phillips #4 x 16mm Screws (Tweeter)
(4) Self-Tapping Phillips #8 x 20mm Screws (Crossover)
(2) 18" Crossover Wiring Extensions
(4) 18 AWG Crimp Butt Connectors
(4) Zip Ties 4.8 mm x 350 mm
Mounting HardwareNo
Shipping Weight1 lb (0.45 kg)
